Mineral Flotation Separator
The flotation machine separates minerals by exploiting differences in wettability, using foam and mechanical equipment. This equipment is essential for the flotation process, significantly impacting the flotation effect.
Technical Specifications
Product Overview

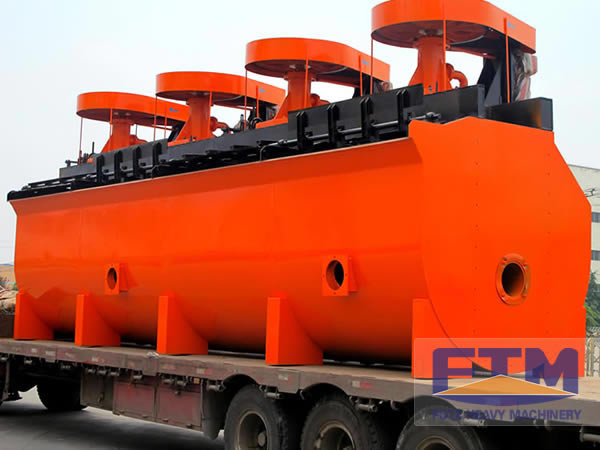

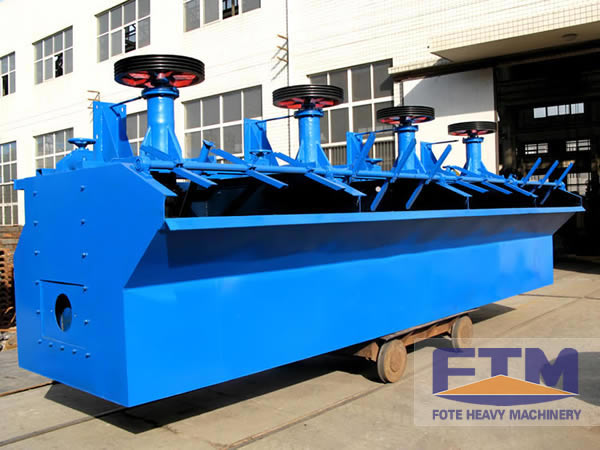

Mineral Flotation Separator
This mineral flotation separator is essential equipment for separating valuable mineral particles from gangue by exploiting differences in their surface wettability. The system utilizes a robust impeller-driven design to generate negative pressure, effectively mixing pulp with air and reagents to create mineralization foam. Designed for high efficiency, it allows operators to precisely control liquid levels and foam extraction, ensuring optimal mineral recovery across a wide range of ferrous and non-ferrous applications.
- Suitable Materials
- CopperZincLeadNickelGoldManganeseTitanic Iron OreApatiteFluoriteTalc
Operational Details
Performance Metrics
24 m³
Max Volume
24 m³/min
Max Capacity
45 kW
Max Power
Technical Specifications
Model Specifications
| Model | Volume (m³) | Capacity (m³/min) | Power (kW) | Weight (kg) |
|---|---|---|---|---|
| BF-0.37 | 0.37 | 0.2-0.4 | 1.5 | 470 |
| BF-0.65 | 0.65 | 0.3-0.7 | 3.0 | 932 |
| BF-1.2 | 1.2 | 0.6-1.2 | 5.5/4.0 | 1,370 |
| BF-2.0 | 2 | 1.0-2.0 | 7.5 | 1,750 |
| BF-2.8 | 2.8 | 1.4-3.0 | 11 | 2,130 |
| BF-4.0 | 4 | 2-4 | 15 | 2,585 |
| BF-6.0 | 6 | 3-6 | 18.5 | 3,300 |
| BF-8.0 | 8 | 4-8 | 22/30 | 4,130 |
| BF-10 | 10 | 5-10 | 22/30 | 4,660 |
| BF-16 | 16 | 8-16 | 37/45 | 8,320 |
| BF-20 | 20 | 10-20 | 37/45 | 8,670 |
| BF-24 | 24 | 12-24 | 45 | 8,970 |
