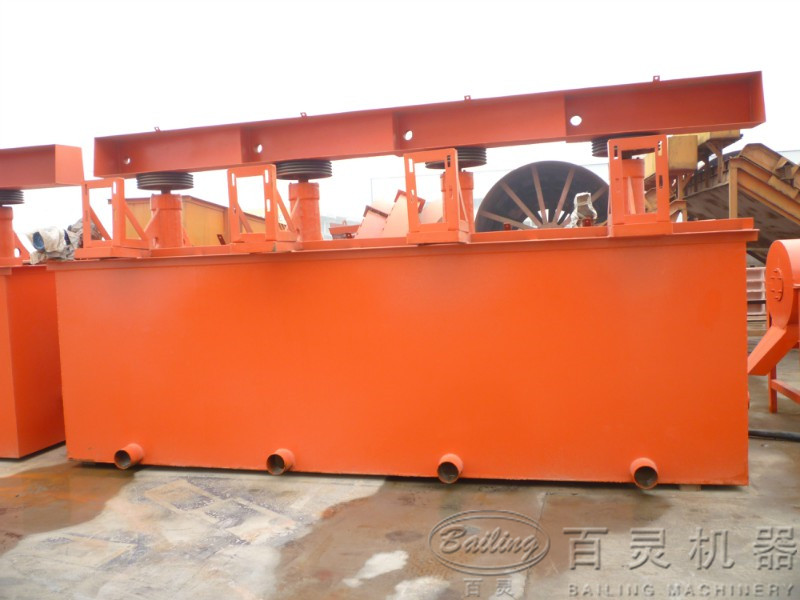

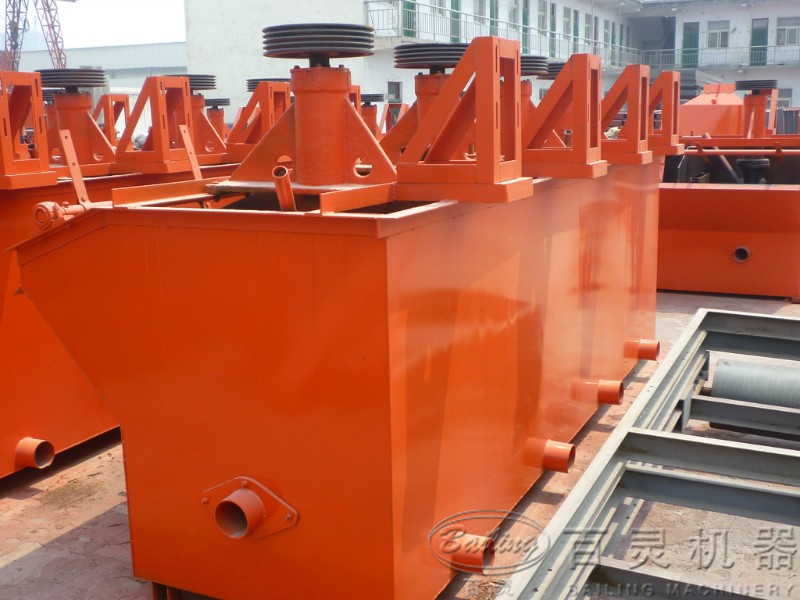

Mineral Flotation Separator
This flotation machine is used in different metal beneficiation lines within mining projects. It improves grade and recovery by separating valuable minerals from gangue.
Technical Specifications
Overview
Professional Mineral Flotation Separation
This industrial flotation machine is designed for the efficient separation of non-ferrous, ferrous, noble, and non-metallic minerals, as well as chemical materials. It utilizes a sophisticated process of mixing pulp and medicaments to create mineralized bubbles, which are then scraped from the surface to reclaim valuable ore. Featuring a robust design with closed double-section cone impellers, this equipment ensures strong down-circulation, low energy consumption, and reliable performance for roughing, scavenging, and fine separation tasks.
Key Features
Operational Advantages
- Closed double-section cone impeller for strong down-circulation
- Customized air inlet for reduced energy consumption
- Rotational ore pulp circulation to minimize coarse sand sediment
- Automatic and electric pulp level control for easy adjustment
- International standard quality construction
Technical Specifications
Performance Metrics
1 m³
Min Volume
8 m³
Max Volume
0.2 m³/min
Min Capacity
8 m³/min
Max Capacity
Model Specifications
| Model | Volume (m³) | Impeller Dia (mm) | Capacity (m³/min) | Weight (kg) |
|---|---|---|---|---|
| XCF-1 | 1 | 400 | 0.2-1 | 1,154 |
| XCF-2 | 2 | 450 | 0.2-1 | 1,659 |
| XCF-3 | 3 | 540 | 0.6-3 | 2,259 |
| XCF-4 | 4 | 620 | 1.2-4 | 2,669 |
| XCF-8 | 8 | 720 | 2-8 | 3,668 |
Applications
- Suitable Processes
- RoughingScavengingSelectionReverse Flotation
- Compatible Materials
- Non-ferrous metalFerrous metalNoble metalNon-metallic mineChemical material
