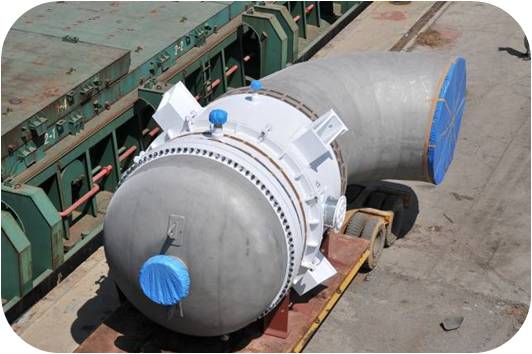

Methylene Diphenyl Diisocyanate Reboiler
This reboiler facilitates the vaporization of MDI liquid through efficient heat transfer. It is designed for distillation and stripping processes within refineries to separate and purify chemical components.
Technical Specifications
Overview
Industrial MDI Reboiler
This Methylene Diphenyl Diisocyanate (MDI) Reboiler is a critical industrial component designed specifically for petrochemical engineering and refinery processes. It features robust shell and tube construction optimized for high-temperature and high-pressure heat transfer. Engineered for reliability, this unit ensures efficient vaporization of chemical intermediates while maintaining operational integrity in demanding environments.
Technical Specifications
Operational Metrics
3.5 Mpa
Design Pressure (Tube Side)
0.5 Mpa
Design Pressure (Shell Side)
300 ℃
Design Temperature
Construction & Materials
Material Composition
| Component | Material Specification |
|---|---|
| Main Body | SA516.70 Normalizing |
| Tube Sheet | SA266Gr.2 surfacing 316L |
| Pipe Pass | SA213TP316L |
Physical Dimensions
Dimensions and Weight
- Overall Size: Ф3400 × 54 × ~10000 mm
- Heat Exchange Tube: Ф76 × 4.5 mm
- Total Weight: 81 Tonnes
