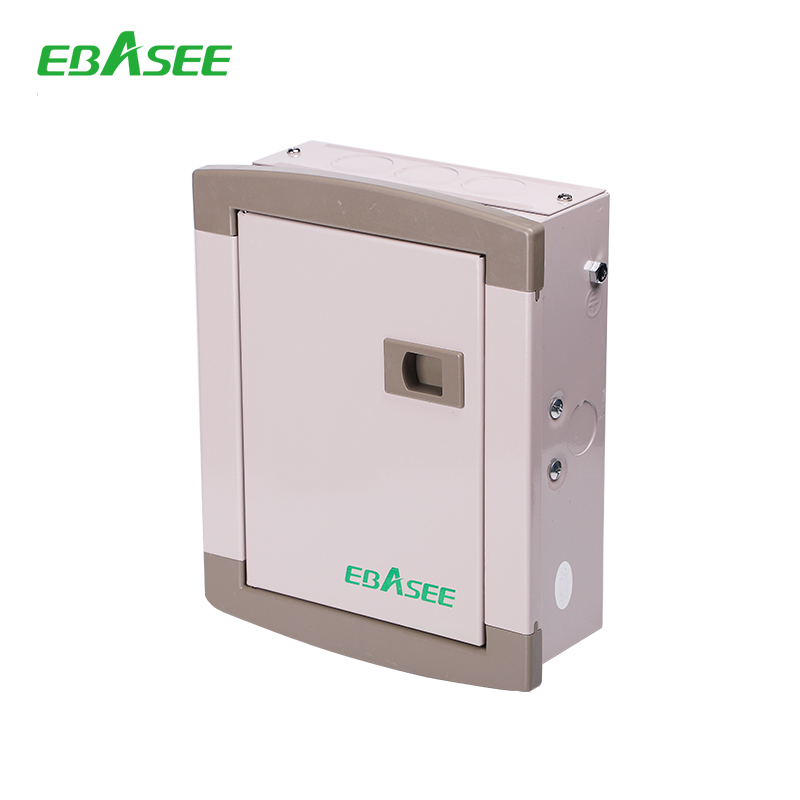

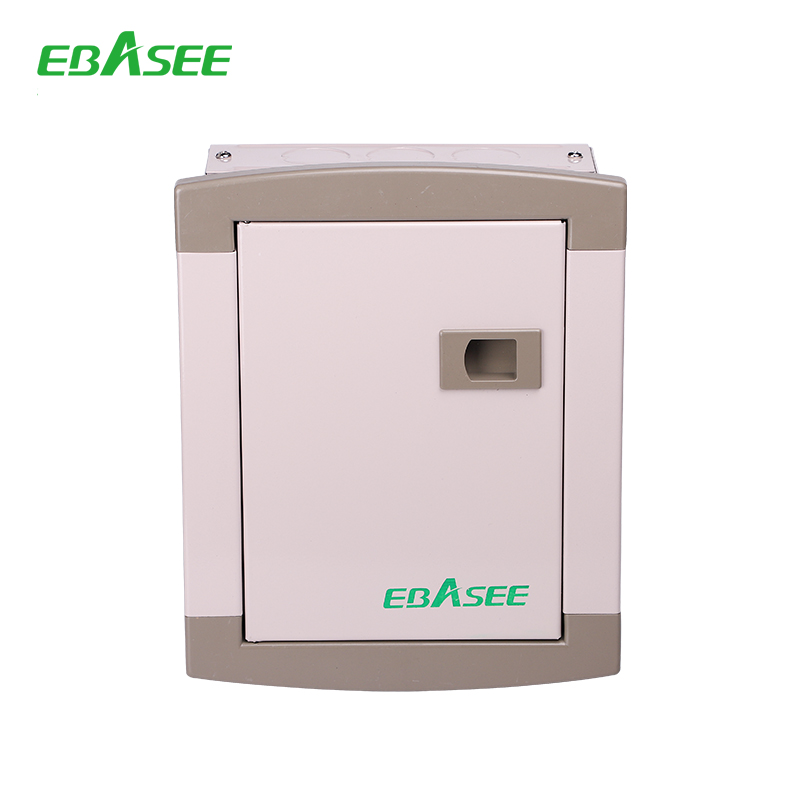

Metal Power Distribution Box for African Markets
This metal power distribution box is designed for power distribution in African markets. Constructed from durable metal, the enclosure provides secure housing for electrical components, ensuring safety and reliability.
Technical Specifications
Product Overview
Robust Power Distribution for African Markets
The EBST2 series is a high-quality metal distribution box specifically engineered for reliable power transmission and distribution in residential, commercial, and industrial settings. Constructed from 1mm thick high-quality metal with a durable powder coating, these enclosures provide superior protection against environmental factors and physical damage. The design features a safety lock, versatile wiring holes, and a hinged door with a recessed handle to ensure secure and easy maintenance.
Key Features

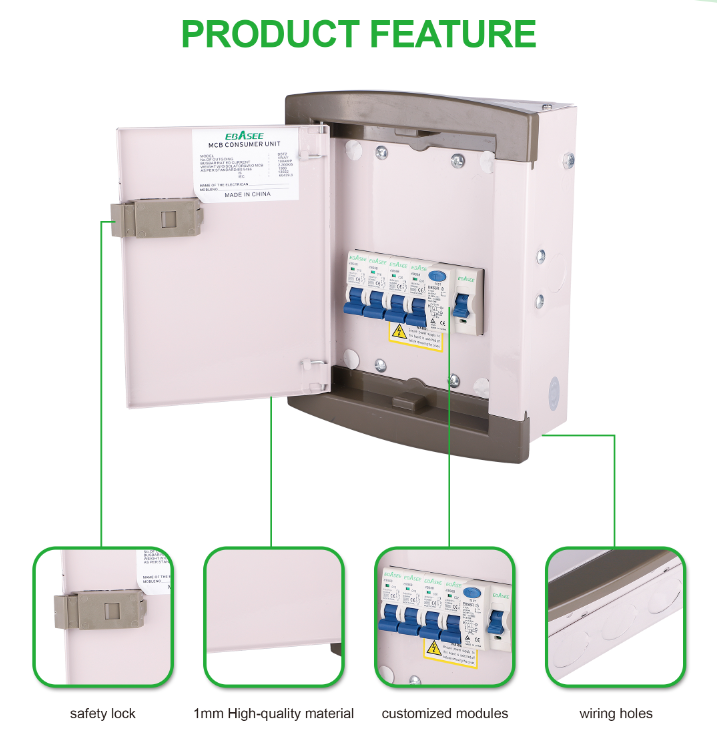

Design Highlights
- Safety lock mechanism for secure access
- 1mm high-quality metal sheet thickness
- Customized modules supported
- Pre-drilled wiring holes for easy installation
- Hinged door with recessed handle
- Performance Upgrades
- RainproofDustproofAnti-collisionAnti-rustAnti-corrosionVentilation CoolingWithstand Voltage
Single Phase Specifications
Single Phase Model Range
| Model | Ways | Width (W) mm | Dim A (mm) | Dim B (mm) |
|---|---|---|---|---|
| EBST2-S4 | 4 | 197 | 175 | 125 |
| EBST2-S6 | 6 | 233 | 211 | 151 |
| EBST2-S8 | 8 | 269 | 247 | 187 |
| EBST2-S12 | 12 | 341 | 319 | 269 |
| EBST2-S16 | 16 | 413 | 391 | 341 |
Three Phase Specifications
Three Phase Model Range
| Model | Ways | Width (W) mm | Dim A (mm) | Dim B (mm) |
|---|---|---|---|---|
| EBST2-T4 | 4 | 269 | 251 | 196 |
| EBST2-T6 | 6 | 341 | 323 | 268 |
| EBST2-T8 | 8 | 413 | 395 | 340 |
| EBST2-T12 | 12 | 552 | 534 | 479 |
Quality & Testing

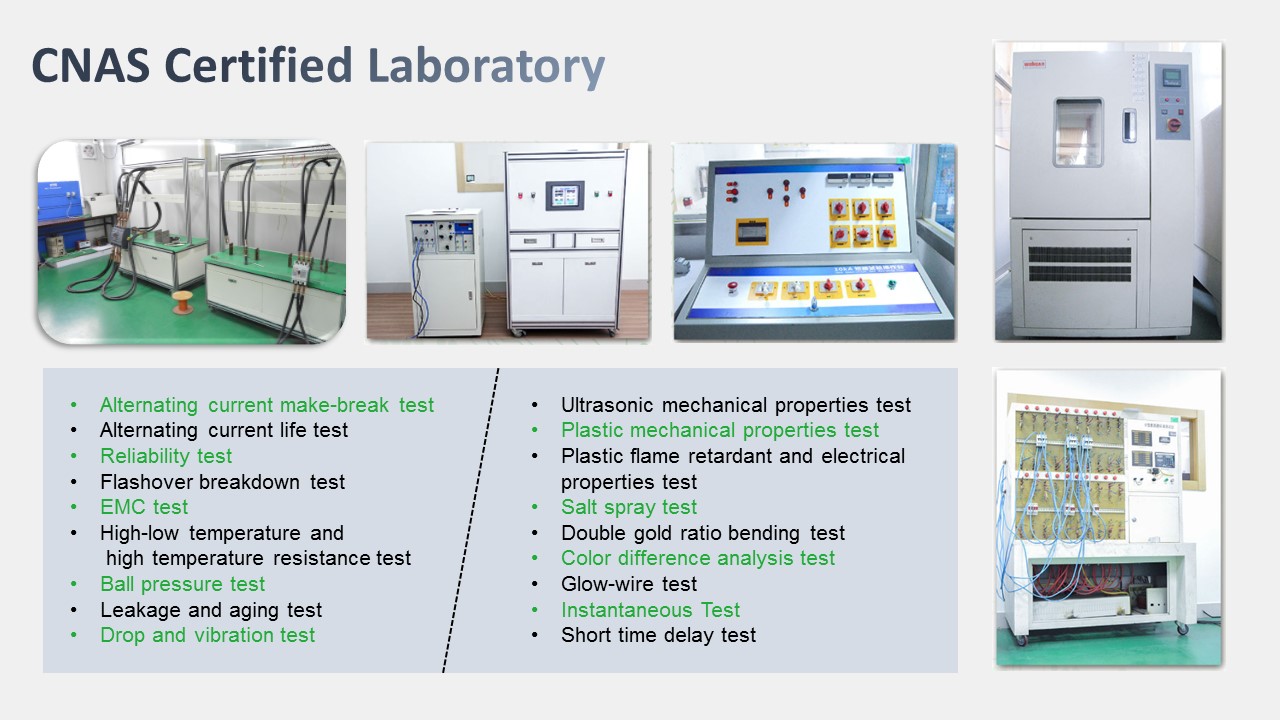

Laboratory Testing Capabilities
- Alternating current make-break and life tests
- High-low temperature resistance testing
- Salt spray corrosion testing
- Drop and vibration resistance
- Glow-wire and flame retardant testing
- EMC and reliability testing
Service & Support
Support Services
MaintenanceTechnical SupportMarketing SupportCustomization
