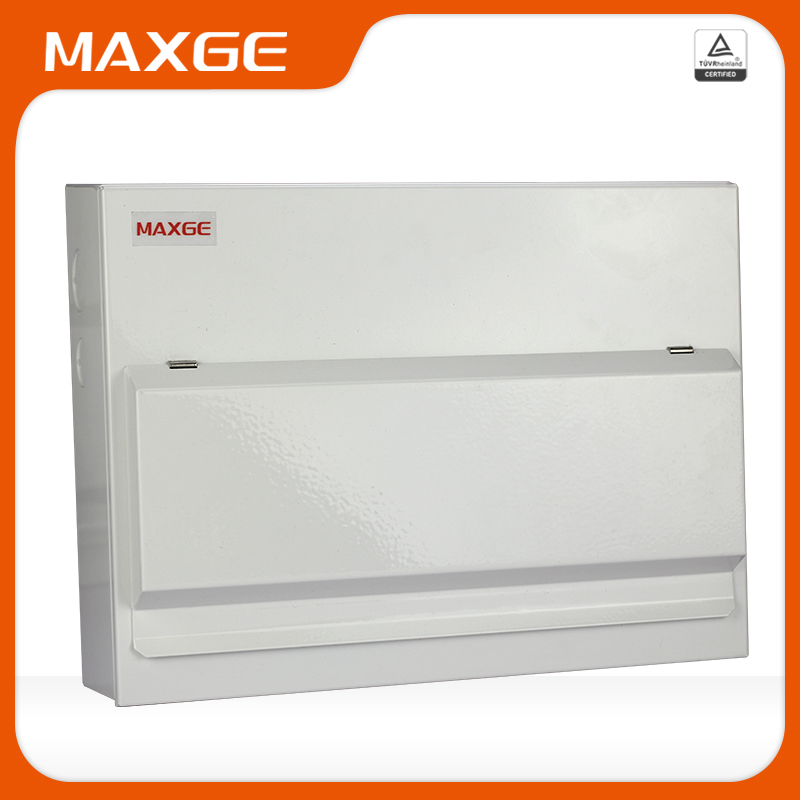

Metal Distribution Box Consumer Unit

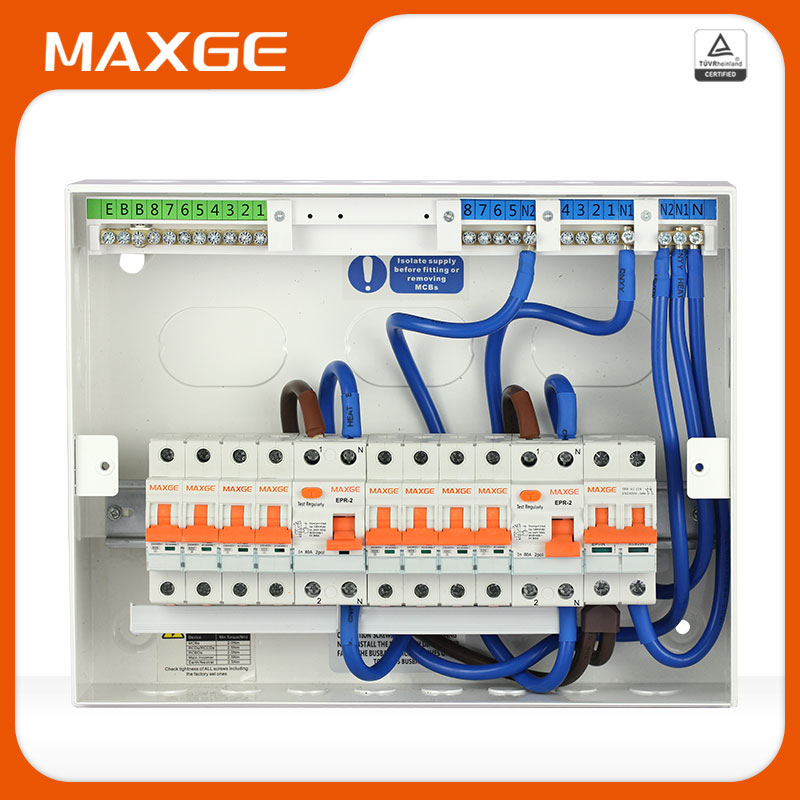

This metal distribution box is a consumer unit providing a secure housing for circuit breakers and electrical components. It is constructed from durable, rustproof Q195 cold-rolled steel and offers IP30 protection.
Technical Specifications
Product Overview
Robust Metal Distribution Solution
This metal consumer unit is engineered for reliable electrical power transmission and distribution in residential, commercial, and industrial settings. Constructed from high-strength Q195 cold-rolled steel, the enclosure features advanced anti-rust processing and inner folding crimping technology for superior deformation resistance. Designed with safety in mind, it offers an IP30 protection degree and complies with international quality standards, ensuring a durable and secure housing for circuit breakers.
Technical Specifications
Technical Data
| Specification | Value |
|---|---|
| Standard | IEC60439-3 |
| Protection Degree | IP30 |
| Material | Iron (Q195 Cold-rolled steel) |
| Fire Resistance | 650°C for 30s |
| Ambient Temperature | -5°C to +40°C |
| Storage Temperature | -40°C to +75°C |
| Max Humidity | 95% |
Performance Metrics
63 A
Rated Current
100 A
Rated Current
125 A
Rated Current
Configuration Options
Available Modules
- 4
- 6
- 8
- 10
- 12
- 14
- 16
- 18
- 22
Dimensions (L x W x H)

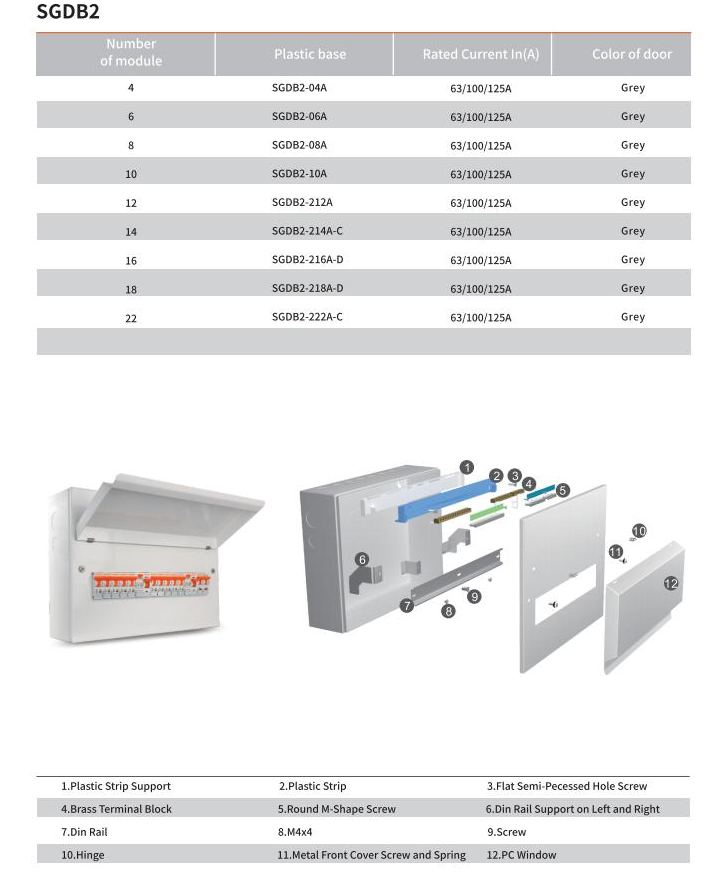

| Ways | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|
| 4 | 150 | 260 | 116 |
| 6 | 186 | 260 | 116 |
| 8 | 222 | 260 | 116 |
| 10 | 258 | 260 | 116 |
| 12 | 294 | 260 | 116 |
| 14 | 330 | 260 | 116 |
| 16 | 366 | 260 | 116 |
| 18 | 402 | 260 | 116 |
| 22 | 474 | 260 | 116 |
Certifications
Compliance
TUV CertifiedCE Approved
