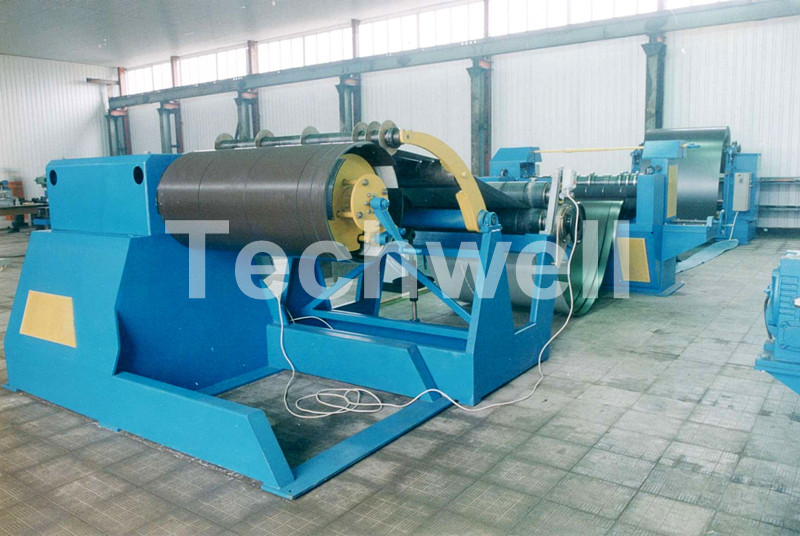

Metal Coil Slitting Machine
This slitting machine efficiently cuts metal and steel coils into precise, narrower widths. It incorporates an uncoiler, slitting unit with adjustable blades, and a recoiler for continuous operation.
Technical Specifications
Overview
Professional Coil Slitting Solution
This high-performance slitting line is engineered for the precise cutting of metal coils into narrower, manageable widths. Designed for efficiency and stability, the system integrates a complete setup including an uncoiler, feeding guide, and advanced tension control. It is an ideal solution for metal processing industries seeking a robust, cost-effective way to manage varying material thicknesses with consistent speed and precision.
Technical Specifications
Performance Highlights
3 mm
Max Material Thickness
40 m/min
Max Line Speed
48 KW
Total Power
Coil Capacity
| Parameter | Value |
|---|---|
| Min Material Thickness | 0.2 mm |
| Max Material Thickness | 3.0 mm |
| Inner Diameter | 450-510 mm |
| Outer Diameter | 1500 mm |
Included Equipment
- Uncoiler
- Feeding guide
- Slitting machine
- Cantilevering separating system
- Tension control board
- Console
- Electrical equipment
Blade Material
40Cr
