Technical Specifications
Product Overview
High-Efficiency Metal Coil Slitting Solutions

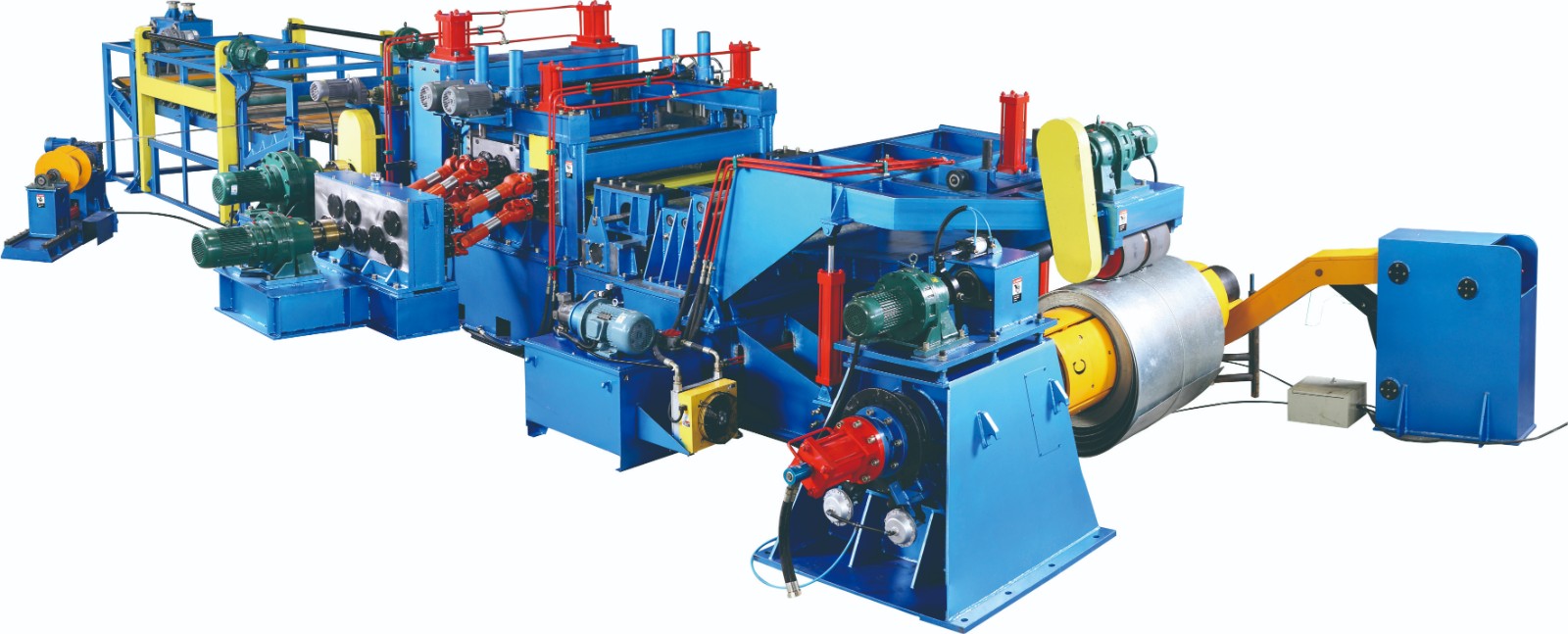

This industrial metal coil slitting machine is engineered for high-volume production environments, offering robust performance and precision cutting capabilities. Designed to handle varying thicknesses and coil weights, the system incorporates advanced hydraulic tension control and user-friendly electrical interfaces to ensure consistent, high-quality strip production. Its heavy-duty construction and integrated material handling systems make it an ideal solution for manufacturing industries requiring reliable and accurate metal processing.
Technical Specifications
Performance Parameters
| Model | Thickness (mm) | Coil Weight (T) | Width (mm) | Line Speed (m/min) | Power (KW) |
|---|---|---|---|---|---|
| JZ-3x1600 | 0.3-3.0 | 35 | 800-1600 | 0-120 | 200 |
| JZ-6x1600 | 1.0-6.0 | 35 | 800-1600 | 0-60 | 220 |
| JZ-8x1600 | 2.0-8.0 | 35 | 800-1600 | 0-40 | 160 |
| JZ-12x2200 | 2.0-12.0 | 35 | 800-2200 | 0-30 | 130 |
| JZ-16x2200 | 3.0-16.0 | 40 | 1000-2200 | 0-20 | 150 |
Key Features
Machine Capabilities
- Heavy-duty uncoiler system for high-capacity coil handling
- Multi-roll slitting head for precise cutting accuracy
- Integrated recoiler for efficient strip rewinding
- Hydraulic tension control and material handling systems
- Adjustable slitting blades for versatile metal processing
- Comprehensive electrical control panel for parameter adjustments
Safety & Compliance
- Safety Standards
- Emergency StopProtective GuardingIndustrial Safety Standards
