Metal Base Distribution Box
This metal base distribution box is designed for AC 50Hz/60Hz power distribution up to 400V and 63A. It provides control and protection for electrical energy distribution, including short circuit, overload, and over-voltage.
Technical Specifications
Overview
Professional Distribution Solutions
This series of switch distribution boxes is designed for terminal AC circuits operating at 50Hz or 60Hz. Engineered for reliability, it supports rated voltages up to 400V and currents up to 63A, providing a secure enclosure for modular electrical components. These units are essential for managing electric energy distribution, offering robust protection against short circuits, overloads, earth leakage, and over-voltage in residential, commercial, and industrial environments.
Technical Specifications
Protection Functions
- Short circuit protection
- Overload protection
- Earth leakage protection
- Over-voltage protection
- Rated Operating Voltage
- 400 V
- Max Rated Current
- 63 A
- Operating Frequency
- 50Hz60Hz

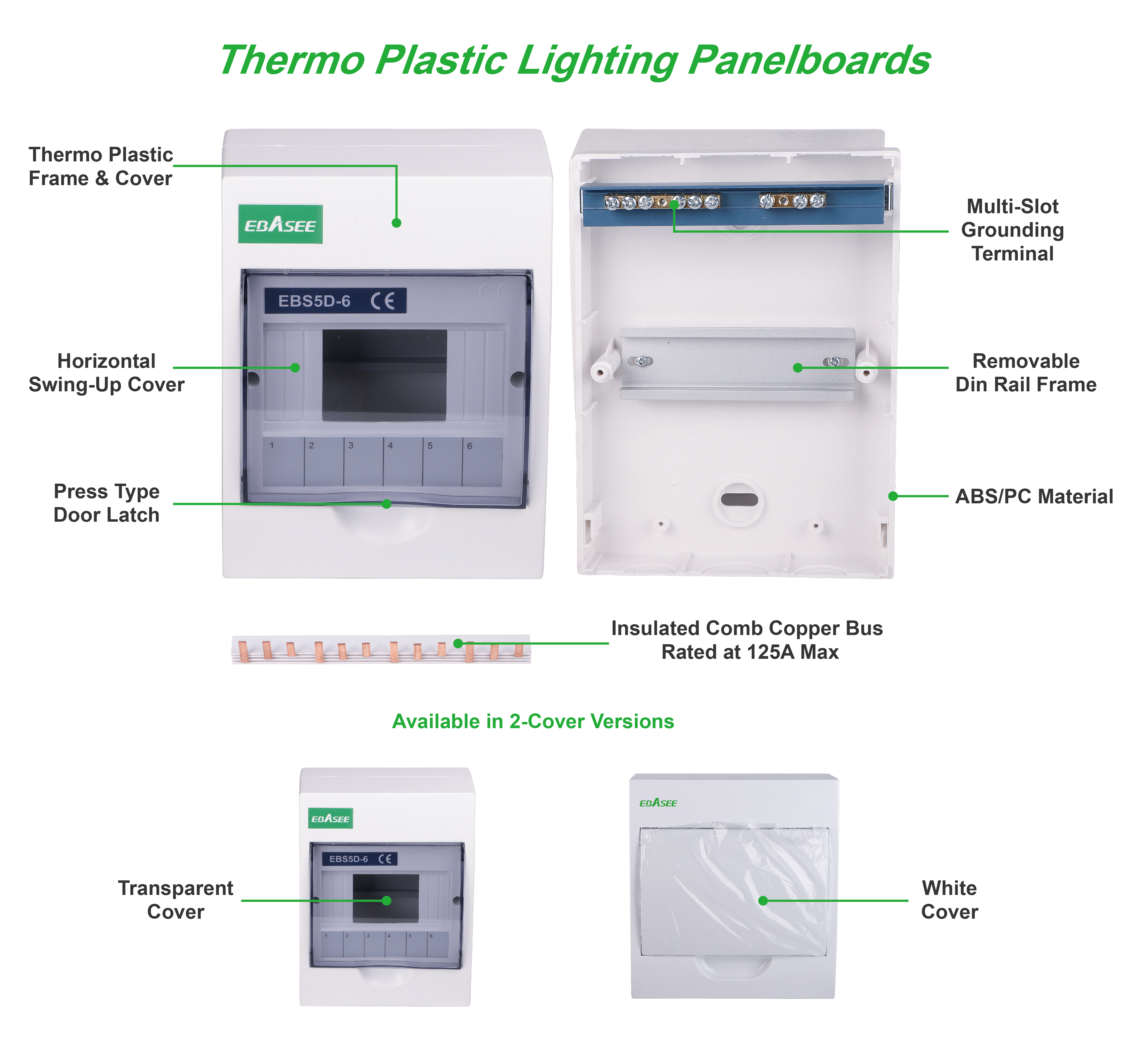

- Construction Materials
- Metal BaseABS/PCThermoplastic
Certifications
International Standards
CERoHSTUVISO 9001CQCCB
Model Configuration
Model Configuration Guide
| Module Ways | Number Bar Holes | Earth Bar Holes | Type Code |
|---|---|---|---|
| 4 ways | 4Xφ5 | 3Xφ5 | EBS5DS-4 |
| 6 ways | 6Xφ5 | 3Xφ5 | EBS5DS-6 |
