Metal Access Control Keypad
This access control keypad features a waterproof and dust-proof design with a metal button keypad. It has a tri-color LED indicator and supports PIN, PROX, and PIN & PROX access with a user capacity of 1000.
Technical Specifications
Product Overview
High-Performance Access Control
This metal access control keypad offers a robust and durable solution for secure entry management in both residential and commercial environments. Engineered with a die-cast zinc alloy housing, it is fully waterproof and dust-proof, ensuring reliable operation even in harsh outdoor conditions. The device supports versatile authentication methods including PIN codes and 125KHz ID cards, with a capacity for up to 1000 users.
Technical Specifications
IP Grade
IP67
- Housing Material
- Die-cast Zinc Alloy
- Dimensions
- 118 x 75 x 26 mm
- Installation
- Surface mounted
Electrical & Performance
Key Performance Metrics
12 VAC
Voltage
120 mA
Working Current
50 mA
Standby Current
1,000 users
User Capacity
- Adjustable Strike Time
- 255 seconds
Environment
- Operating Temperature
- -20℃ to 70℃
- Operating Humidity
- ≤95% RH
Features
LED Indicators
- Blue
- Yellow
- White

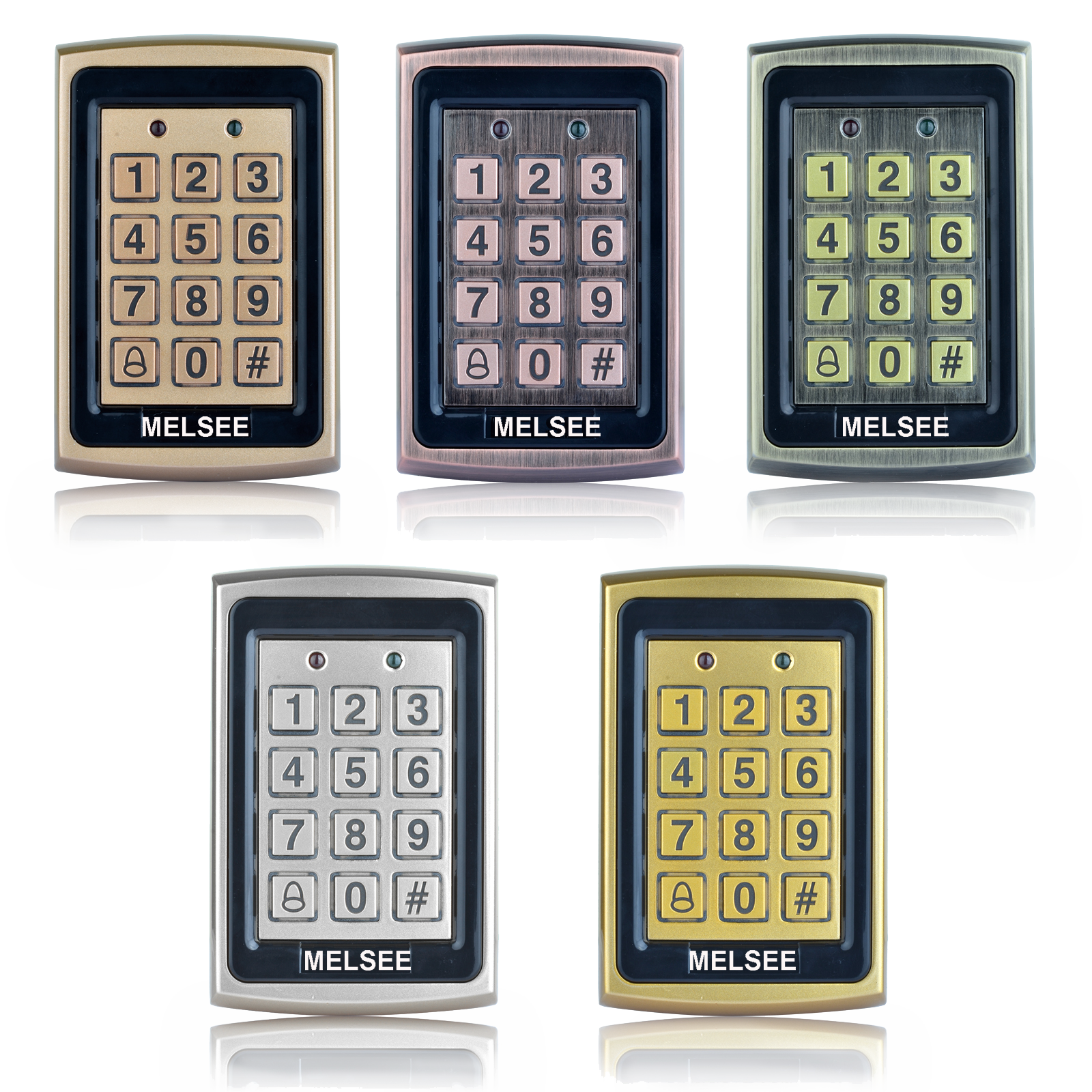

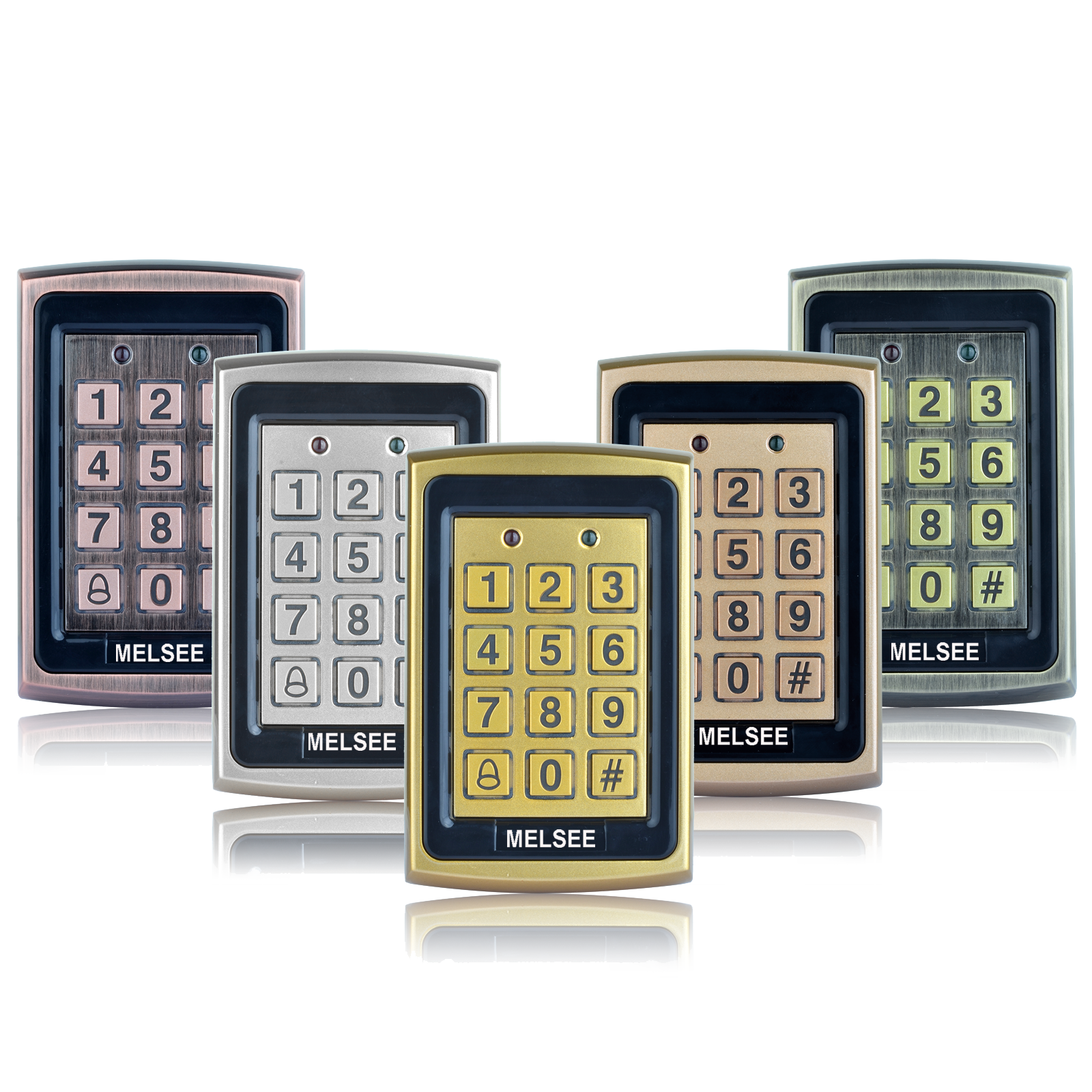

Color Options
- Golden
- Silver
- White
- Red
- Green
- Authentication Methods
- PINPROX (125KHz ID Card)PIN & PROX
