Medical Mask Making and Welding Machine
This fully automated machine produces medical masks through integrated forming, welding, and cutting processes. Its high-speed operation and precision components ensure quality mask production with minimal human intervention.
Technical Specifications
Product Overview

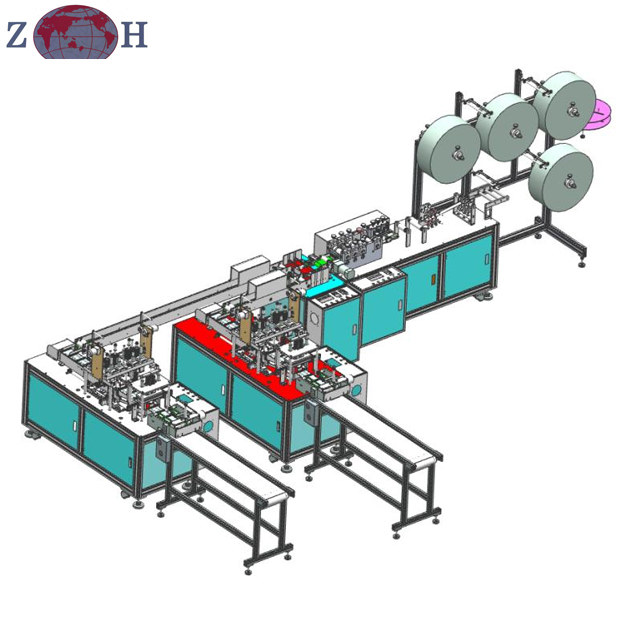

Automated Mask Production Line
This fully automatic production line is engineered for the high-efficiency manufacturing of three-layer disposable plane masks. The system integrates raw material feeding, nose-bridge-wire insertion, mask body forming, edge bonding, and ear band splicing into a continuous, streamlined process. Designed for high-volume environments, it features PLC control with HMI operation, requiring only a single operator for material loading and collection.
Performance Metrics
Production Speed
100 pcs/min
Optimal Speed
120 pcs/min
Max Speed
Quality Metrics
- Pass Rate: ≥ 99%
- Malfunction Ratio: < 2%
Technical Specifications
- Mask Specifications
- DisposablePlane TypeThree-layer
- Mask Dimensions
- 175mm x 95mm (+/- 1mm accuracy)
Utility Requirements
- Power Supply
- 220V, Single phase, 50Hz
- Rated Electric Power
- 9 kW
- Air Source
- 0.6MPa, 0.3m3/min
Physical Attributes
- Machine Footprint
- 6500 x 3800 x 2000mm
- Machine Weight
- 1500 kg
