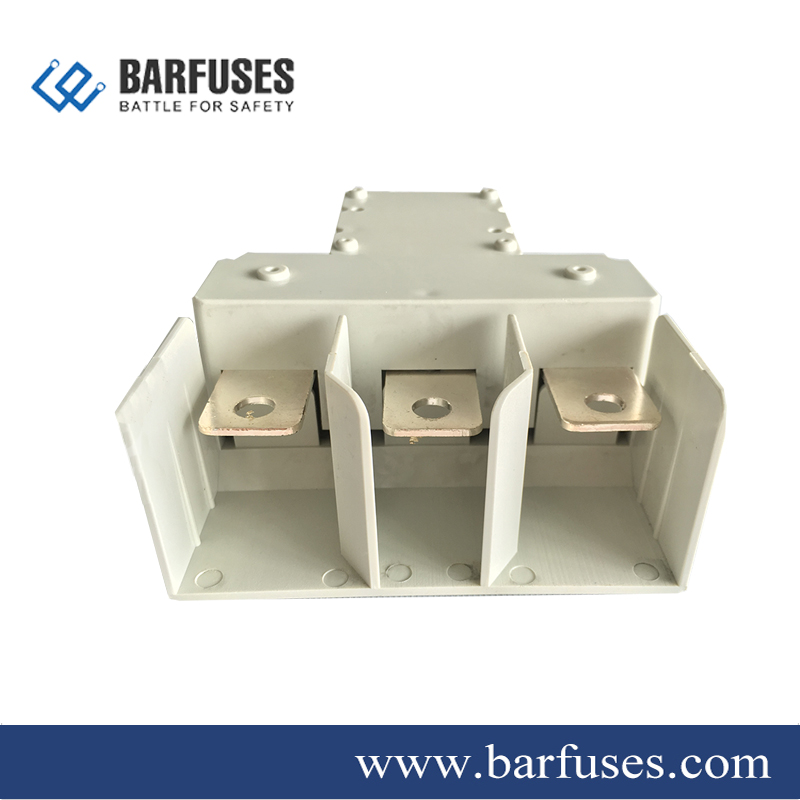

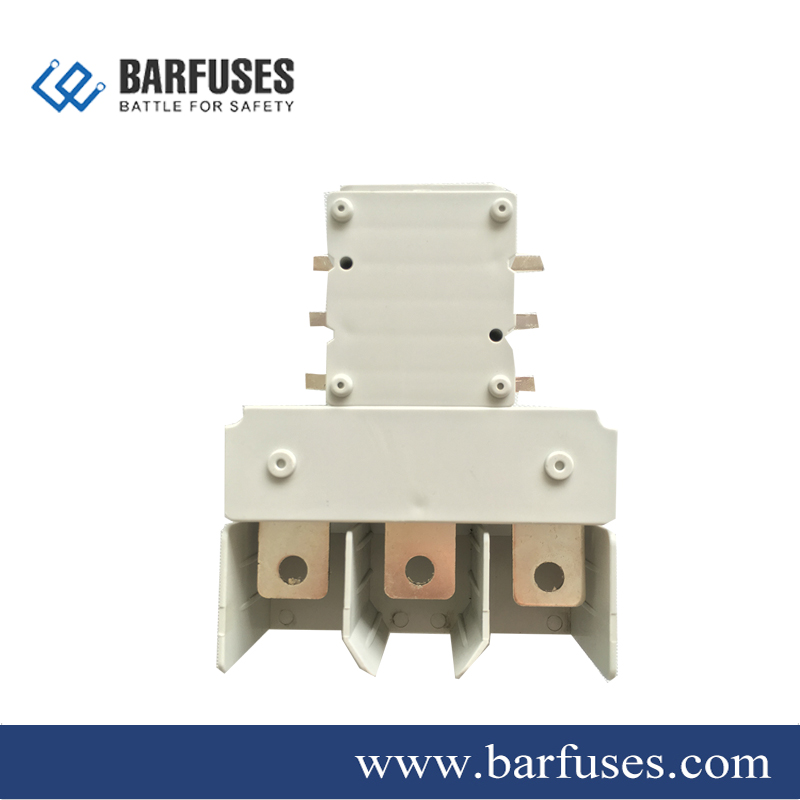

MCB Miniature Circuit Breaker Pan Assembly
This pan assembly is designed for mounting miniature circuit breakers. It is available in fire-resistant and non-fire resistant types, with 125A and 250A options, and sizes from 6W to 60W.
Technical Specifications
Overview
Professional Circuit Distribution
This Miniature Circuit Breaker (MCB) Pan Assembly is engineered for secure and efficient power distribution in industrial and commercial electrical systems. Designed to facilitate the mounting and connection of multiple MCBs, the assembly ensures optimal spacing and insulation to prevent electrical hazards. It supports rigorous safety standards and features robust construction for reliable performance in demanding transmission and distribution environments.
Technical Specifications
- Rated Current Options
- 125A250A
- Available Ways
- 6W to 60W
Compliance & Safety
Supported Standards
- DIN VDE 0100
- IEC 60204-1
- EN 60204-1
- VDE 0113-1
- IEC 60439
Certifications
DEKRA Certified
Design Features
Housing Color Coding
- Blue
- Green-Yellow
- Black
Construction Details
| Feature | Benefit |
|---|---|
| Insulating Materials | Ensures safety and prevents short circuits |
| Metal Conductors | Robust performance for power transmission |
| Terminal Blocks | Clear labeling for circuit identification |
