Technical Specifications
Overview

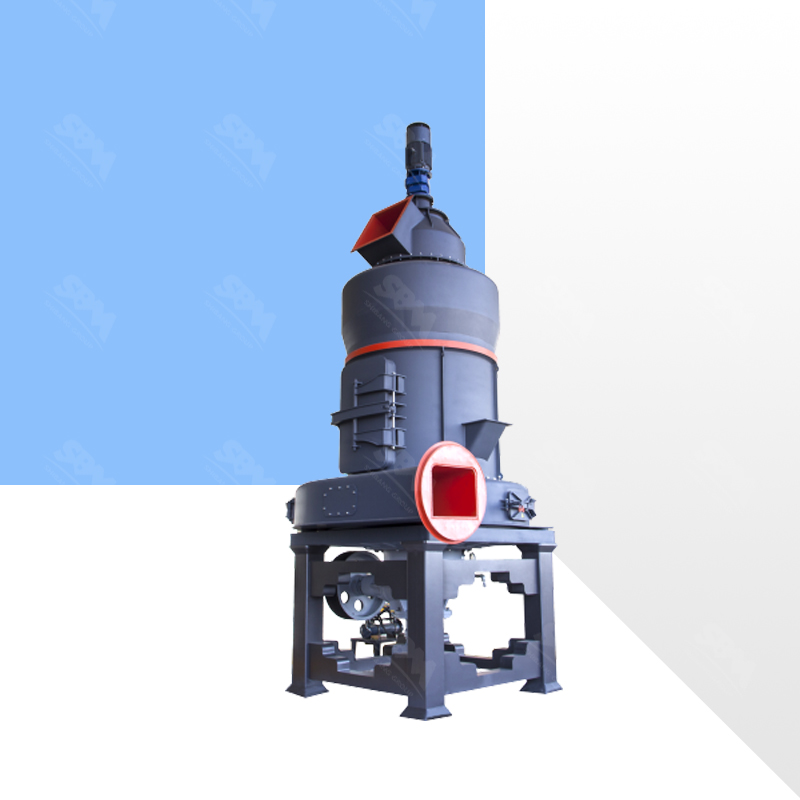

The MB5X Pendulum Roller Grinding Mill
The MB5X is a fifth-generation pendulous hanging grinding mill designed for efficient material processing. Engineered for non-combustible and non-explosive brittle minerals, it features advanced technology such as diluted oil lubrication and a low-resistance hanging cage-type powder concentrator. Its robust construction and elastic volute damping structure minimize vibration, ensuring long-term durability and reliable performance in demanding industrial environments.
Performance Metrics
Capacity
2.7 TPH
Minimum Capacity
83 TPH
Maximum Capacity
- Input Feed Size
- 55 mm
Technical Specifications
Material Constraints
- Moh's hardness below Grade 7
- Water content below 6%
- Non-combustible
- Non-explosive
- Compatible Materials
- LimestoneCalciteDolomitePetroleum coalGypsumBariteMarbleTalcCoal powder
Key Features
Design Advantages
Maintenance-free lubricationDiluted oil systemElastic volute dampingLow-resistance powder concentrator
