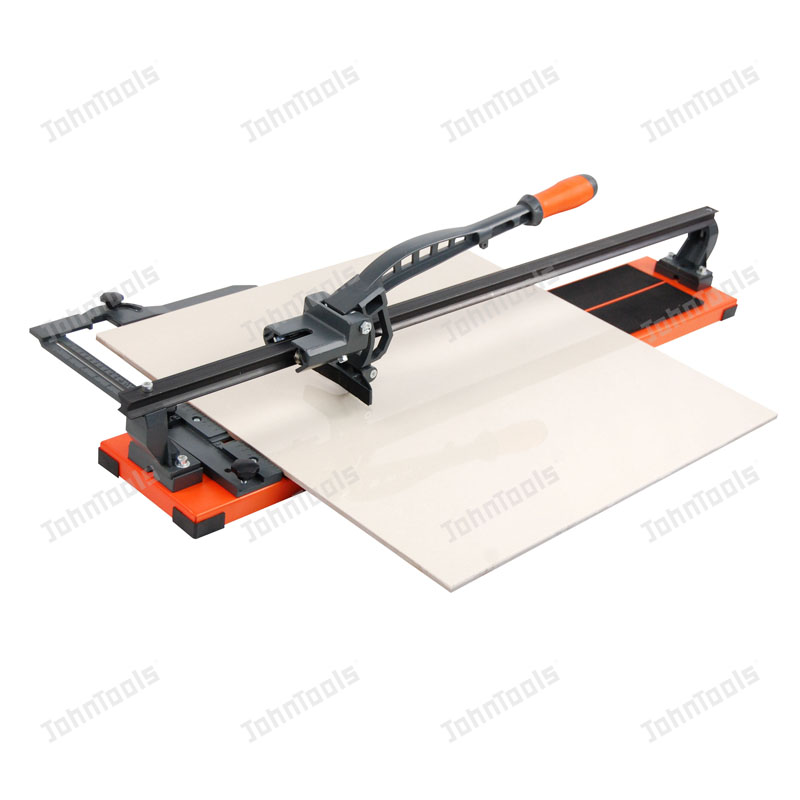

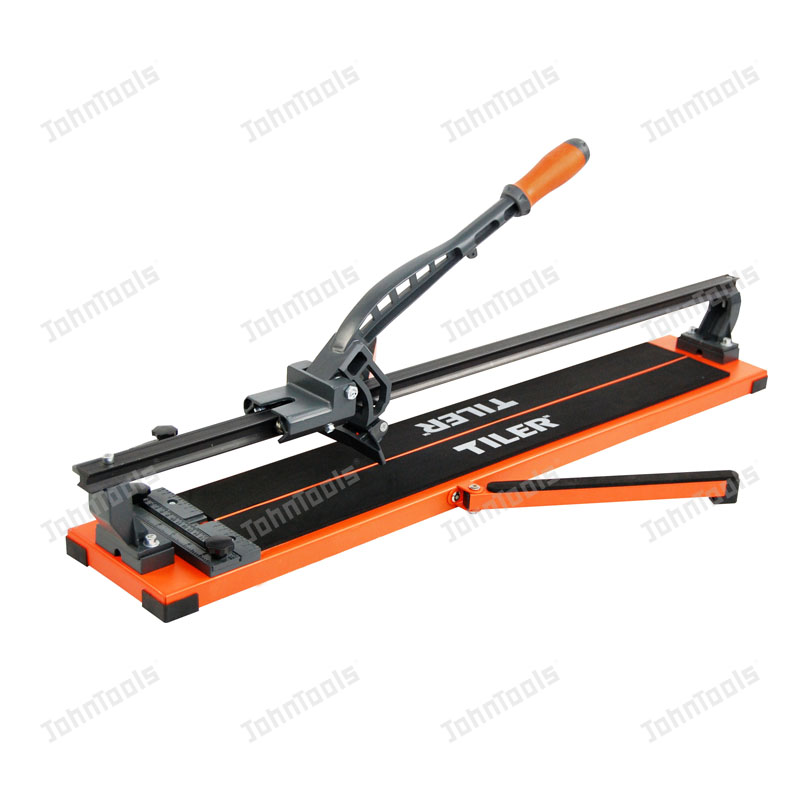

Manual Tile Cutter with Tungsten-Carbide Wheel
This manual tile cutter is designed for cutting tiles up to 14mm thick. It features a sliding bar with built-in roller bearings for smooth scoring and extension arms for supporting larger tiles.
Technical Specifications
Overview
Professional Grade Manual Tile Cutter
The 8102E-5B is a high-performance manual tile cutter engineered for precision scoring and breaking of ceramic, porcelain, and mosaic tiles. Featuring a rigid metal base and a sliding bar with built-in roller bearings, it ensures smooth operation and stability for large-format tiling projects. The ergonomic human-engineered handle and lockable breaking device provide optimal control and visibility, making it an essential tool for professional contractors seeking clean, chip-free results.
Key Performance Metrics
Cutting Capabilities
14 mm
Max Cutting Thickness
60 °
Max Cutting Angle
Technical Specifications

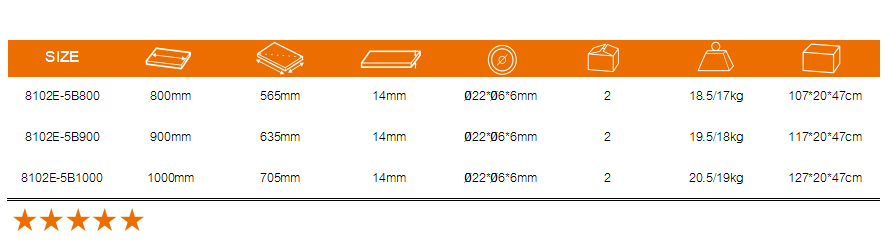

Model Variants & Dimensions
| Model Number | Cutting Length (mm) | Diagonal Cutting (mm) | Weight G.W/N.W (kg) | Carton Size (cm) |
|---|---|---|---|---|
| 8102E-5B800 | 800 | 565 | 18.5/17 | 107*20*47 |
| 8102E-5B900 | 900 | 635 | 19.5/18 | 117*20*47 |
| 8102E-5B1000 | 1,000 | 705 | 20.5/19 | 127*20*47 |
Design & Construction
Build Features
- Rigid metal base for maximum stability
- Sliding bar with integrated roller bearings
- Lockable breaking device for clear scoring visibility
- Adjustable aluminum gauge (0°-60°)
- Lateral extension arms for large-format tile support
- Ergonomic human-engineering handle
Cutting Components
Cutting Wheel Details
- Coated tungsten-carbide material
- Integrated bearings for smooth scoring
- Wheel size: Ø22*Ø6*6mm
Material Compatibility
- Compatible Materials
- CeramicPorcelainMosaicsLarge Format Tiles
Logistics
- Packaging Information
- 2 units per export carton
