Manual Tile Cutter with Ball Bearing Slide
This manual tile cutter features a metal base for rigidity and a smooth-sliding bar with durable ball bearings. The lockable breaking device and extension arms provide optimal view and stability for cutting larger tiles.
Technical Specifications
Product Overview

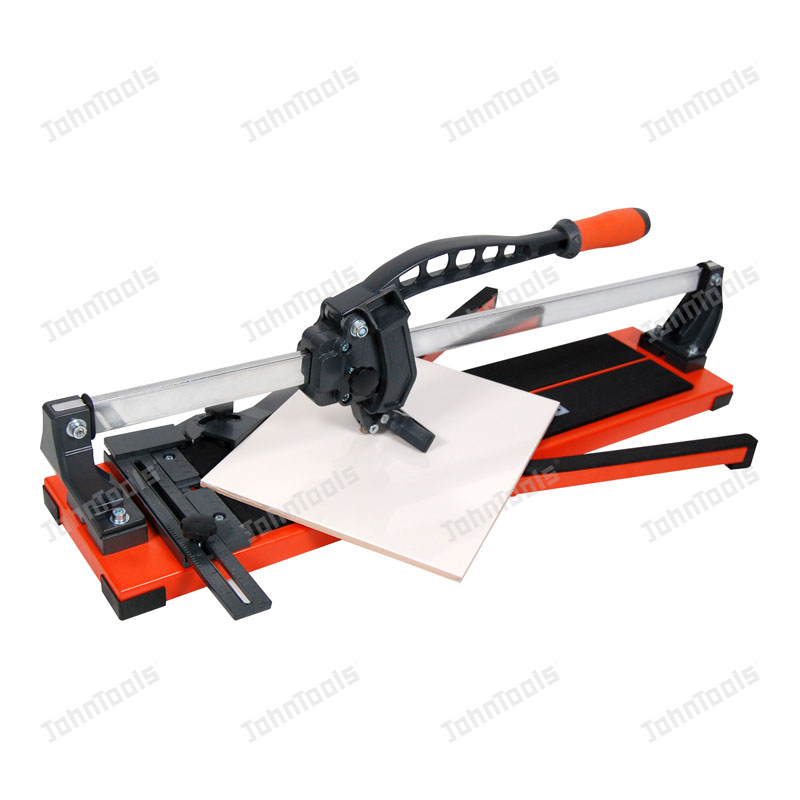

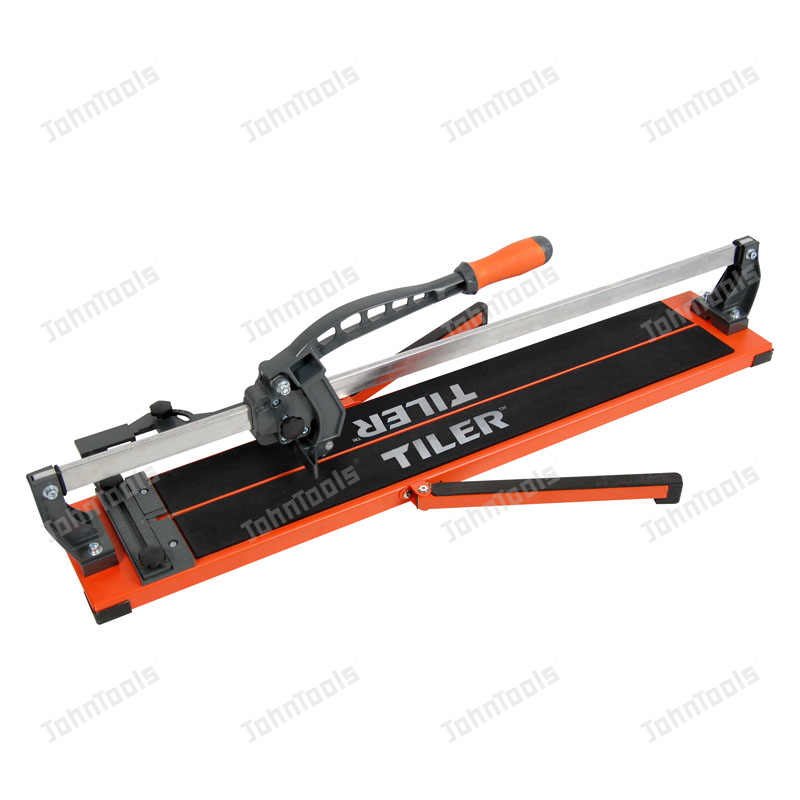

Professional Manual Tile Cutter
The 8102G-3B is a high-performance manual tile cutter engineered for precision scoring and clean breaks on ceramic, porcelain, and mosaic tiles. Featuring a robust metal base and a sliding bar equipped with durable ball bearings, it ensures smooth operation even on large format tiles. The ergonomic human-engineered handle and lockable breaking device provide optimal control and visibility, making it an essential tool for professional contractors seeking efficiency and accuracy.
Key Performance Metrics
Key Performance Metrics
14 mm
Max Cutting Thickness
1,000 mm
Max Cutting Length
22 mm
Wheel Diameter
Technical Specifications

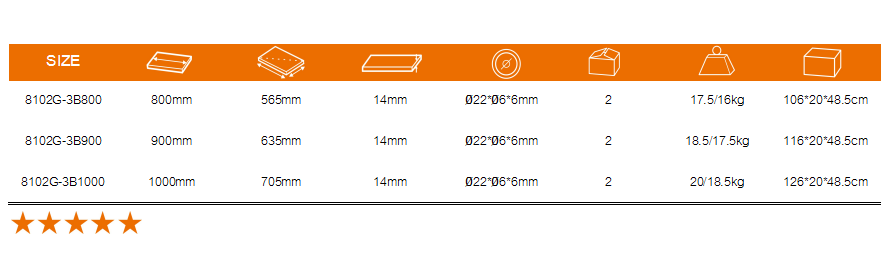

Model Variations
| Model | Cutting Length | Max Width | Weight (G.W/N.W) | Carton Size |
|---|---|---|---|---|
| 8102G-3B800 | 800mm | 565mm | 17.5/16kg | 106*20*48.5cm |
| 8102G-3B900 | 900mm | 635mm | 18.5/17.5kg | 116*20*48.5cm |
| 8102G-3B1000 | 1000mm | 705mm | 20/18.5kg | 126*20*48.5cm |
Design & Construction
Structural Support
- Aluminum die-casting support parts
- Extension arms for large/heavy tiles
- Adjustable cutting gauge for angles
- Lockable breaking device
- Base Material
- Metal base for rigidity and stability
- Slide Mechanism
- Sliding bar with durable ball bearings
- Cutting Wheel
- Coated tungsten-carbide with bearings
Applications
- Compatible Materials
- CeramicPorcelainMosaics
Logistics
Optional Accessories
Nylon Carry Bag
- Standard Packaging
- 2 pieces per box
