Technical Specifications
Overview

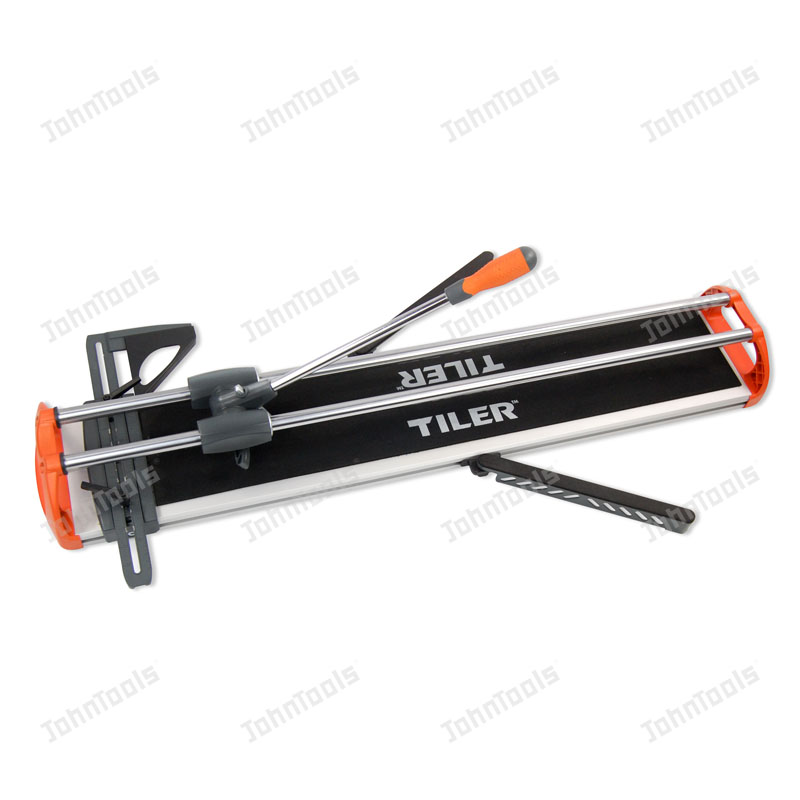

Professional Manual Tile Cutter
The 8100K-2 is a high-precision manual tile cutter engineered for professional performance on ceramic, porcelain, and mosaic tiles. Featuring an integrated aluminum base for rigidity and 20mm hard chromed solid rods, it ensures smooth scoring and stable operation. This versatile tool is designed for both durability and portability, making it an essential choice for demanding tiling projects.
Cutting Performance
Available Cutting Angles
0°45°
- Max Cutting Thickness
- 16 mm
Technical Specifications

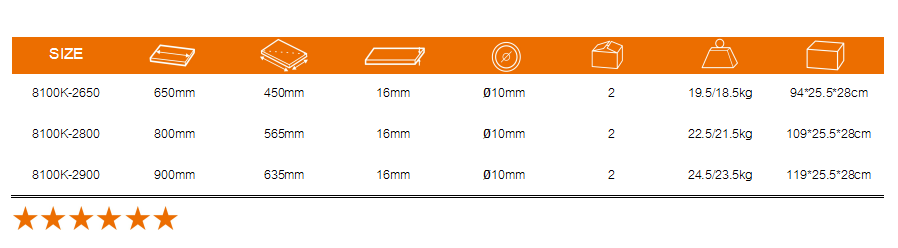

Model Specifications
| Model | Cutting Length (mm) | Diagonal Width (mm) | Wheel Dia. (mm) | Weight (kg) |
|---|---|---|---|---|
| 8100K-2650 | 650 | 450 | Ø10mm | 19.5/18.5 |
| 8100K-2800 | 800 | 565 | Ø10mm | 22.5/21.5 |
| 8100K-2900 | 900 | 635 | Ø10mm | 24.5/23.5 |
Build & Construction
Guide Rods
20 mm
Hard Chromed Rods
- Base Material
- Integrated aluminum die-casting for rigidity and stability
Key Features

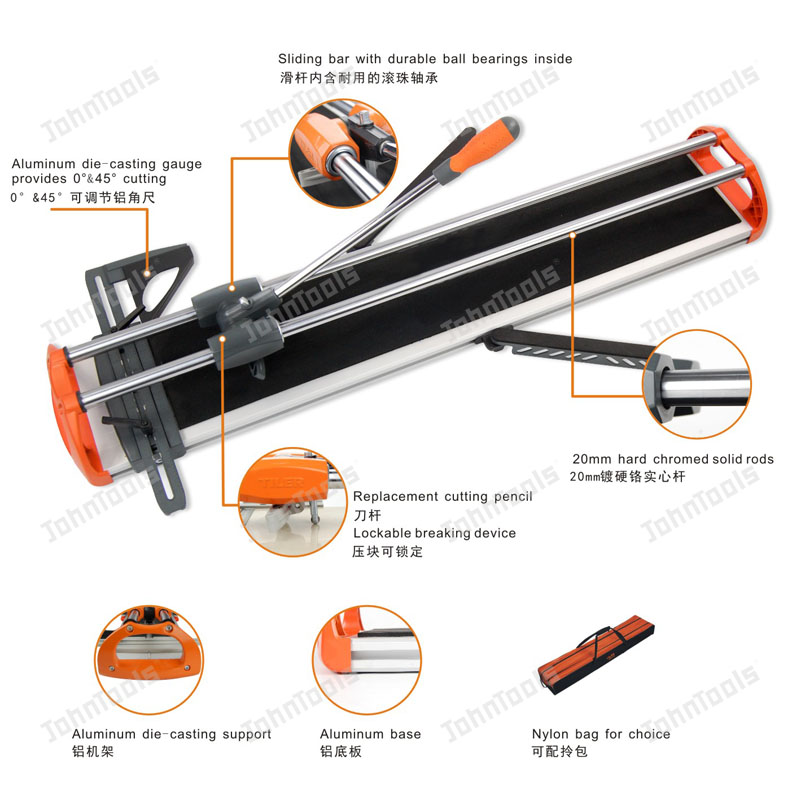

Core Features
- Sliding bar with durable ball bearings for smooth scoring
- Lockable breaking device for optimal visibility
- Adjustable extension arms for large, heavy tiles
- Simple replaceable cutting pencil system
- Aluminum die-casting gauge for precision angles
- Lightweight design for easy transport
Applications
- Compatible Materials
- CeramicPorcelainMosaics
Logistics
- Standard Packaging
- 2 pieces per box
