Manual 3-in-1 Tube Bender
This manual tube bender is designed to accurately bend copper, aluminum and steel pipes. It can bend tubes between 0 and 180 degrees.
Technical Specifications
Overview

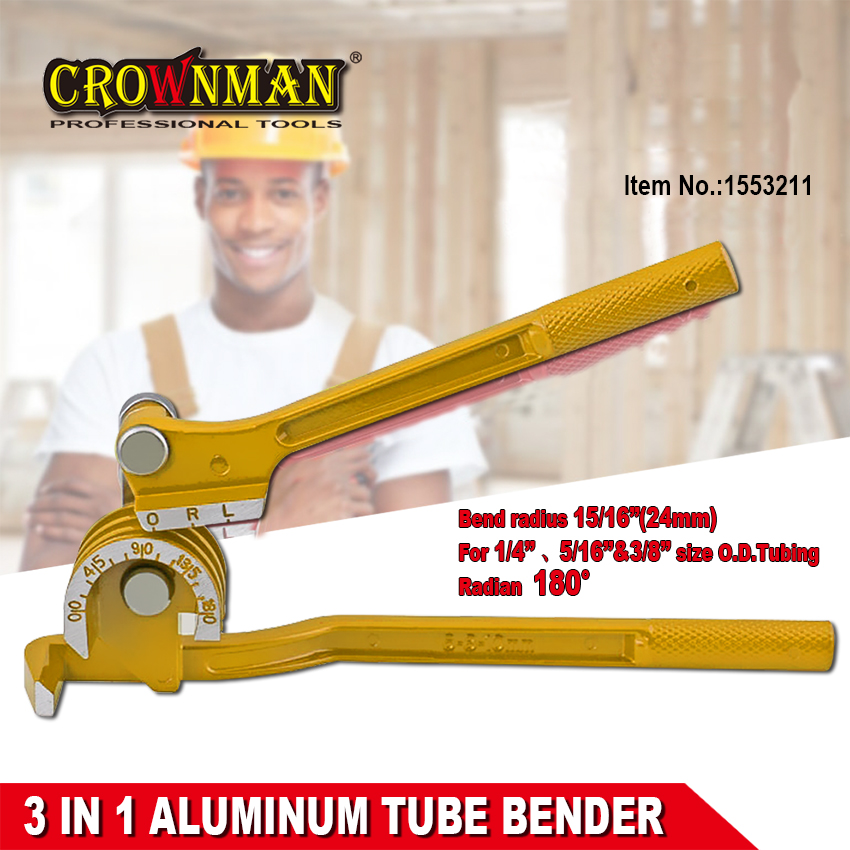

Versatile 3-in-1 Manual Tube Bender
This professional-grade manual tube bender is designed for high-precision bending of copper, brass, aluminum, and thin steel pipes. Featuring a 3-in-1 design, it accommodates three different tubing sizes with a single tool, ensuring accurate bends from 0 to 180 degrees. Its durable construction and ergonomic leverage allow for smooth operation without collapsing or folding the workpiece.
Key Performance Metrics
Key Performance Metrics
180 °
Maximum Bend Angle
24 mm
Bend Radius
10 in
Overall Length
Technical Specifications
Compatible Materials
- Copper
- Brass
- Aluminum
- Soft Steel
- Supported Tube Sizes (O.D.)
- 1/4"5/16"3/8"
Design & Construction

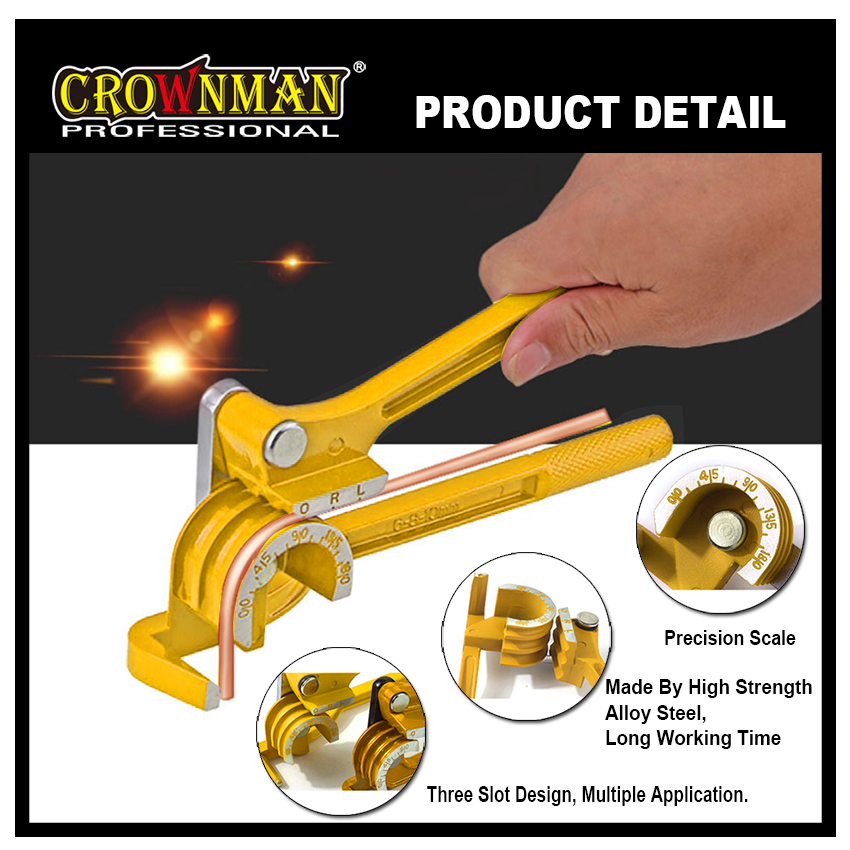

Precision Features
- Calibrated angle markings (0°-180°)
- Three-slot design for multiple diameters
- Thicker steel plate link arm for durability
- Body Material
- High-strength Aluminum Alloy

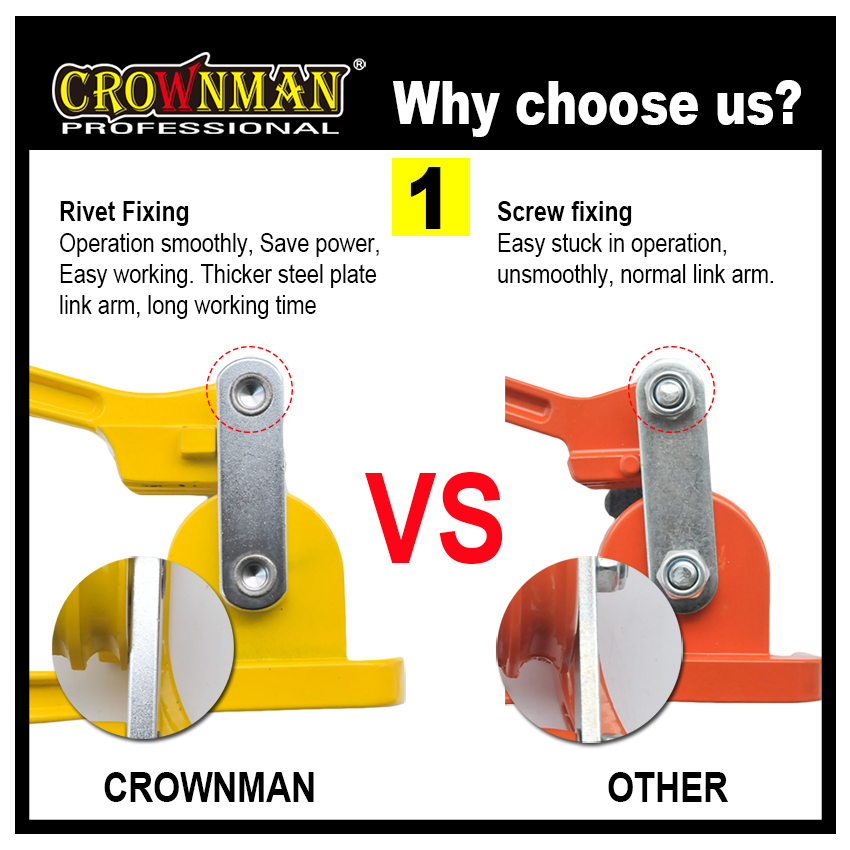

- Fixing Mechanism
- Rivet Fixing for smooth operation and power saving
Operation Guide

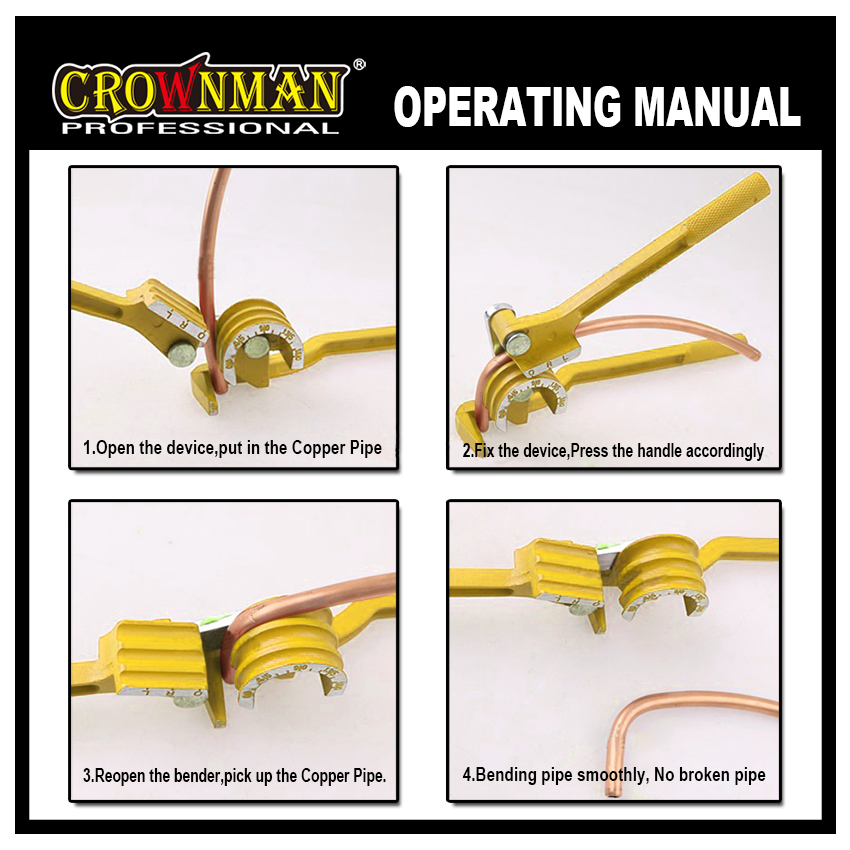

Operating Procedure
| Step | Action | Result |
|---|---|---|
| 1 | Open device and insert pipe | Pipe positioned in correct slot |
| 2 | Fix device and press handle | Controlled bending to desired angle |
| 3 | Reopen bender and remove pipe | Smooth bend without breakage |
