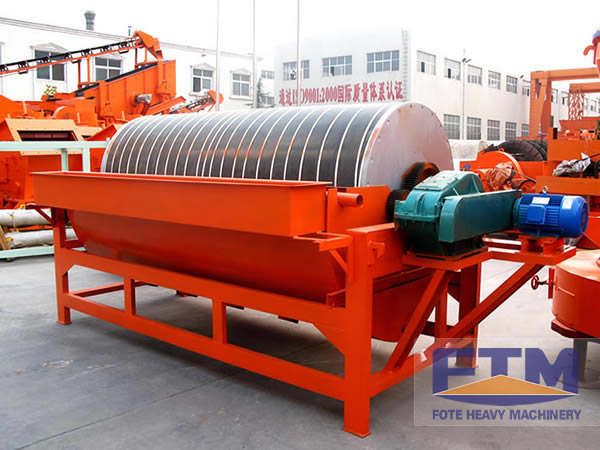

Magnetic Separator for Material Recycling
The magnetic separator is designed for removing iron powder from powder materials to aid in recycling. It is widely applicable in resource recycling, timber, mining, ceramics, chemicals, and food industries.
Technical Specifications
Overview
High-Efficiency Magnetic Separation

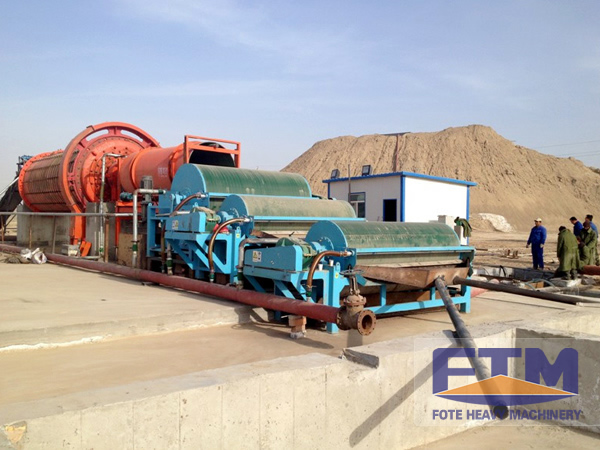

This industrial magnetic separator is designed for the efficient removal of ferrous materials from non-ferrous substances in resource recycling and mineral processing. Utilizing a wet separation method, it is highly versatile for applications ranging from mining and ceramics to chemical and food processing. The machine features a robust magnetic system that ensures stable field strength and consistent material recovery, making it an essential tool for high-capacity beneficiation plants.
Key Features
Operational Highlights
- Strong and stable magnetic field strength
- Large wrap angle of the magnetic system
- Suitable for materials with granularity below 3mm
- Designed for continuous operation and easy maintenance
Technical Specifications
Model Specifications
| Model | Diameter (mm) | Length (mm) | Capacity (t/h) | Power (kW) |
|---|---|---|---|---|
| CTB6012 | 600 | 1,200 | 10-20 | 1.5 |
| CTB6018 | 600 | 1,800 | 15-30 | 2.2 |
| CTB7518 | 750 | 1,800 | 20-45 | 2.2 |
| CTB9018 | 900 | 1,800 | 40-60 | 3 |
| CTB9021 | 900 | 2,100 | 45-60 | 3 |
| CTB9024 | 900 | 2,400 | 45-70 | 4 |
| CTB1018 | 1,050 | 1,800 | 50-75 | 5.5 |
| CTB1021 | 1,050 | 2,100 | 50-100 | 5.5 |
| CTB1024 | 1,050 | 2,400 | 60-120 | 5.5 |
| CTB1218 | 1,200 | 1,800 | 80-140 | 5.5 |
| CTB1224 | 1,200 | 2,400 | 85-180 | 7.5 |
| CTB1230 | 1,200 | 3,000 | 100-180 | 7.5 |
| CTB1530 | 1,500 | 3,000 | 170-280 | 11 |
Operational Parameters
Processing Capabilities
280 t/h
Max Capacity
3 mm
Max Feed Size
Applications
- Compatible Materials
- MagnetitePyrrhotiteRoasted oreTitanic iron oreHematiteLimoniteSideriteWolframiteTantalum-niobium oreRed mudQuartzFluoriteFeldspar
