LV Aerial Cable Suspension Clamp
These suspension clamps are designed for installing and suspending four-core self-supporting low voltage aerial cables on poles or walls. They feature shear head bolts for constant installation torque and prevent damage to the cable insulation layer.
Technical Specifications
Product Overview
Versatile Suspension Solution
The SPC suspension clamp is engineered for the professional installation and suspension of four-core self-supporting low voltage aerial cable lines. Designed for durability on both poles and walls, it utilizes high-strength, hot-dip galvanized steel for superior corrosion resistance. The clamp features a weather-resistant, anti-UV rubber insert to protect cable insulation, ensuring reliable performance in demanding outdoor environmental conditions.
Key Features
- Equipped with shear head bolts for constant installation torque
- Damage-free installation for cable insulation layers
- Retained parts design to prevent components from falling during installation
- Weather-resistant and anti-UV rubber components
Technical Specifications
- Standards
- EN 50483-2
- Material
- Hot-dip galvanized steelWeather-resistant rubberAnti-UV material

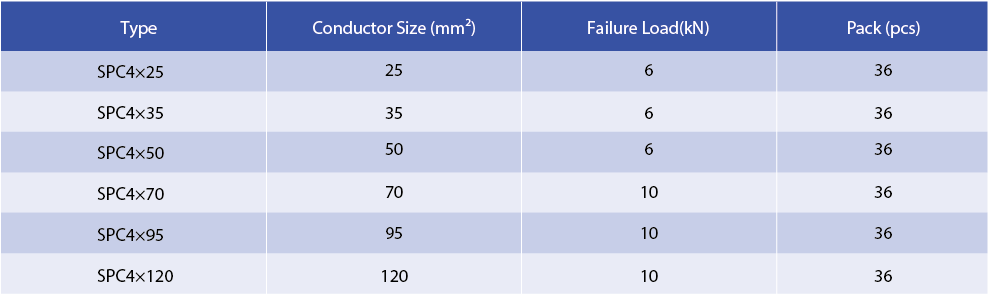

Configuration Table
Available Models and Ratings
| Type | Conductor Size (mm²) | Failure Load (kN) | Pack (pcs) |
|---|---|---|---|
| SPC4×25 | 25 | 6 | 36 |
| SPC4×35 | 35 | 6 | 36 |
| SPC4×50 | 50 | 6 | 36 |
| SPC4×70 | 70 | 10 | 36 |
| SPC4×95 | 95 | 10 | 36 |
| SPC4×120 | 120 | 10 | 36 |
