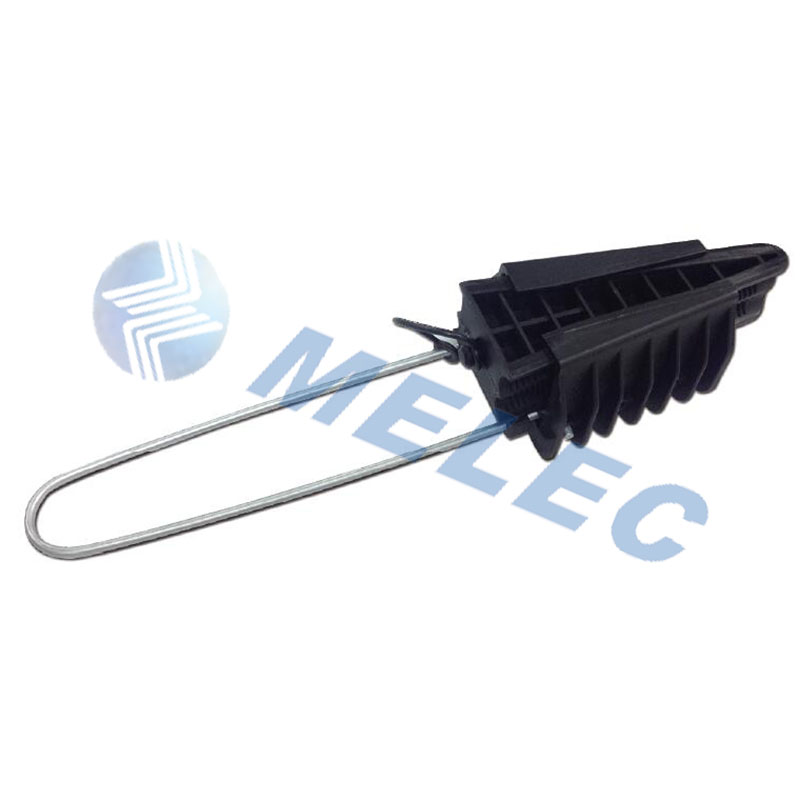

Insulated Wire Tension Clamp
This tension clamp is designed to anchor insulated service lines with 2 or 4 conductors. The clamp and wedges are made of high mechanical strength, weather resistant, anti UV material.
Technical Specifications
Overview
High-Performance PA Tension Clamp
The PA tension clamp is expertly engineered to securely anchor insulated service lines featuring 2 or 4 conductors. Constructed from high-mechanical-strength, weather-resistant, and anti-UV materials, it ensures long-term durability in demanding outdoor environments. Its thoughtful design eliminates the need for additional installation tools and prevents loose parts, making it a reliable solution for overhead electrical distribution networks.
Technical Specifications
Performance Metrics
1.9 kN
Failure Load

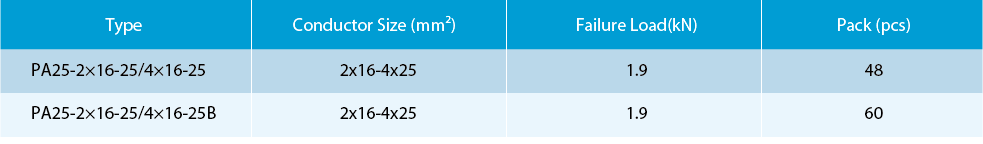

Model Specifications
| Model | Conductor Size | Pack Size |
|---|---|---|
| PA25-2×16-25/4×16-25 | 2x16-4x25 mm² | 48 |
| PA25-2×16-25/4×16-25B | 2x16-4x25 mm² | 60 |
Features & Compliance
Key Features
- Special clip design prevents bail slippage
- Easy installation with no additional tools required
- Secure design prevents loose parts from falling during installation
- Weather-resistant and anti-UV material construction
Compliance Standard
NF C 33-042
