LV-ABC Suspension Clamp
These suspension clamps are designed to hang LV-ABC cables on poles using the insulated neutral messenger. They offer easy installation without the need for additional tools.
Technical Specifications
Product Overview
LV-ABC Suspension Clamp
These suspension clamps are designed for the secure and reliable suspension of LV-ABC cables on poles using an insulated neutral messenger. Engineered for efficiency, the clamps allow for easy installation without the need for additional tools, ensuring no loose parts fall during the process. Available in two distinct models, F-MA and F-AL, they provide robust support and long-lasting performance in various overhead line applications.
Technical Specifications
Performance Metrics
16 mm²
Min Conductor Size
95 mm²
Max Conductor Size

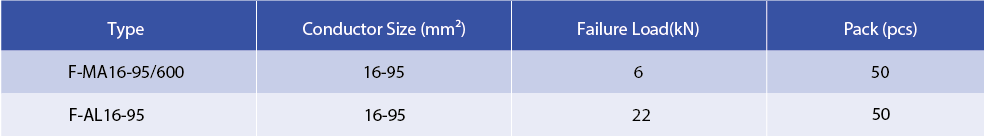

Model Specifications
| Model | Failure Load | Pack Qty |
|---|---|---|
| F-MA16-95/600 | 6 | 50 |
| F-AL16-95 | 22 | 50 |
- Standards
- EN 50483-3NF C 33-040
Design & Construction
Material Features
- Corrosion resistant
- Anti-UV material
- High mechanical strength
- Aluminium alloy (F-AL model only)
Locking Mechanisms
| Model | Locking Method |
|---|---|
| F-MA | Adjustable grip device |
| F-AL | Binding bolt with wing nut |
