LV-ABC Line Tension Clamp
Tension clamps are applicable to four core self-supporting LV-ABC lines. These clamps are used for anchoring and tightening insulated conductors.
Technical Specifications
Product Overview
Professional Tension Solutions
The LV-ABC Line Tension Clamp is a high-performance solution for anchoring and tightening four-core self-supporting electrical lines. Designed for durability, it features galvanized steel braces for superior corrosion resistance and high-strength, weather-resistant polymer wedges that are anti-UV. The system is engineered for installation efficiency, featuring integrated bolts and a design that prevents loose parts from detaching.
Technical Specifications

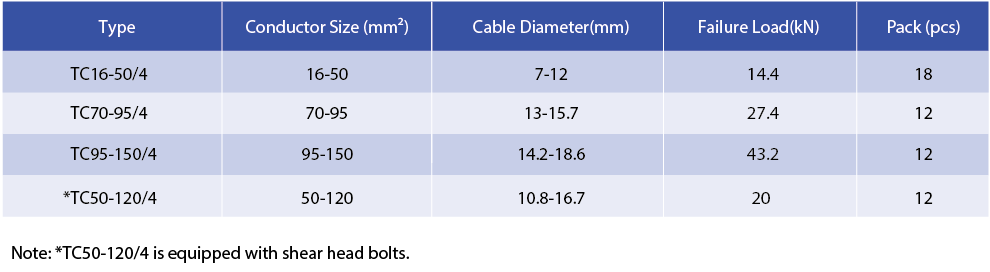

Model Specifications
| Type | Conductor Size (mm²) | Diameter (mm) | Failure Load (kN) | Pack (pcs) |
|---|---|---|---|---|
| TC16-50/4 | 16-50 | 7-12 | 14.4 | 18 |
| TC70-95/4 | 70-95 | 13-15.7 | 27.4 | 12 |
| TC95-150/4 | 95-150 | 14.2-18.6 | 43.2 | 12 |
| *TC50-120/4 | 50-120 | 10.8-16.7 | 20 | 12 |
Design Features
- Equipped with mounting bolts
- Strong springs between wedges for easier conductor insertion
- No loose parts to prevent dropping during site installation
- Shear head bolt option available (*TC50-120/4)
- Construction Materials
- Galvanized SteelAnti-UV PolymerWeather Resistant
