LV-ABC Line Tension Clamp
These tension clamps are designed for four core self-supporting LV-ABC lines. They are used for anchoring and tightening insulated conductors.
Technical Specifications
Product Overview
LV-ABC Tension Clamp

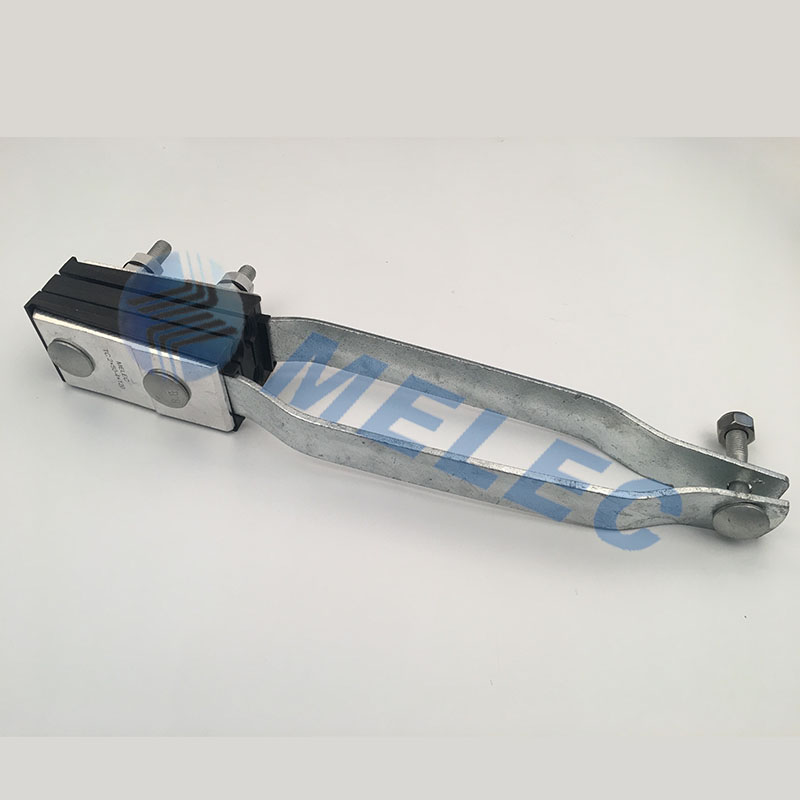

The TC tension clamp is designed for anchoring and tightening four-core self-supporting LV-ABC insulated conductors. These clamps feature high-strength, anti-UV, and weather-resistant wedges, ensuring long-term performance in outdoor conditions. The assembly is built for safety and convenience, including integrated bolts to ensure no loose parts fall during installation.
Technical Specifications
Performance Data
| Type | Conductor Size (mm²) | Cable Diameter (mm) | Failure Load (kN) | Pack (pcs) |
|---|---|---|---|---|
| TC16-50/4 | 16-50 | 7-12 | 14.4 | 18 |
| TC70-95/4 | 70-95 | 13-15.7 | 27.4 | 12 |
| TC95-150/4 | 95-150 | 14.2-18.6 | 43.2 | 12 |
| TC50-120/4 | 50-120 | 10.8-16.7 | 20 | 12 |
Materials and Design
- Construction Materials
- Galvanized steelWeather resistant materialAnti-UV material
Installation Features
Installation Highlights
- Equipped with mounting bolts
- Strong springs facilitate conductor insertion
- No loose parts to prevent installation accidents
- Shear head bolts available for TC50-120/4 model
