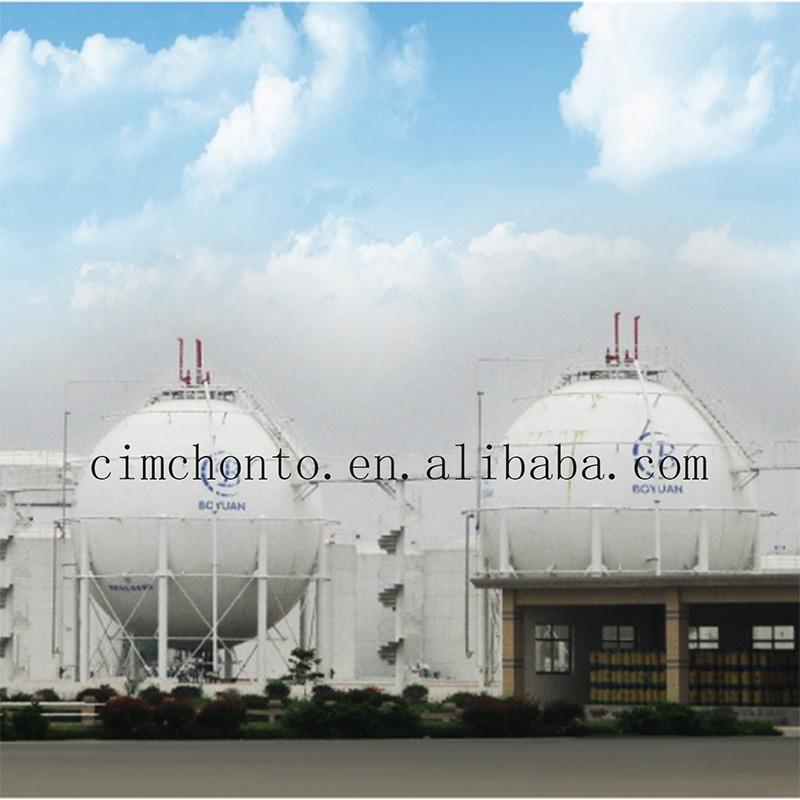

LPG Spherical Storage Tank
This spherical tank is designed for the efficient storage of LPG. It is built to ASME standards and can be made from materials such as stainless steel and 9Ni steel.
Technical Specifications
Overview
Industrial LPG Storage Solution

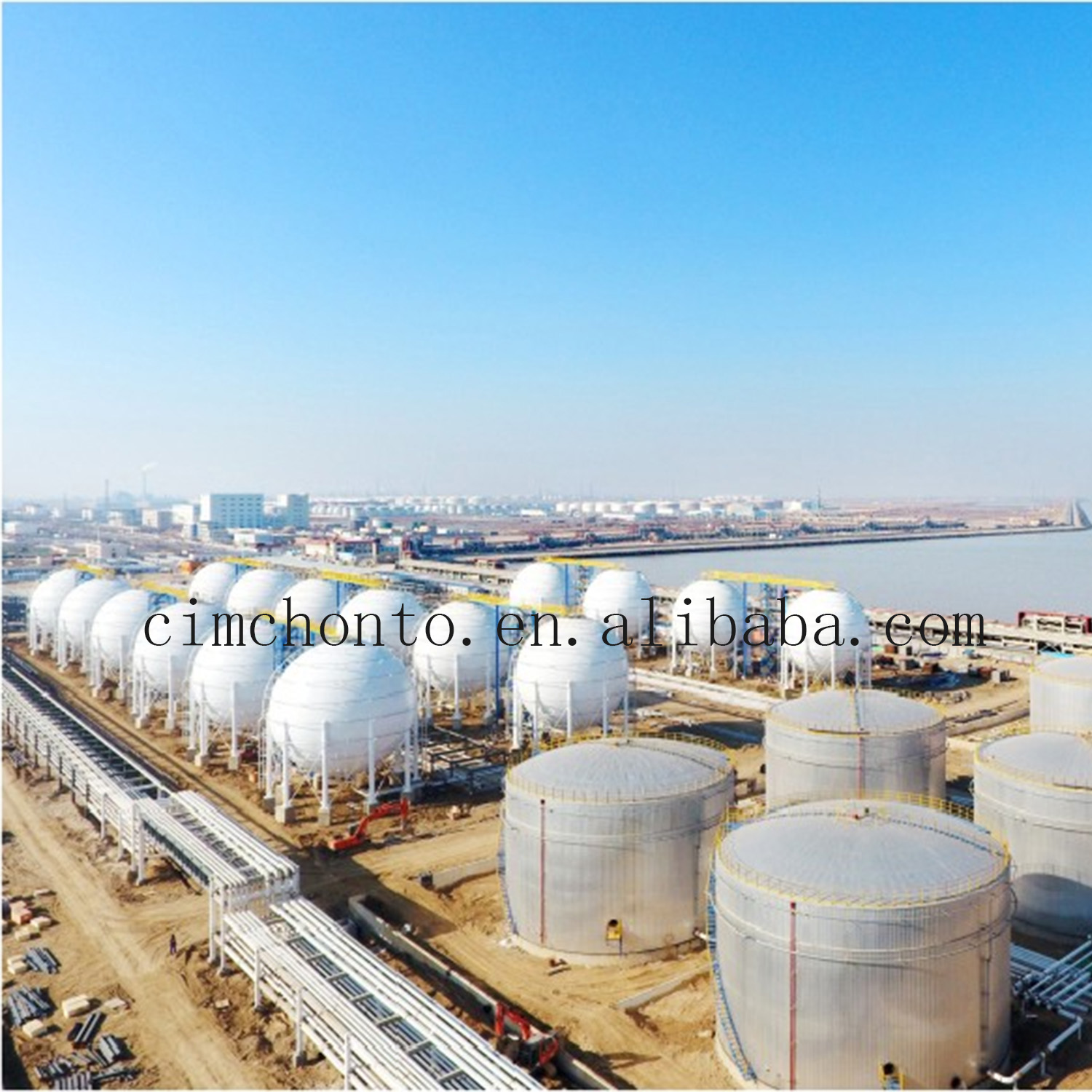

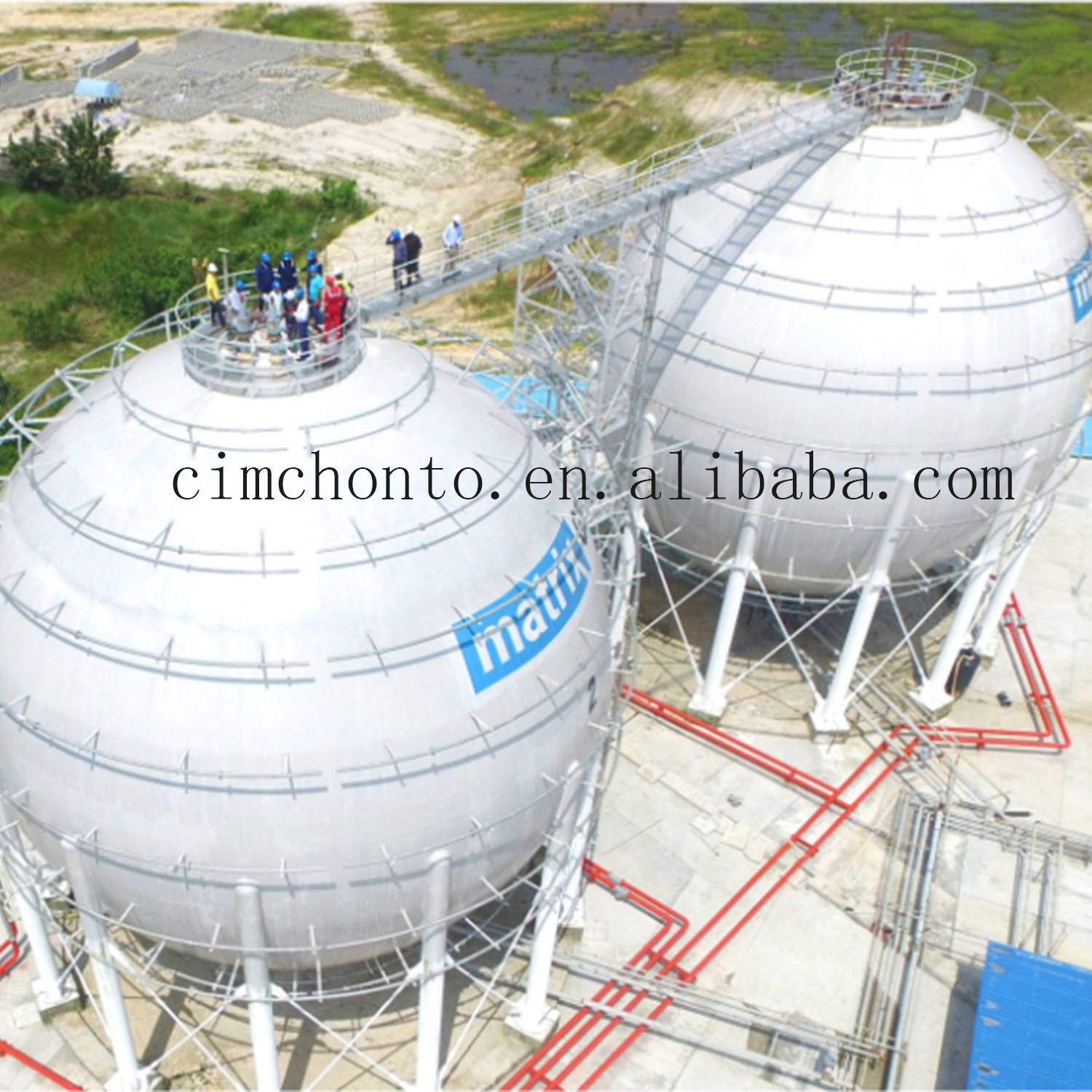

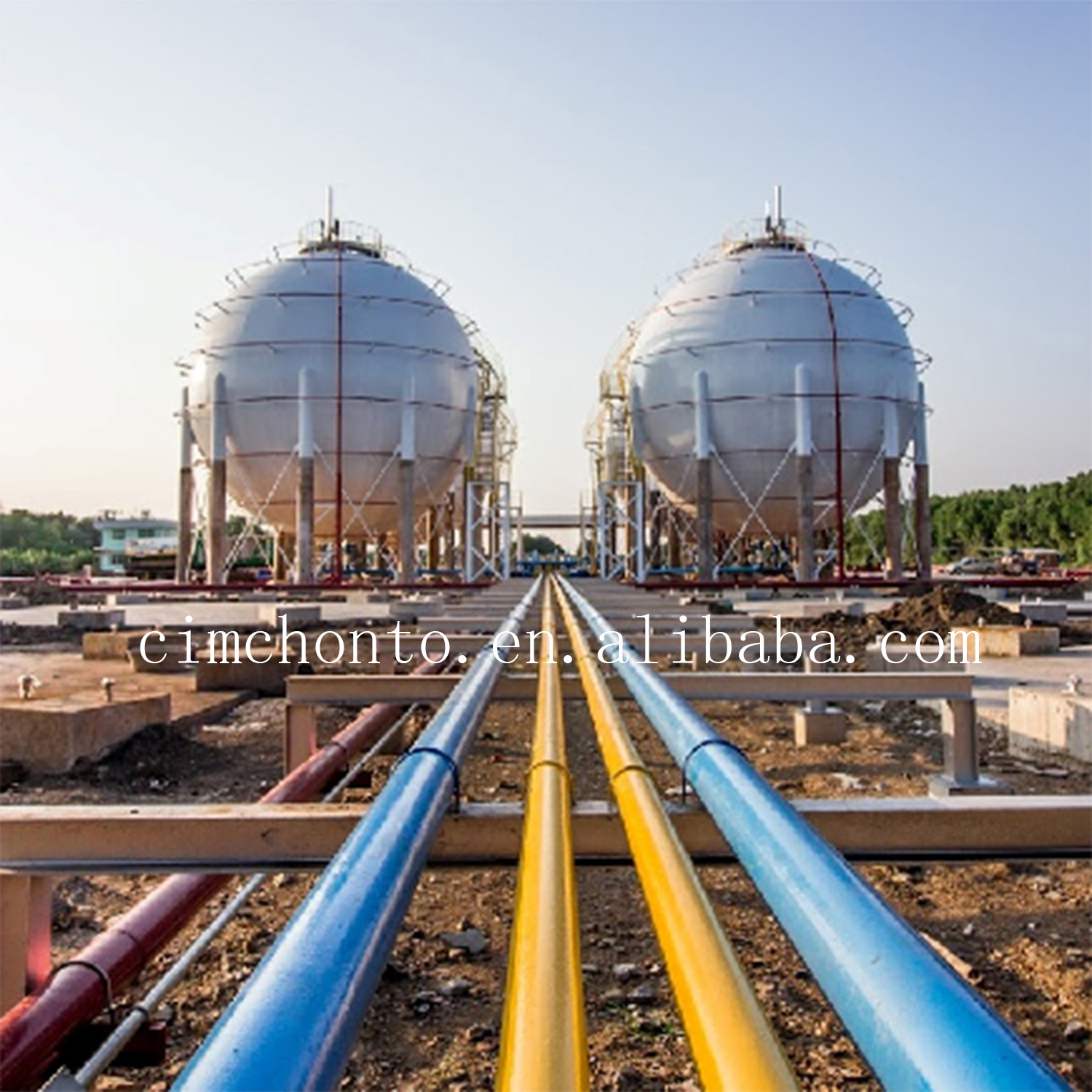

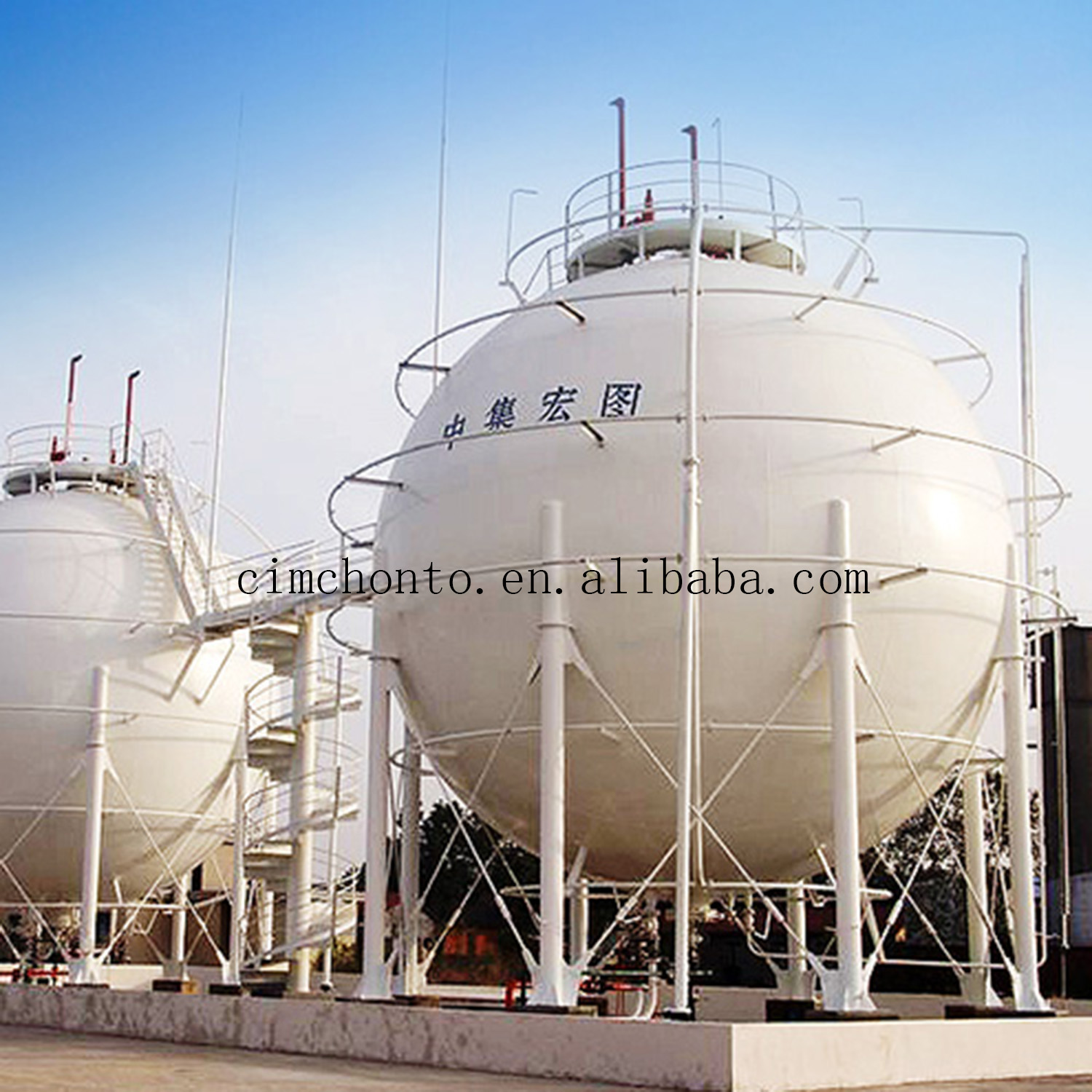

These large-capacity spherical storage tanks are engineered for the safe and efficient containment of liquefied petroleum gas (LPG) under pressure. Designed for high-volume industrial applications, such as petrochemical plants and gas distribution terminals, the spherical geometry optimizes structural integrity and minimizes stress concentration. The tanks are fabricated using advanced hydraulic pressing techniques and are compatible with various high-grade steel materials to meet stringent international safety standards.
Technical Specifications
Capacity Range
- Liquid Gas: 50m³ ~ 10,000m³
- Gas: 200m³ ~ 20,000m³
Compatible Materials
SA-516SA-537 CL1SA-537 CL2Q370RStainless Steel9Ni Steel
- Design Codes
- ASME BPVC VIII-1ASME BPVC VIII-2GB/T 12337JB/T 4732
Manufacturing Capabilities
- Max Shell Plate Pressing
- 80 mm
Services
Integrated Project Services
- Engineering Design & EPC Services
- System Design
- Key Equipment Manufacturing
- Onsite Installation & Commissioning
- Personnel Training
- Operation Technical Support
