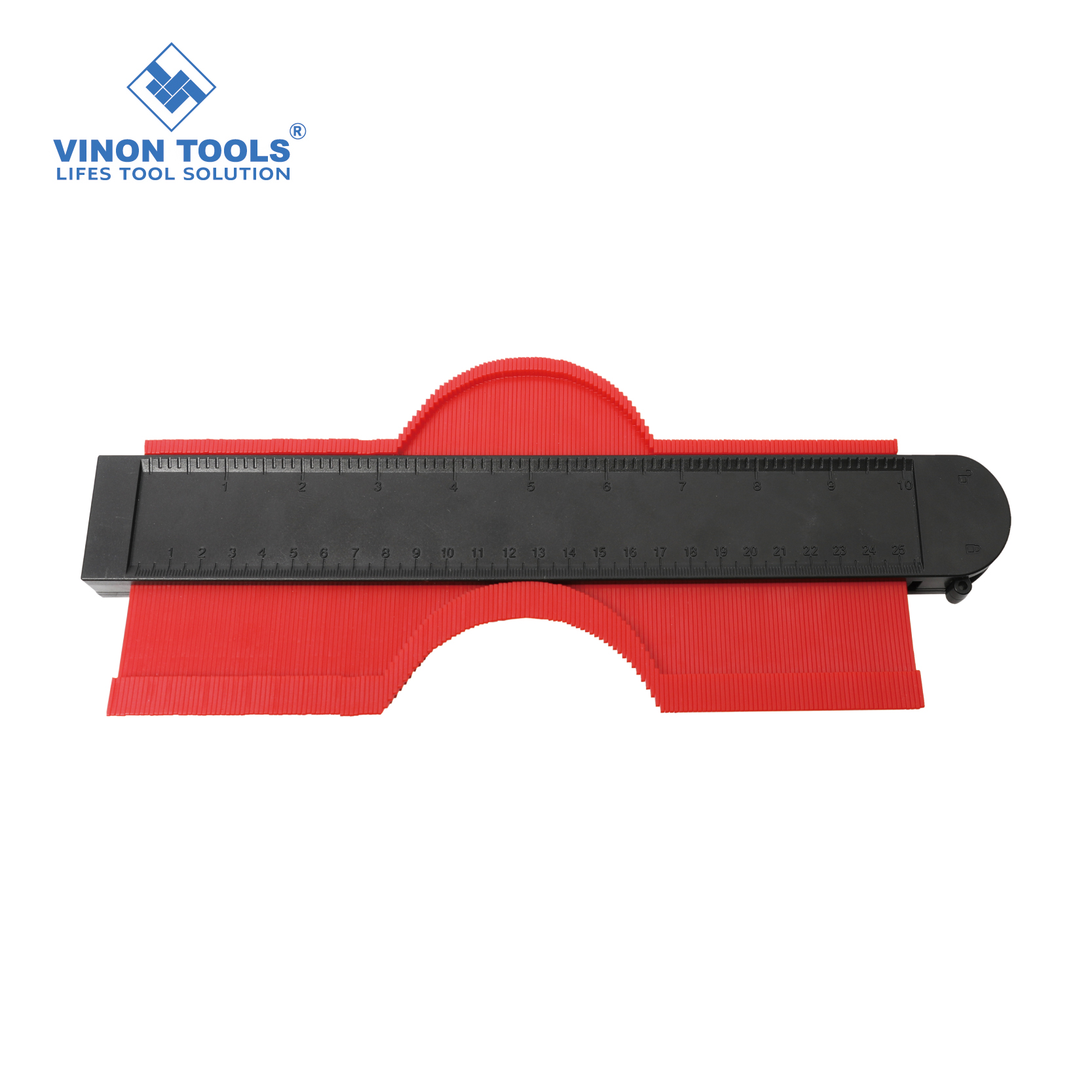

Lockable Contour Gauge
This lockable contour gauge is designed for precisely transferring shapes and contours. The locking mechanism secures the pins in place, allowing for accurate transfer of the contour to another surface.
Technical Specifications
Product Overview
Precision Shape Duplication
This lockable contour gauge is a versatile tool engineered for precisely transferring complex shapes and contours onto various materials. It features a high-density array of fine pins that conform seamlessly to the profile of any object. The integrated locking mechanism securely holds the pins in place, ensuring accurate duplication for woodworking, tiling, flooring, and metalworking projects.
Technical Specifications
- Material
- Durable Plastic
- Measurement Range
- 25 cm
- Key Features
- Locking MechanismHigh-Density PinsIntegrated Measurement MarkingsCompact Design
Applications
Suitable Applications
- Woodworking
- Tiling
- Flooring Installation
- Metalworking
- General DIY Projects
How to Use
Instructions
| Step | Action |
|---|---|
| 1 | Place gauge against the item to be measured. |
| 2 | Push firmly to create the correct template. |
| 3 | Engage the locking mechanism to secure pins. |
| 4 | Transfer the template to the workpiece and mark accordingly. |
| 5 | Cut and fit the material as required. |
