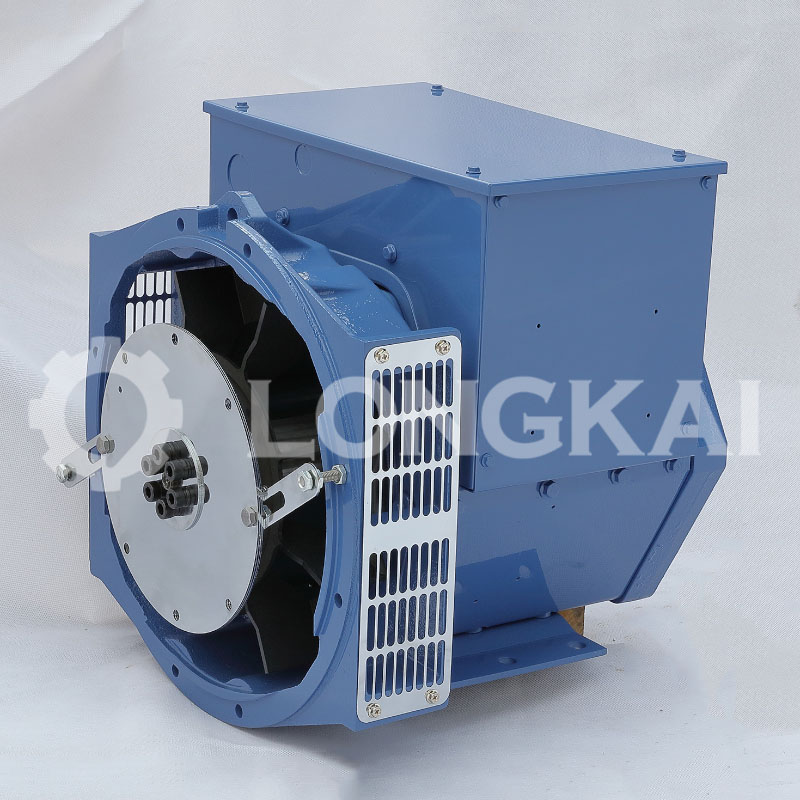

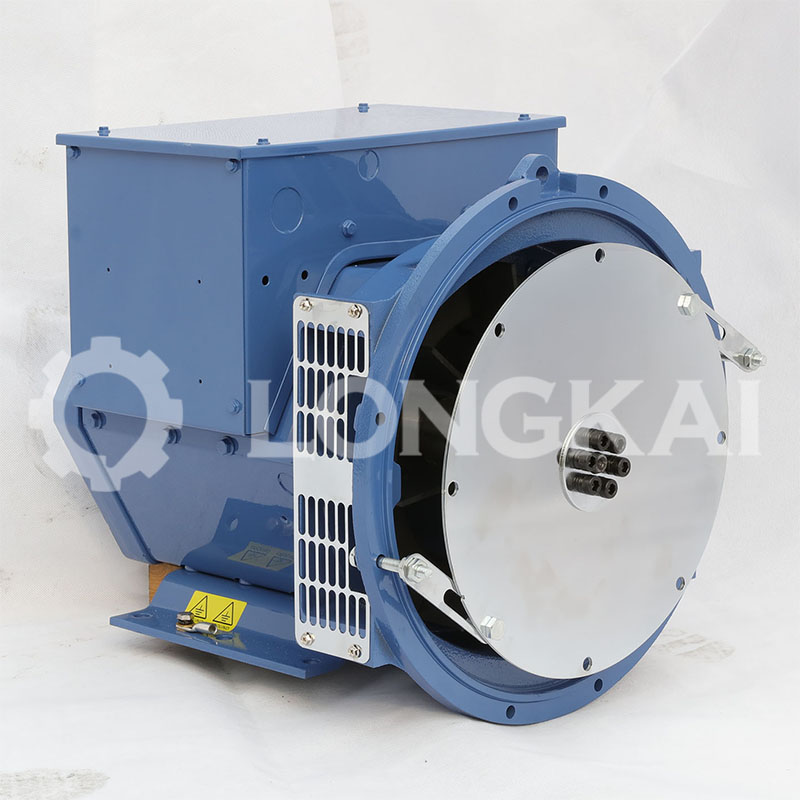

LK Series Alternator
The LK Series Alternator is a robust and efficient power generation solution designed for a variety of applications. It is engineered to provide stable and efficient power output, making it suitable for both prime and standby power systems.
Technical Specifications
Overview
High-Performance Synchronous Alternators
This series of brushless synchronous alternators is engineered for reliable power generation in both standby and prime applications. Featuring a robust steel shell construction and an advanced full-damping rotor design, these units ensure stable operation even in rugged environments. Equipped with automatic voltage regulation (AVR) and brushless self-exciting technology, they deliver consistent performance suitable for critical infrastructure like telecommunications, hospitals, and industrial facilities.
Technical Specifications
Insulation Class
Class H
Protection Class
IP23
- Voltage
- 400/230V or 230V (optional)
- Frequency
- 50Hz60Hz
- Rated Speed
- 1500/1800 rpm
- Pole Number
- 4
- Power Factor
- 0.8 / 1
Performance Metrics
Voltage Regulation
1 %
Stable Voltage Rate
Waveform Distortion
| Parameter | Limit |
|---|---|
| Telephone Harmonic Factor (THF) | < 2.5% |
| Telephone Interference Factor (TIF) | < 50 |
Operating Conditions
Environmental Limits
- Altitude: Not exceeding 1000m
- Cooling Air Temperature: -15°C to 40°C
- Relative Humidity: Not exceeding 90%
Applications
- Common Applications
- TelecommunicationsData CentersAirportsHospitalsIndustrial FactoriesMarine PowerMining
