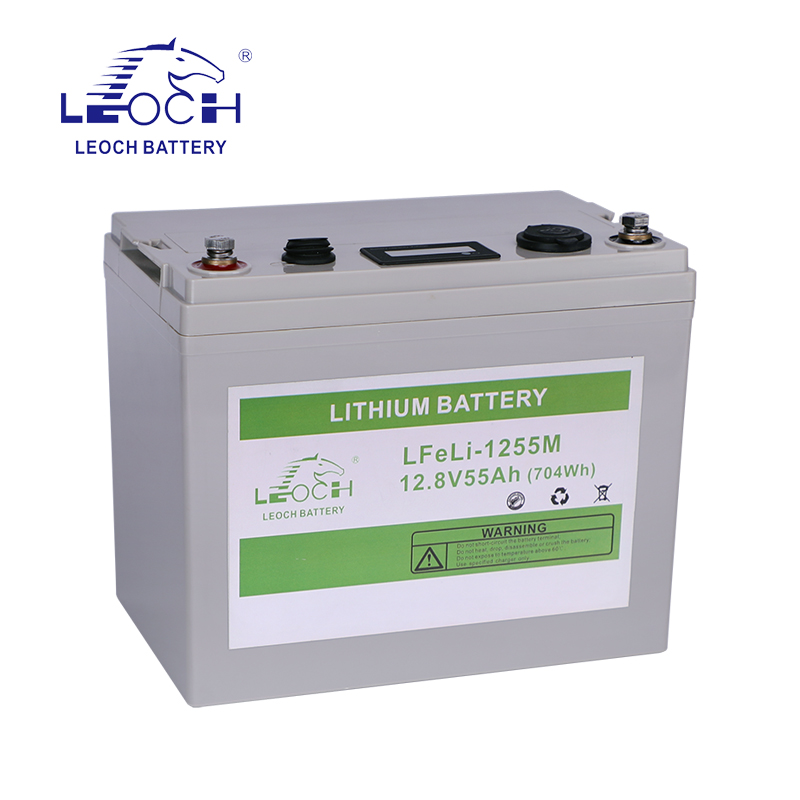

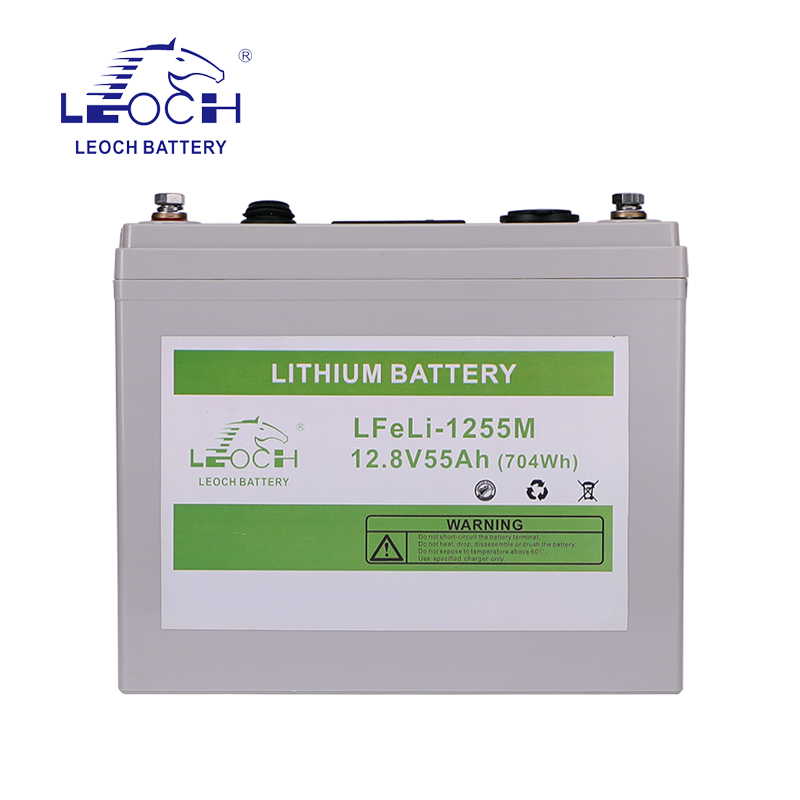

Lithium Iron Phosphate Battery 12.8V 55Ah
This lithium iron phosphate (LiFePO4) battery features a nominal voltage of 12.8V and a capacity of 55Ah, providing 704Wh of energy. It offers a long cycle life and excellent safety features.
Technical Specifications
Overview
High-Performance Lithium Iron Phosphate Battery
This 12.8V 55Ah Lithium Iron Phosphate (LiFePO4) battery is designed as a high-efficiency, drop-in replacement for traditional lead-acid batteries. Engineered for superior safety and longevity, it offers up to 20 times the cycle life of lead-acid alternatives while being 40% lighter. With excellent thermal stability and fast-charging capabilities, it is an ideal power solution for demanding applications ranging from electric mobility to renewable energy storage systems.
Technical Specifications
- Nominal Voltage
- 12.8 V
- Rated Capacity
- 55 Ah
- Total Energy
- 704 Wh
- Dimensions (L x W x H)
- 229 x 138 x 205 mm
Performance Metrics
Performance Highlights
2,000 Cycles @ 80% DOD
Cycle Life
95 % in 1hr
Fast Charge Capability
2 %/month
Self-Discharge Rate
- Operating Temperature
- -20°C to +60°C
Features
Key Advantages
- Environment-friendly (no heavy metals)
- Drop-in replacement for lead-acid batteries
- 40% lighter weight than comparable lead-acid units
- Superior safety chemistry prevents combustion/explosion
- No memory effect
Applications
- Suitable Applications
- Electric VehiclesTelecommunicationLightingSolar/Wind Energy StorageMedical Equipment
