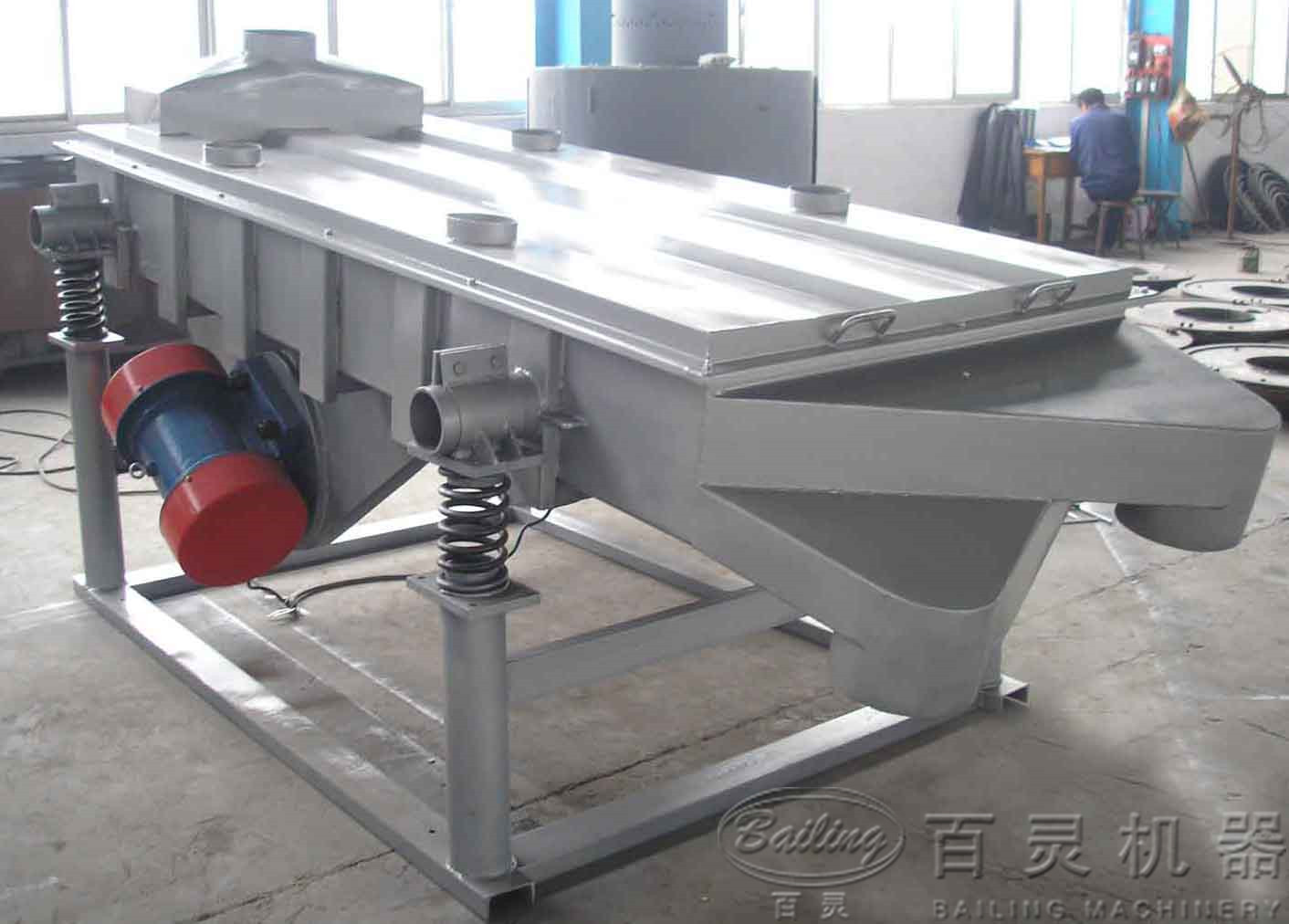

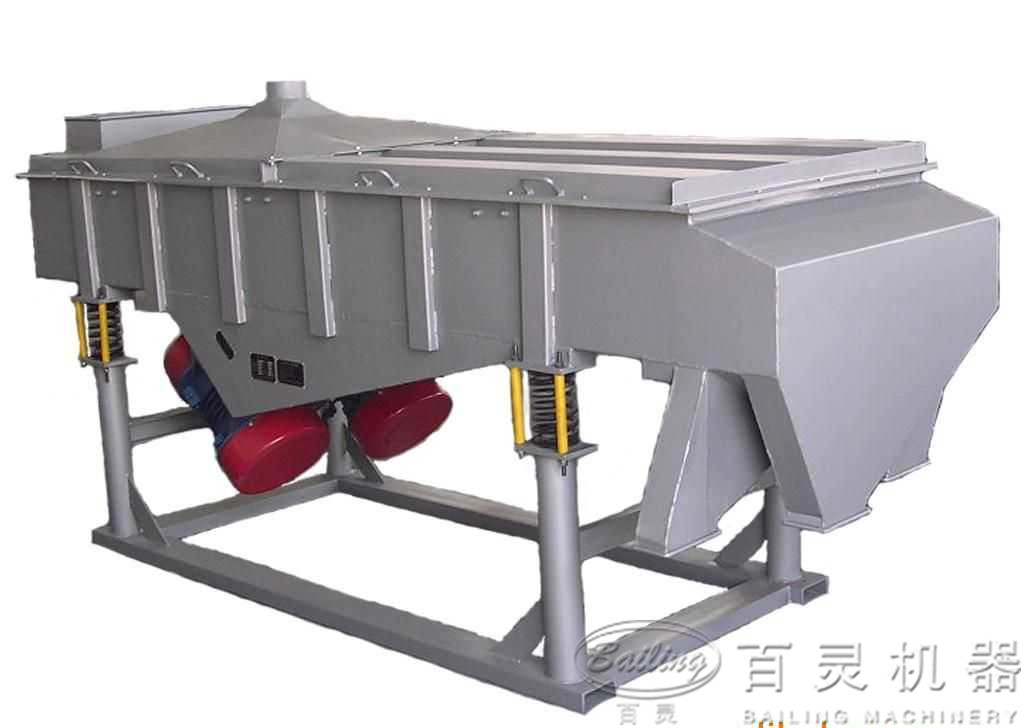

Linear Vibrating Screen for Material Separation
This linear vibrating screen uses a motor as its vibration source, enabling materials to be thrown upward and forward on the screen in a straight line. It is suitable for assembly line integration due to its enclosed structure and automated features.
Technical Specifications
Overview
High-Efficiency Linear Vibrating Screen
This linear vibrating screen utilizes a motor-driven vibration source to effectively throw material up and forward in a straight line for precise separation. Designed for industrial reliability, it features a fully enclosed structure to prevent dust overflow, ensuring a cleaner working environment. The system offers high yield and low energy consumption, making it an ideal solution for continuous processing assembly lines.
Key Features
Key Advantages
- Low energy consumption and high yield
- Simple, robust structure for easy maintenance
- Fully enclosed design prevents dust overflow
- Quick-change net design with rapid tensioning
- Adjustable screen surface angle based on material requirements
Technical Specifications
Model Specifications
| Model | Dimensions (mm) | Power (kW) |
|---|---|---|
| p | 500×2000 | 2×(0.4-0.75) |
| SZF-525 | 500×2500 | 2×(0.4-0.75) |
| SZF-1020 | 1000×2000 | 2×(0.4-0.75) |
| SZF-1025 | 1000×2500 | 2×(0.4-1.1) |
| SZF-1030 | 1000×3000 | 2×(1.1-1.5) |
| SZF-1040 | 1000×4000 | 2×(1.1-1.5) |
| SZF-1235 | 1000×3500 | 2×(1.1-2.2) |
| SZF-1250 | 1200×5000 | 2×(1.1-2.2) |
| SZF-1535 | 1500×3500 | 2×(1.1-2.2) |
| SZF-1560 | 1500×6000 | 2×(2.2-3.7) |
| SZF-1845 | 1800×4500 | 2×(2.2-3.7) |
| SZF-2050 | 2000×5000 | 2×(2.2-3.7) |
| SZF-2260 | 2200×6000 | 2×(2.2-3.7) |
Operating Parameters
- Material Granularity
- 0.074-15 mm
- Screen Angle
- 7 degree
- Amplitude
- 10 mm
- Screen Layers
- 1-6 layer
