Technical Specifications
Product Overview
Reliable Emergency Guidance

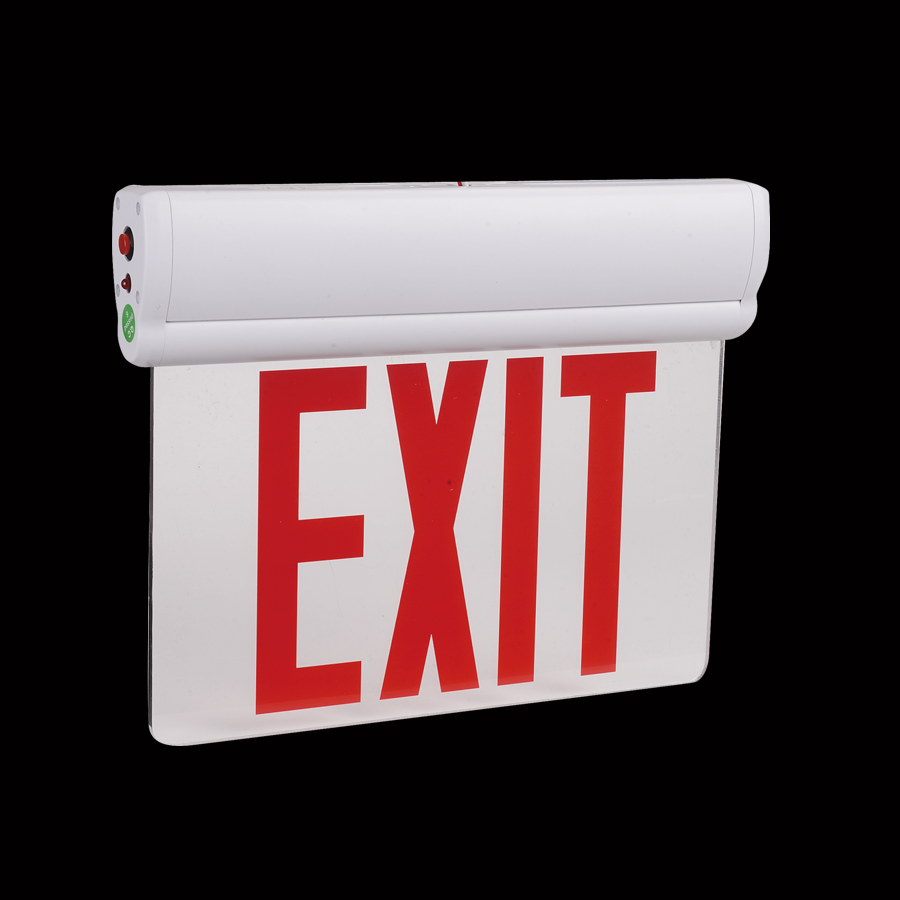

This UL-listed LED exit sign is engineered for maximum reliability in emergency situations, featuring durable injection-molded ABS housing. It utilizes energy-efficient LED technology to ensure clear visibility during power outages, making it an essential component for commercial and residential safety. The integrated backup system provides extended operation to guide occupants safely to exits.
Technical Specifications
Power Consumption
3 W
Max Power Draw
1 W
Output Power
- Input Voltage
- 120V277V
Emergency Performance
- Emergency Duration
- 90 minutes
- Charging Time
- 24 hours
Physical Dimensions
Physical Dimensions
| Dimension Type | Value (mm) |
|---|---|
| Length | 310 |
| Height | 257 |
| Depth | 46 |
Environmental Requirements
- Operating Temperature
- 0°C to 40°C
Certifications
Safety Compliance
UL Listed
