Technical Specifications
Overview
High-Performance Outdoor Illumination

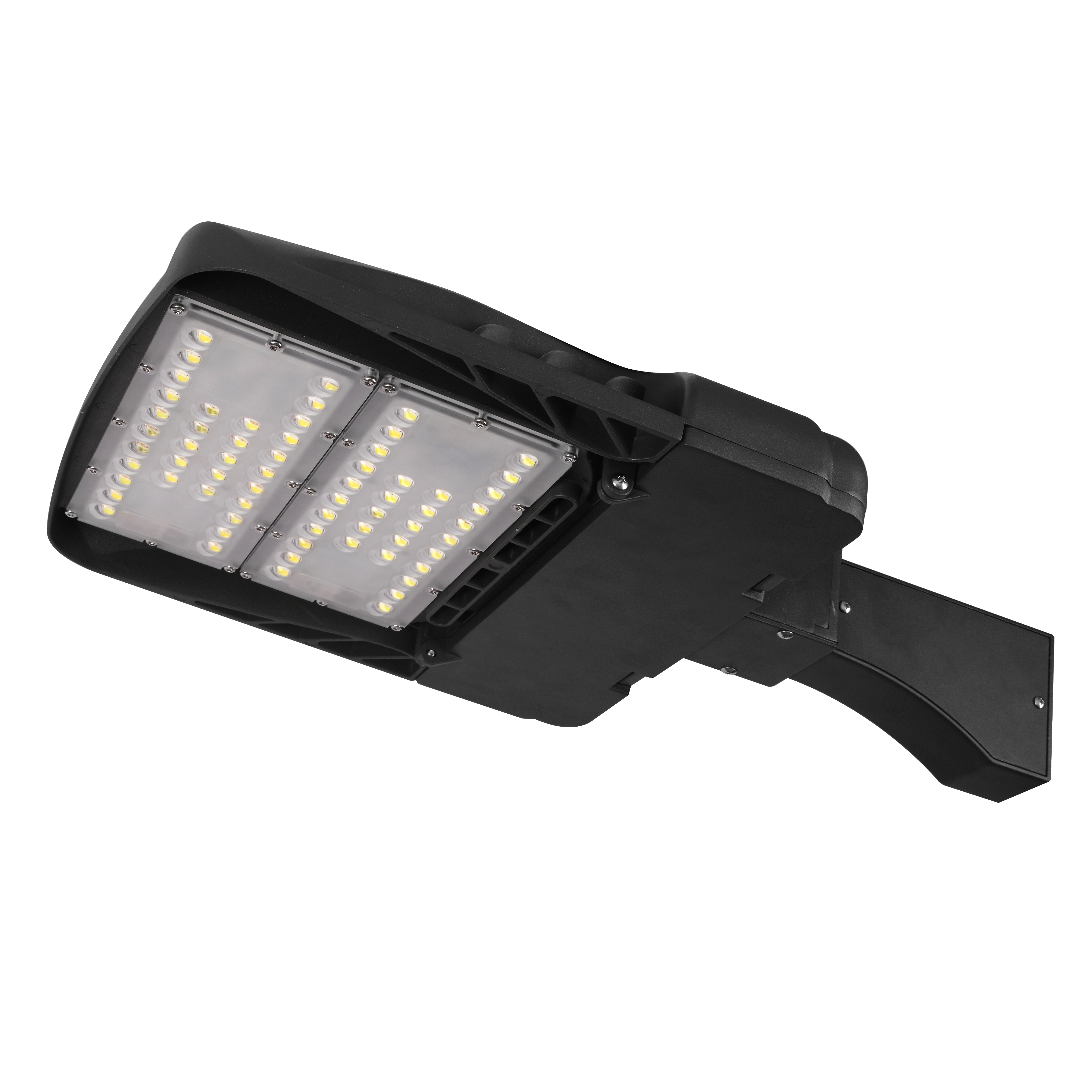

This LED Area Light is a robust solution for parking lots and outdoor spaces, offering high luminous efficacy up to 120lm/W. Built with advanced Driver on Board (DOB) technology and Cree SMD 5050 LEDs, it ensures a long lifespan exceeding 100,000 hours without the need for capacitors. With multiple mounting options and a 10-year manufacturer warranty, it provides reliable, quiet, and maintenance-free lighting for commercial and industrial applications.
Performance
Performance Highlights
120 lm/W
Luminous Efficacy
100,000 h
Rated Life
10 Years
Warranty
Electrical Specifications
Power Selection
- 150W
- 200W
- 300W
- Input Voltage
- 120-277V AC
- Power Factor
- 0.99
- Total Harmonic Distortion
- <15%
Lighting Profile
- Color Temperature (CCT)
- 3000K4000K5000K5700K
- Optical Distributions
- Type IIType IIIType IVType V
Construction & Installation
Mounting Types
- Arm Mount
- Slipfitter Mount
- Trunnion Mount
- Housing Colors
- BronzeBlackWhiteGrey
Features & Controls
Advanced Features
- 0-10V Dimming
- 10KV/20KV Surge Protection Device (Optional)
- Deadly quiet operation (No noise)
- No capacitor design for longer lifespan
- Photocell Options
- 3 Pin5 Pin7 Pin
Compliance & Environment
Certifications
cULusDLCENECCERoHsIDAFCC
- Environmental Rating
- Suitable for wet locations
