Land Based Drilling Rig
Basic specifications of drilling rig conform to API Specs & SY/T5609-1999 standard. All equipments and accessories are manufactured as per API requirements.
Technical Specifications
Overview
High-Performance Land Based Drilling Rig
This land-based drilling rig is engineered for petroleum prospecting, conforming to rigorous API and SY/T5609-1999 standards. Designed for reliability and safety, it features advanced braking systems and precise control mechanisms to enhance operational efficiency. The rig's robust construction and mobile options make it suitable for diverse drilling environments, including remote locations.
Compliance & Standards
- Industry Standards
- API SpecsSY/T5609-1999API Requirements
Drawworks & Braking
Auxiliary Brake Types
- Eddy current brake
- EATON brake
- Drum Configuration
- Lebus grooves for improved line spooling
Safety Systems
Safety & Monitoring
- Crown-o-matic safety system
- Traveling block height indicator
- Blowout preventer (BOP) system
Technical Components
Key Rig Components

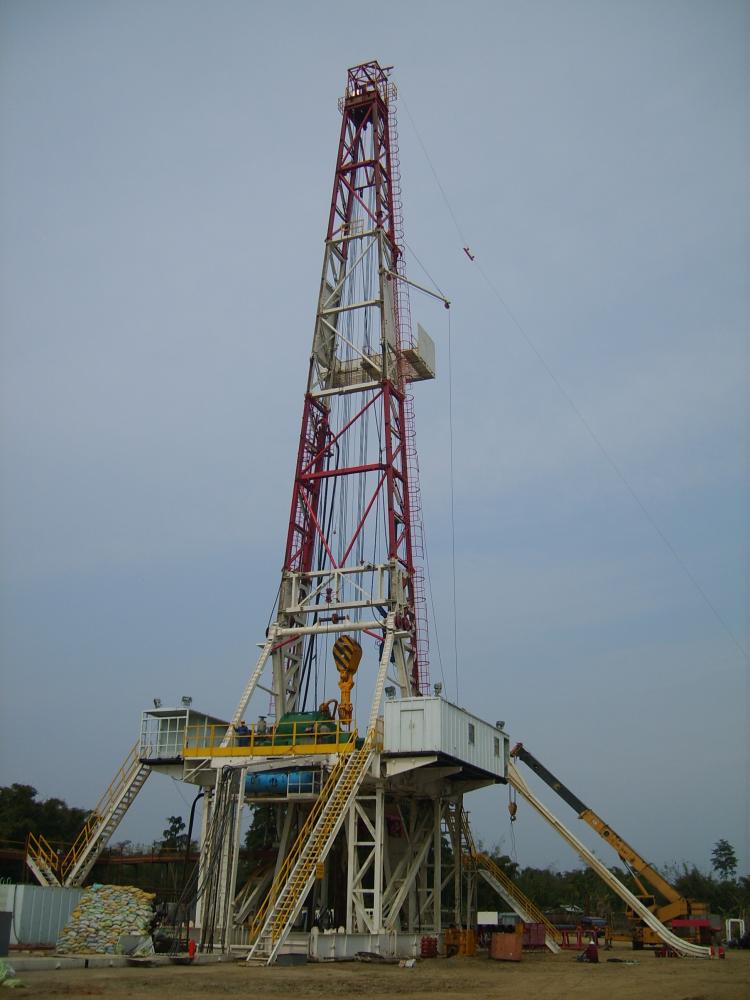

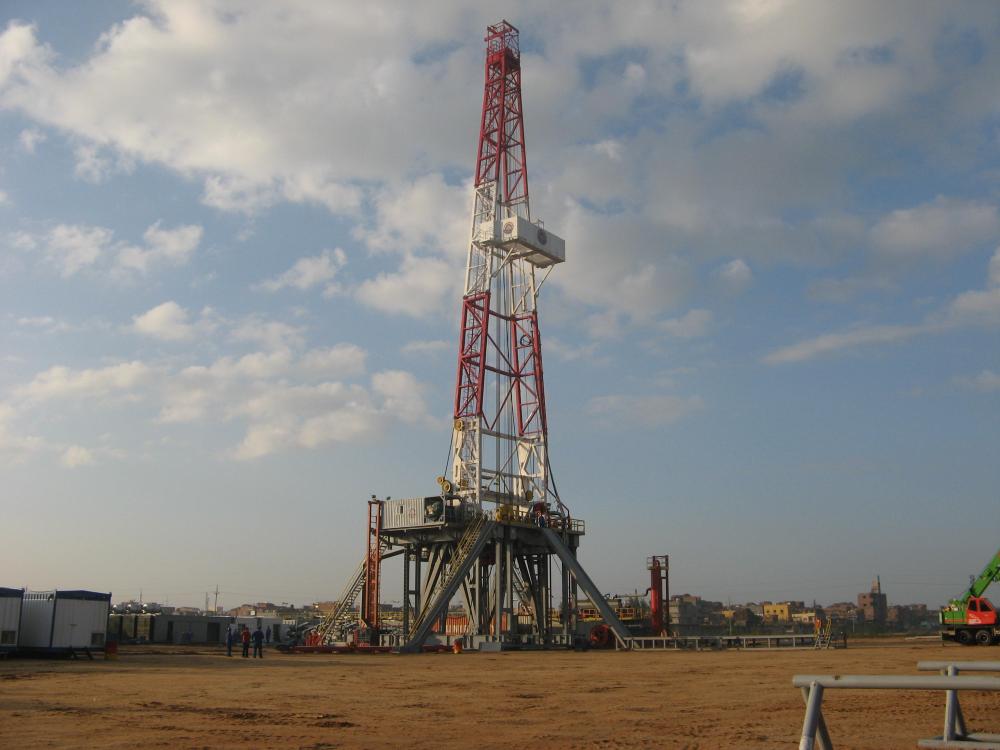

- Tall lattice derrick
- Substructure platform
- Mud pump
- Rotary table
- Drawworks system
- Hoisting cables
Mobility & Structure
Mobility Configuration

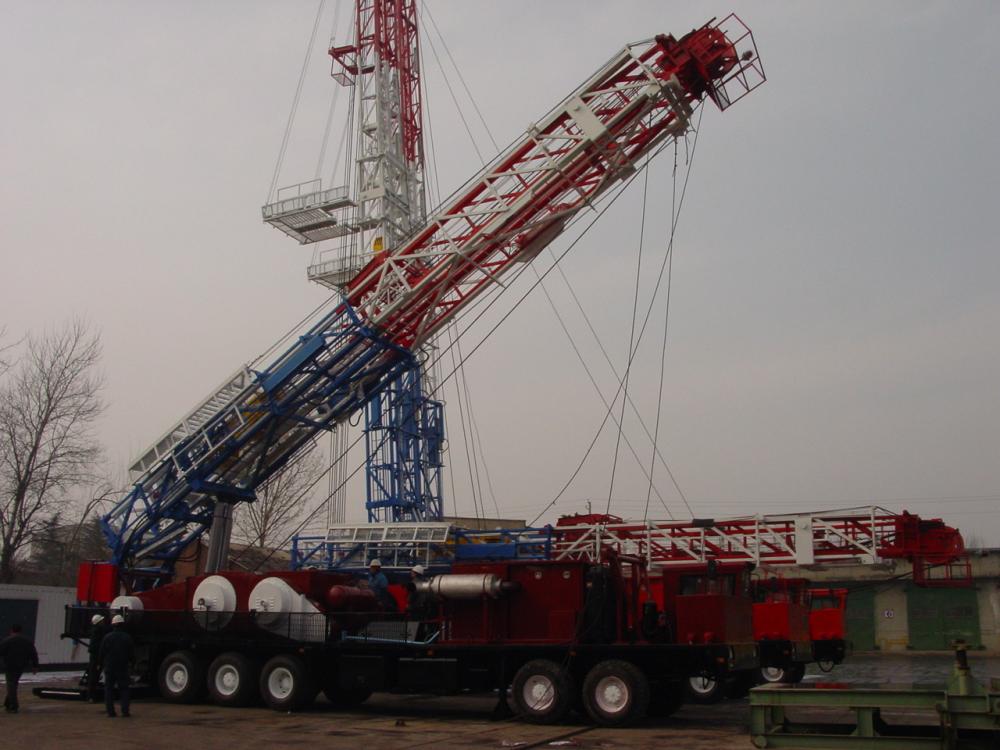

Truck-mounted optionMulti-axle chassisLattice mast structure
Operational Benefits
Performance Highlights
1 System
Precision Control
100 %
API Compliant
