Insulation Piercing Connector Fork Wrench
This fork wrench is designed for holding JBC insulation piercing connectors while tightening bolts. It is constructed from stainless steel and weather-resistant materials.
Technical Specifications
Product Overview
Professional Insulation Piercing Connector Tool
The JCQ fork wrench is a specialized hand tool engineered for secure handling of insulation piercing connectors during bolt tightening. Constructed from durable stainless steel and weather-resistant materials, it ensures reliability in outdoor electrical environments. Its ergonomic design provides the necessary leverage and stability for precise installation tasks.
Technical Specifications
- Material Composition
- Stainless SteelWeather Resistant

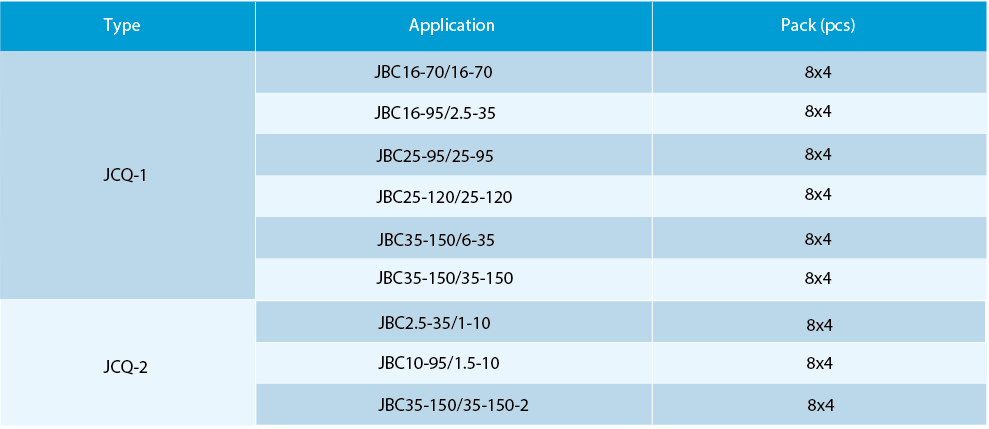

Compatibility & Models
Model Compatibility
| Wrench Type | Compatible Connector Series | Pack Quantity |
|---|---|---|
| JCQ-1 | JBC16-70/16-70 | 8x4 |
| JCQ-1 | JBC16-95/2.5-35 | 8x4 |
| JCQ-1 | JBC25-95/25-95 | 8x4 |
| JCQ-1 | JBC25-120/25-120 | 8x4 |
| JCQ-1 | JBC35-150/6-35 | 8x4 |
| JCQ-1 | JBC35-150/35-150 | 8x4 |
| JCQ-2 | JBC2.5-35/1-10 | 8x4 |
| JCQ-2 | JBC10-95/1.5-10 | 8x4 |
| JCQ-2 | JBC35-150/35-150-2 | 8x4 |
