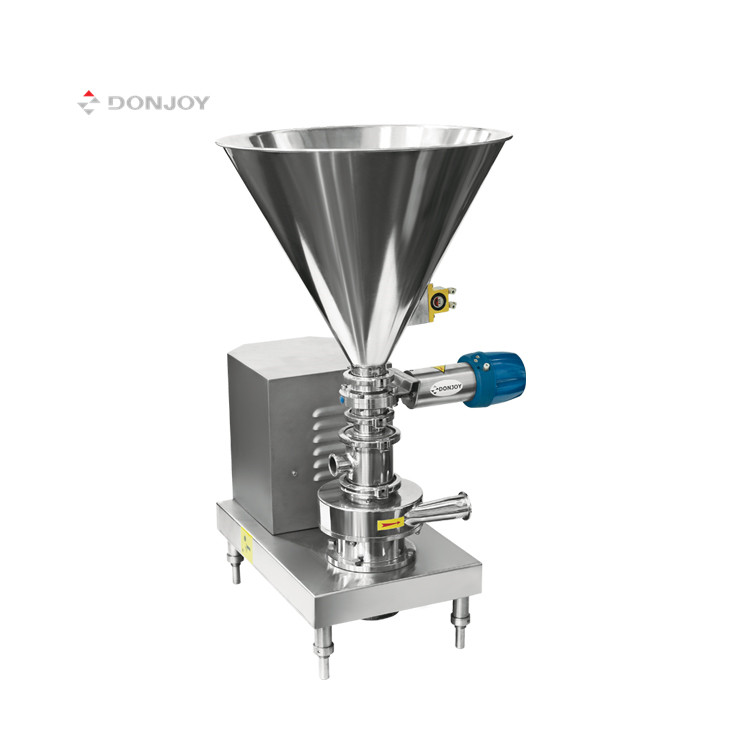

Inline High Shear Mixer Homogenizer
This inline high shear mixer homogenizer is designed for continuous processing of various fluids and materials. Constructed from stainless steel, this unit is suitable for applications requiring intensive mixing, emulsifying, dispersing, and homogenization.
Technical Specifications
Product Overview
High-Performance Inline Homogenizer
This inline high shear mixer homogenizer is engineered for the efficient continuous processing of various fluids and materials. It is designed to seamlessly mix solids into liquids, making it an ideal solution for reconstituting powdered milk, preparing syrups, and formulating brines. With versatile construction options and robust performance capabilities, it serves critical production needs in the pharmaceutical, cosmetics, and chemical industries.
Performance Metrics
Max Powder Capacity
9,000 kg/h
Max Powder Capacity
Max Thickener Capacity
3,000 kg/h
Max Thickener Capacity
- Max Operating Temperature
- 130 °C
Technical Construction
Surface Treatment (Ra)
- Ra≤0.8μm
- Ra≤0.6μm
- Ra≤0.4μm
Mechanical Seal Options
Single Mechanical SealDouble Mechanical Seal
- Material Composition
- 304 Stainless Steel316L Stainless Steel
Connectivity
Inlet/Outlet Connections
- Threaded
- Clamped
- Flange
- Aseptic Flange
Compliance & Certification
Certifications
| Standard | Reference |
|---|---|
| 3-A | 02-10 NO.1579 |
| EC Directive | MD/06/42-EC NO.70521616101-00 |
| FDA | 177.2600 |
| USP | CLASS II |
| EU Regulation | EG/VO 1935/2004 |
