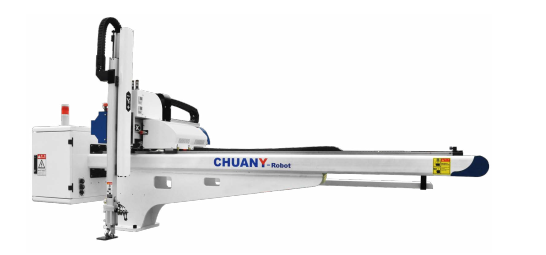

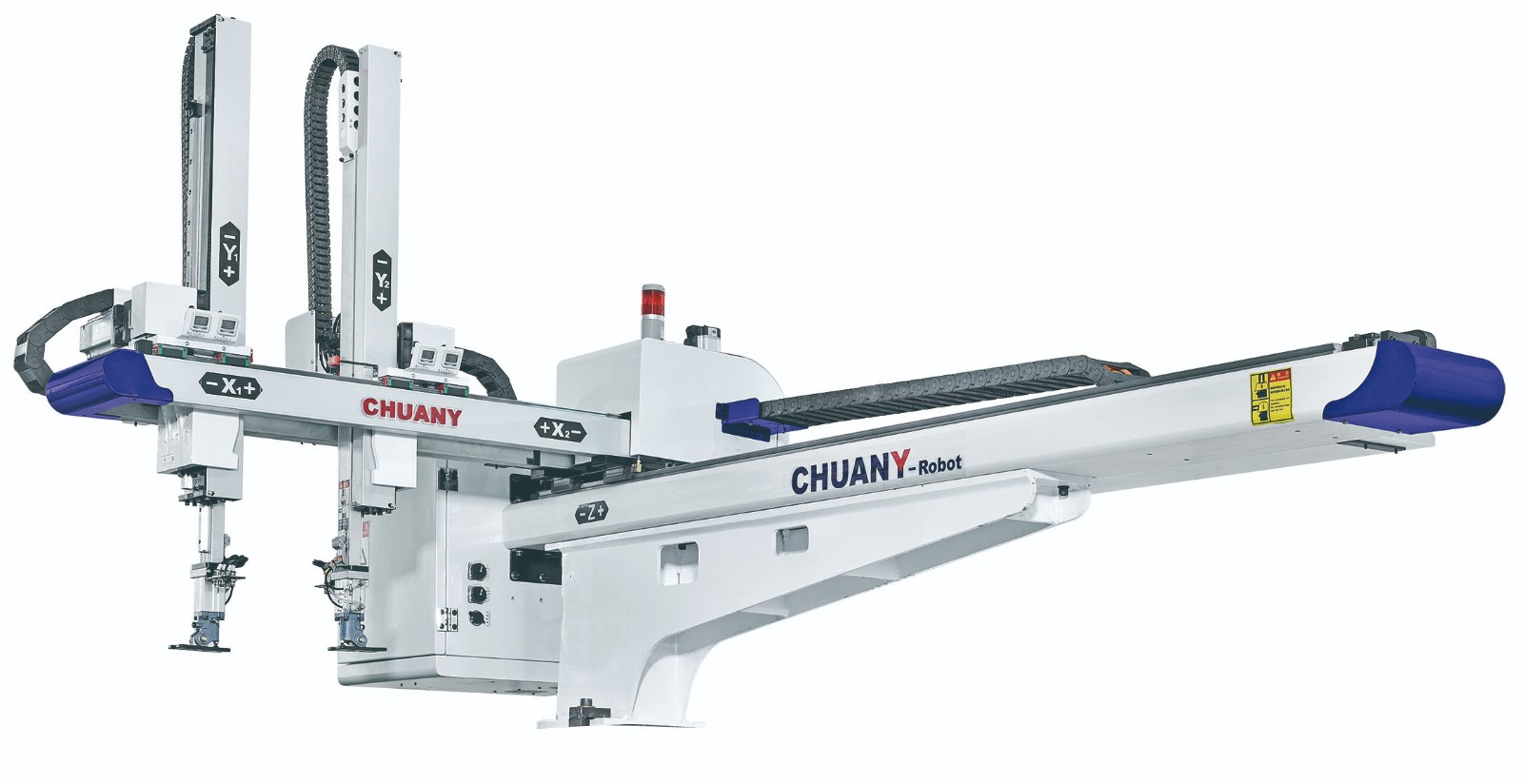

Injection Molding Part Removal Robot
This injection robot is designed for removing parts from injection molding machines, especially those with loose-core fixtures. Its arm structure and speed make it suitable for removing thin-walled products from 300T-500T high speed injection molding machines.
Technical Specifications
Overview
High-Speed Injection Molding Automation
This advanced robot is engineered for rapid part removal in injection molding processes, specifically optimized for thin-walled products. Its frame-type design ensures versatility regardless of product size, making it particularly effective for molds with top-mounted loose-core fixtures. With an in-mold removal time of just 0.8 seconds, it significantly enhances production cycle efficiency for high-speed machines ranging from 300T to 500T.
Performance Metrics
In-Mold Removal Time
0.8 s
Removal Time
- Compatible Machine Tonnage
- 300T - 500T
Technical Specifications
Key Design Features
- Frame-type robot architecture
- Back-installed electric cabinet for shock resistance
- Wheel gear lateral plate structure
- Manual lubrication system on traverse guide rail
Maintenance & Durability
| Feature | Benefit |
|---|---|
| Back-installed cabinet | Improved stability and reduced electronic faults |
| Lateral cylinder piston | Prevents skewing for longer cylinder lifetime |
| Traverse guide rail | Convenient manual lubrication system |
- Axes Configuration
- 3-AxisServo-drivenVertical Arm (Y)Horizontal Arm (X)Crosswise Arm (Z)
