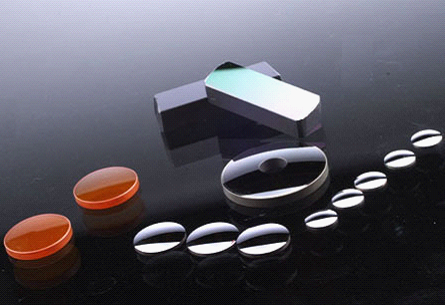

Infrared Optical Lens
This infrared optical lens is suitable for instruments and apparatuses requiring specialized applications. It is engineered for optimal performance within the infrared spectrum, ensuring high transmission and minimal distortion.
Technical Specifications
Product Overview
High-Performance Infrared Optical Lenses
These optical lenses are expertly crafted for demanding applications in image sensors, medical devices, and advanced detector systems. Utilizing premium materials like Silicon and Germanium, they ensure excellent transmission characteristics within the infrared spectrum with minimal signal loss. Each unit is engineered for high refractive index homogeneity and environmental resistance, providing exceptional image quality and minimal distortion for precise optical instruments.
Technical Specifications
Surface Treatments
AR Coating Available
Silicon Lens Production Capacity
20,000 pieces
Monthly Capacity
Design Parameters
- Radius (R)
- Center Thickness (tc)
- Edge Thickness (te)
- Diameter (Ø)
- Available Materials
- SiliconGermanium
Applications
Primary Applications
- Image Sensors
- Medical Devices
- Detector Applications
- Thermal Imaging Systems
- Infrared Spectroscopy
