Technical Specifications
Overview
Versatile Industrial Power Distribution

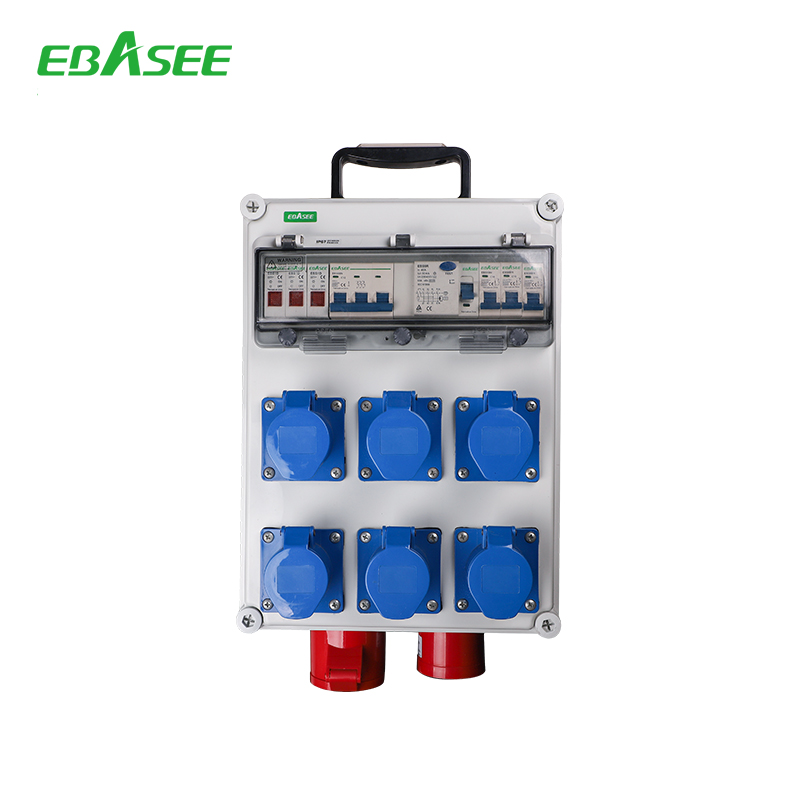

This IP65-rated industrial socket distribution box is designed for robust power transmission in demanding environments. It features a customizable configuration of sockets and plugs to meet specific site requirements, housed in a high-impact ABS enclosure. With integrated circuit breakers and a professional hinge design, it ensures both safety and ease of operation for industrial, commercial, and residential applications.
Key Metrics
Featured Specifications
65 IP
Protection Rating
32 A
Main Input
6 kA
Breaking Capacity
Technical Configuration
Model Details
| Component | Specification |
|---|---|
| Model Name | EBX13 |
| Enclosure Size | 280*380*130mm |
| Sockets | 6 x 2P+E 16A 220V (E-313) |
| Plug/Inlet | 1 x 3P+N+E 32A 380V (E-6252) |
| Total Control | 32A 3P 6kA (EBS6BN) |
| Individual Outlets | 6 x 16A 1P 6kA (EBS6BN) |
| RCCB Protection | 40A 30mA (EBS6R) |
Physical Properties
Dimensions
- Width: 280mm
- Height: 380mm
- Depth: 130mm
- Enclosure Material
- ABS Impact Resistance
Features & Customization
Key Features
- IP65 Waterproof and Dustproof rating
- Fully completed internal connections
- Professional hinge for easy operation
- Customizable socket selection
- Available for 13P configurations
- Customizable
- Yes
Compliance
- Quality Standards
- CERoHSTUVKEMACBSEMKOCCC
