Technical Specifications
Product Overview
Industrial Power Distribution Solution

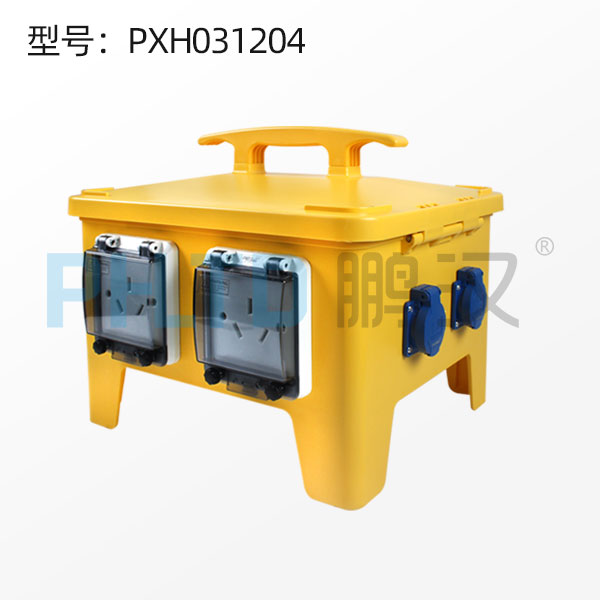

This industrial-grade power outlet box is engineered for robust power distribution and overhaul applications in demanding environments. Constructed from durable ABS engineering plastic, the unit comes pre-wired to facilitate direct and efficient installation. It features a comprehensive safety system, including a main air switch and individual branch leakage protectors, ensuring reliable operation for various industrial tools and equipment.
Technical Specifications
Rated Current
63 A
Rated Current
Protection Level
IP44
- Enclosure Material
- ABS Engineering Plastic
Physical Dimensions
- Dimensions (L x W x H)
- 370mm x 340mm x 330mm

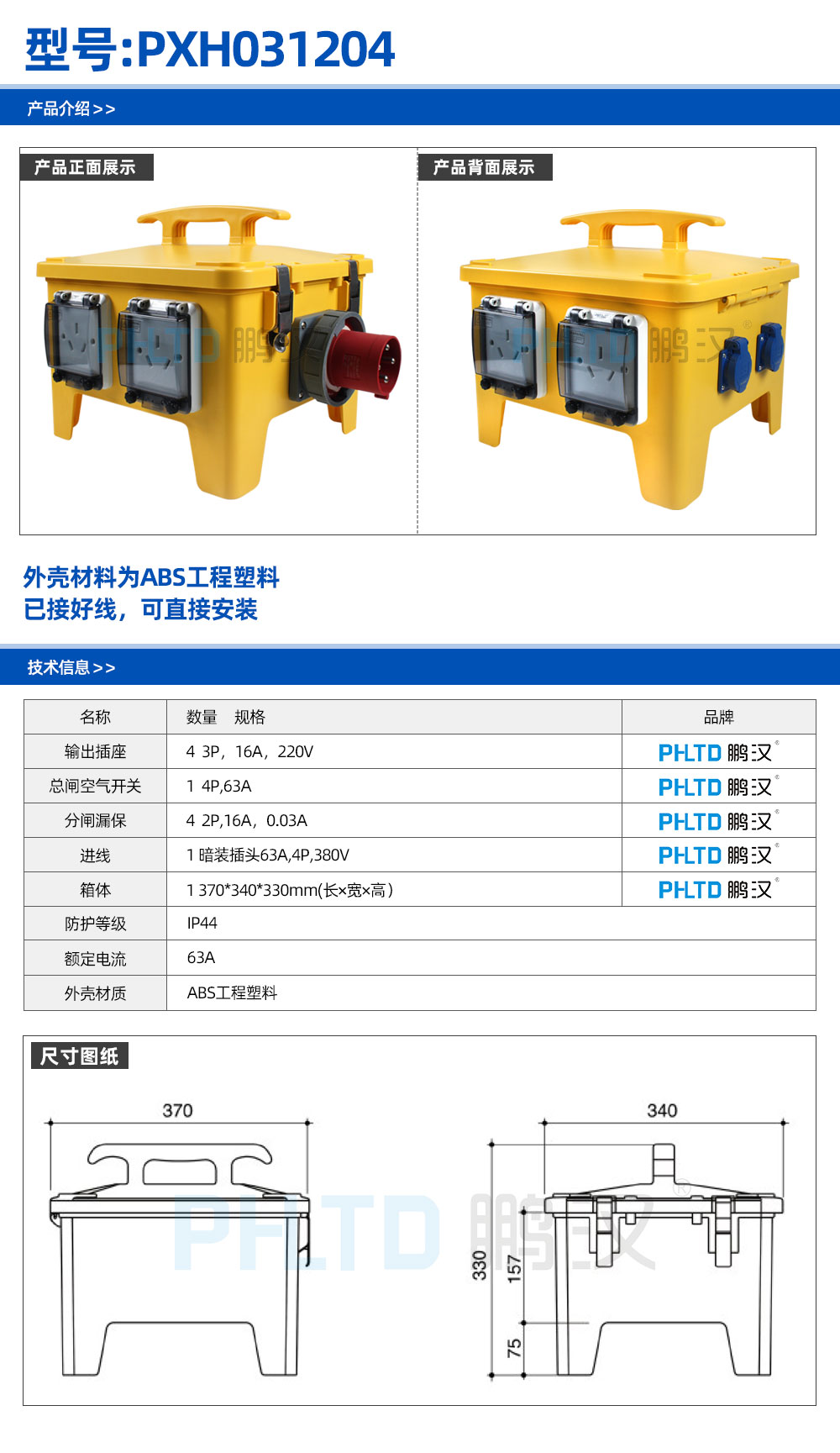

Components & Configuration
Component Configuration
| Component | Quantity | Specification |
|---|---|---|
| Output Sockets | 4 | 3P, 16A, 220V |
| Main Air Switch | 1 | 4P, 63A |
| Branch Leakage Protectors | 4 | 2P, 16A, 0.03A |
| Wiring Inlet | 1 | Concealed Plug, 63A, 4P, 380V |
Certifications
- Compliance
- CQCCCCISO 9001
