Technical Specifications
Overview
Industrial Power Distribution Solution
This industrial portable power distribution box is designed for demanding environments such as construction sites and workshops. It features a rugged ABS engineering plastic enclosure and comes pre-wired for immediate installation. With multiple output sockets and integrated circuit protection, it provides a reliable and safe solution for temporary power distribution.
Technical Specifications
Protection Level
IP44
- Model Number
- PXH011204
- Rated Current
- 63 A
- Enclosure Material
- ABS Engineering Plastic

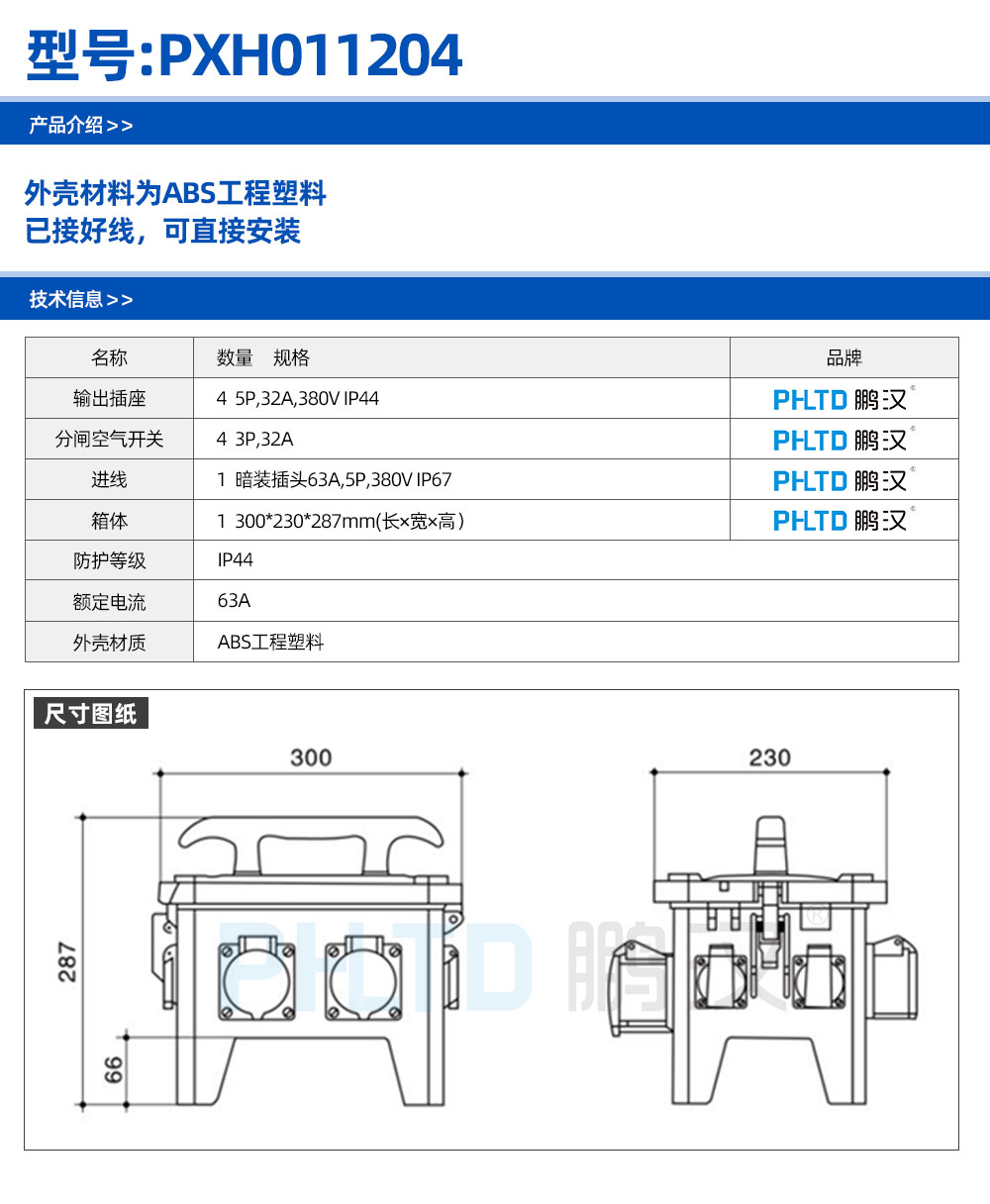

Dimensions
- Dimensions (L x W x H)
- 300mm x 230mm x 287mm
Components
Integrated Components
| Component | Quantity | Specifications |
|---|---|---|
| Output Sockets | 4 | 5P, 32A, 380V, IP44 |
| Branch Air Switches | 4 | 3P, 32A |
| Concealed Plug Inlet | 1 | 63A, 5P, 380V, IP67 |
