Technical Specifications
Product Overview
High-Performance Industrial LED Indicators
The AD22-30DS series represents a significant advancement over traditional incandescent and neon lamps, utilizing high-brightness LED chips for superior visibility and reliability. These indicators are designed for long-life operation with low power consumption, making them ideal for demanding industrial environments. Featuring a robust polycarbonate lampshade with enhanced anti-surge performance, they provide clear signaling for power, telecommunications, and heavy machinery applications.
Technical Performance
Key Performance Metrics
20 mA
Max Current Draw
2.5 kV
Dielectric Strength
2 MΩ
Insulation Resistance

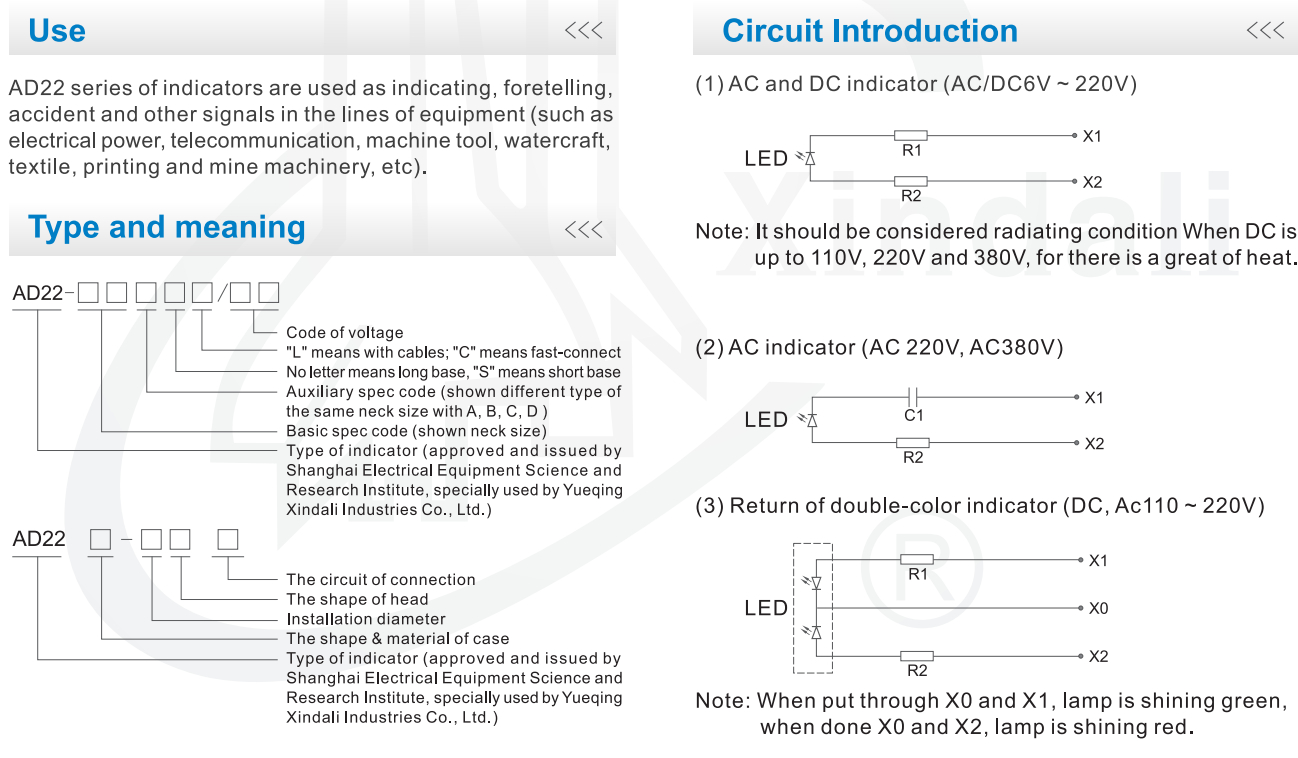

Electrical Specifications
- Available Operating Voltages
- 24V AC/DC36V AC/DC48V AC/DC110V AC/DC220V AC380V AC
- Voltage Fluctuation Tolerance
- ±20%

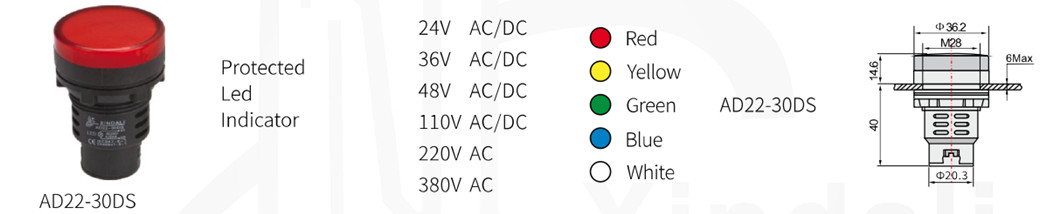

Physical Dimensions
Size Specifications
| Parameter | Measurement |
|---|---|
| Head Diameter | 36.2mm |
| Mounting Hole (Neck Size) | M28 |
| Base Diameter | 20.3mm |
| Height Above Panel | 14.6mm |
| Max Panel Thickness | 6mm |
Design & Materials
Available Colors
RedYellowGreenBlueWhite
Material Characteristics
- High-intensity polycarbonate lampshade
- Enhanced anti-surge performance
- Secure bolt-type connectors
- Lightweight and compact volume
Applications
Target Industries
- Electrical Power Distribution
- Telecommunications Equipment
- Machine Tools & CNC
- Watercraft & Marine Systems
- Textile & Printing Machinery
- Mining Operations
Compliance
- International Standards
- IEC 60947-5-1EN 60947-5-1
