Technical Specifications
Overview
Multifunctional Mixing Solution

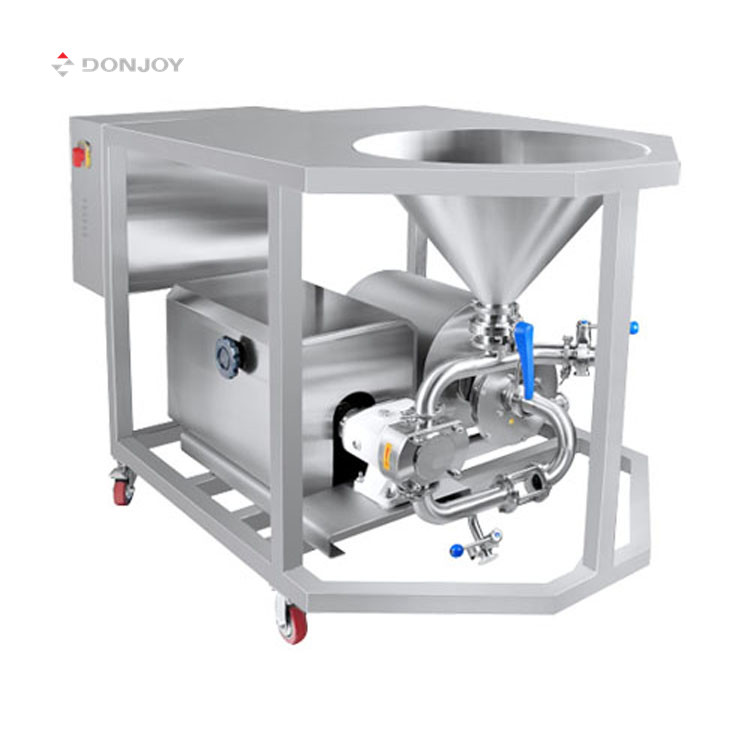

The PM series is a high-performance material-liquid mixing pump designed to streamline complex processing tasks. It integrates mixing, shearing, emulsifying, homogenizing, and refining into a single, efficient unit. By replacing traditional, multi-step production processes, this system significantly enhances production efficiency while ensuring superior material quality across food, beverage, pharmaceutical, and industrial applications.
Performance Metrics
Processing Capacity
9,000 KG/h
Powder Processing
3,000 KG/h
Thickener Processing
- Maximum Operating Temperature
- 130 °C
Construction & Materials
Surface Treatment Options
Ra ≤ 0.8μmRa ≤ 0.6μmRa ≤ 0.4μm
- Construction Materials
- 304316L1.4311.4404ASME BPE 316L1.4435 NB2
Mechanical Specifications
Seal Options
- Single machine seal
- Double machine seal
Inlet/Outlet Connections
- Thread
- Clamp
- Flange
- Sterile flange
Compliance & Certification
Regulatory Compliance
| Standard/Certification | Reference |
|---|---|
| 3-A-02-10 | N.O.1579 |
| MD/06/42-EC | N.O.70521616101-00 |
| FDA | 177.2600 |
| USP | CLASS-II |
| EU | EG/VO1935/2004 |
