Industrial Belt Conveyor System
Belt conveyors link production equipment to ensure continuous and automated processes. They are used to transport loose materials or finished items in industries like crushing, handling ores such as limestone, dolomite, and gypsum.
Technical Specifications
Overview
High-Efficiency Industrial Conveying
This industrial belt conveyor system serves as a vital link in production lines, ensuring continuous automation for material handling. Specifically designed for the crushing and mining industries, it efficiently transports loose materials and finished items across various terrains. The system is engineered for high adaptability, supporting both horizontal and inclined layouts to meet diverse operational requirements.
Technical Capabilities
Operating Conditions
- Ambient temperature range: -20°C to +60°C
- Maximum material temperature: 50°C
- Supports single or multi-unit configurations
- Horizontal or inclined transport systems
- Suitable Materials
- LimestoneCalciteDolomiteBariteTalcCalcium CarbonateGypsumBentoniteGlass
Design & Construction
System Components
- High-quality steel fuselage
- Heavy-duty conveyor belt
- Belt rollers and idlers
- Tensioning device
- Transmission device (Reduction motor or Electric drum)
Anti-Slip Design
To prevent slippage between specific materials and the belt, a 'herringbone' pattern belt option is available to enhance operational stability and grip.
Technical Specifications
System Performance
| Belt Width (mm) | Belt Speed (m/s) | Capacity (t/h) |
|---|---|---|
| 400 | 1.3 - 1.6 | 30 - 60 |
| 500 | 1.3 - 1.6 | 40 - 80 |
| 650 | 1.3 - 1.6 | 50 - 100 |
| 800 | 1.3 - 1.6 | 80 - 180 |
| 1000 | 1.3 - 2.0 | 150 - 300 |
| 1200 | 1.3 - 2.0 | 200 - 400 |
| 1400 | 1.3 - 2.0 | 300 - 600 |
Power Rating Range
- Belt Width Options
- B400B500B650B800B1000B1200B1400
Safety & Compliance
Safety Features
- Emergency stop mechanisms
- Belt alignment sensors
- Protective guards

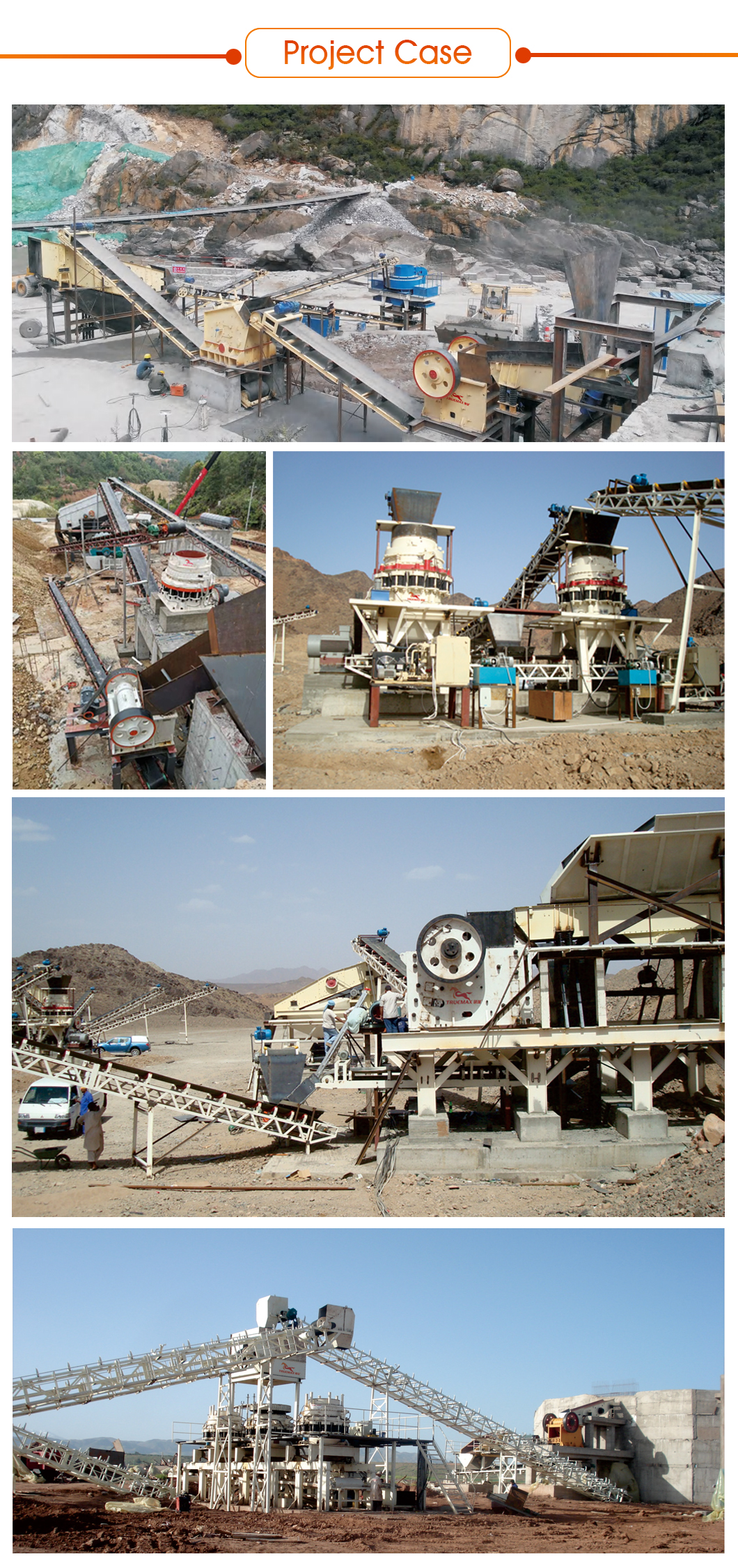

Project Applications
Target Industries
