Industrial Ball Mill for Grinding Materials
The ball mill is a key machine for grinding crushed materials in various production lines. It is widely applicable in cement, silicate, new building materials, refractory materials, fertilizer, and ore dressing.
Technical Specifications
Product Overview
High-Efficiency Industrial Grinding

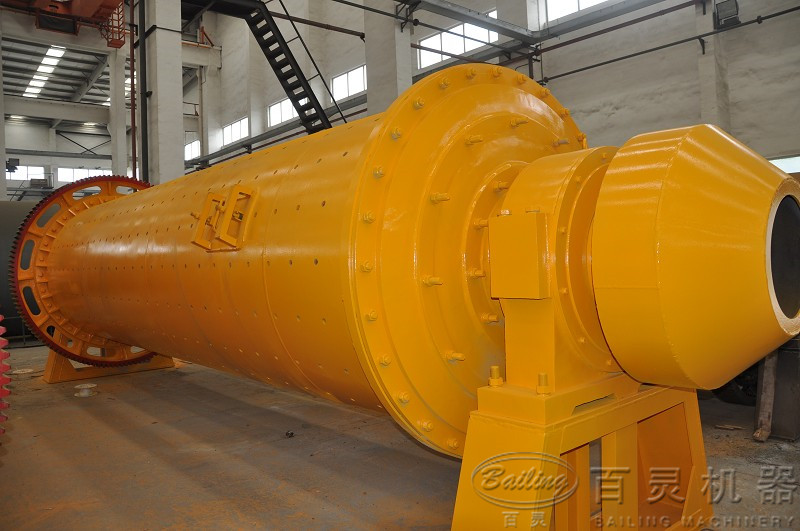

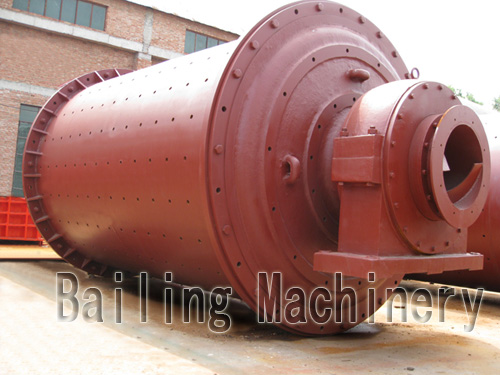

This industrial ball mill is a robust horizontal rotating device designed for the fine grinding of various materials. Utilizing a combination of impact and attrition, it effectively processes ores, minerals, and raw materials into fine powders. It supports both dry and wet grinding methods, making it a versatile solution for diverse industrial production lines.
- Suitable Industries
- CementSilicateBuilding MaterialsRefractory MaterialsFertilizerOre DressingGlass Ceramics
Technical Specifications
Grinding Type
DryWet
Discharge Type
Grate typeOverfall type
Detailed Model Specifications
| Model | Speed (r/min) | Ball Charge (t) | Power (kw) | Weight (t) |
|---|---|---|---|---|
| Φ900×1800 | 38 | 1.5 | 18.5 | 4.3 |
| Φ1200×2400 | 36 | 3 | 30 | 11.4 |
| Φ1500×3000 | 29.7 | 7.5 | 75 | 14.8 |
| Φ1830×4500 | 25.4 | 15 | 155 | 30.4 |
| Φ2100×4500 | 23.7 | 24 | 245 | 40 |
| Φ2400×4500 | 21 | 30 | 320 | 64.7 |
| Φ3600×4500 | 17.8 | 88 | 1250 | 165 |
Design & Operation
Internal Lining Types
- Ladder liner
- Ripple liner
- Drive Mechanism
- Horizontal rotating device transmitted by outer gear
