Overview
Industrial Automation Servo Motor
The VASM8001 is a high-performance servo motor specifically engineered for demanding industrial automation and robotics applications. It features a robust construction with an IP54 safety rating, ensuring reliability in complex operational environments. Designed for precision, this motor offers exceptional speed control and positioning capabilities, supported by integrated cabling and a secure keyed shaft coupling.

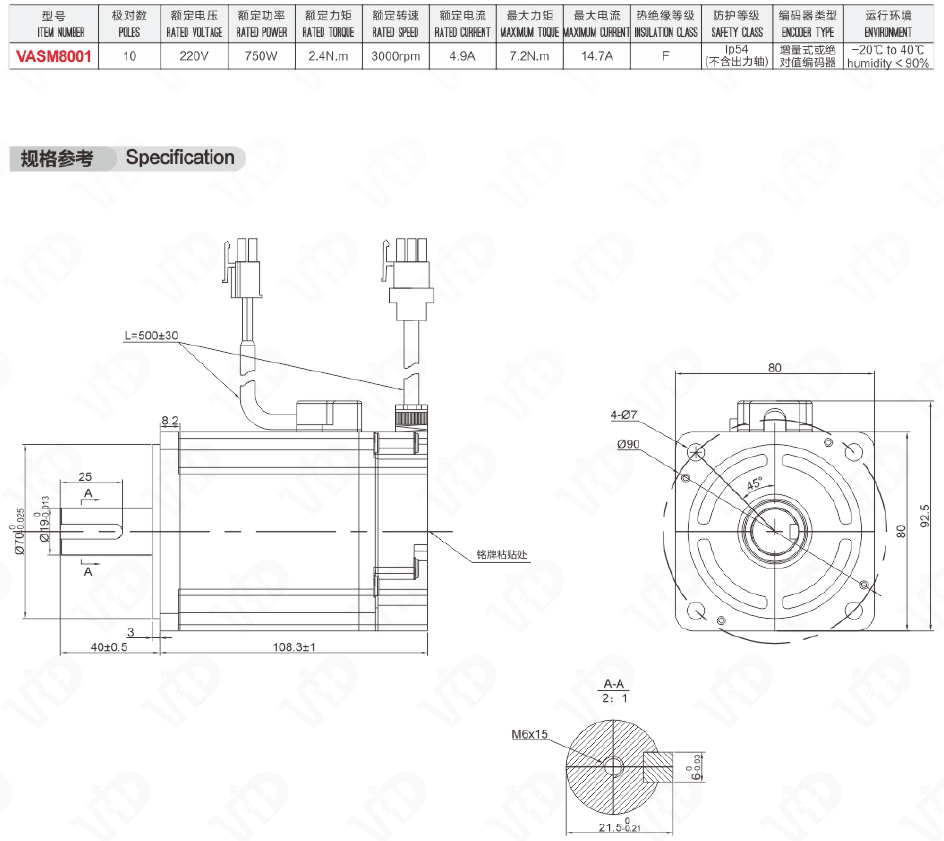

Technical Specifications
Performance Metrics
750 W
Rated Power
3,000 rpm
Rated Speed
2.4 N.m
Rated Torque
7.2 N.m
Max Torque
Electrical Ratings
| Parameter | Value |
|---|---|
| Rated Voltage | 220V |
| Rated Current | 4.9A |
| Maximum Current | 14.7A |
| Poles | 10 |
Operating Conditions
- Temperature Range: -20°C to 40°C
- Humidity: < 90%
- Insulation Class: F
- Safety Class: IP54 (excluding output shaft)
Encoder Compatibility
IncrementalAbsolute
