Industrial AC Motor
This AC motor is designed for efficient and reliable power in industrial settings. Its robust construction ensures optimal performance and longevity.
Technical Specifications
Overview

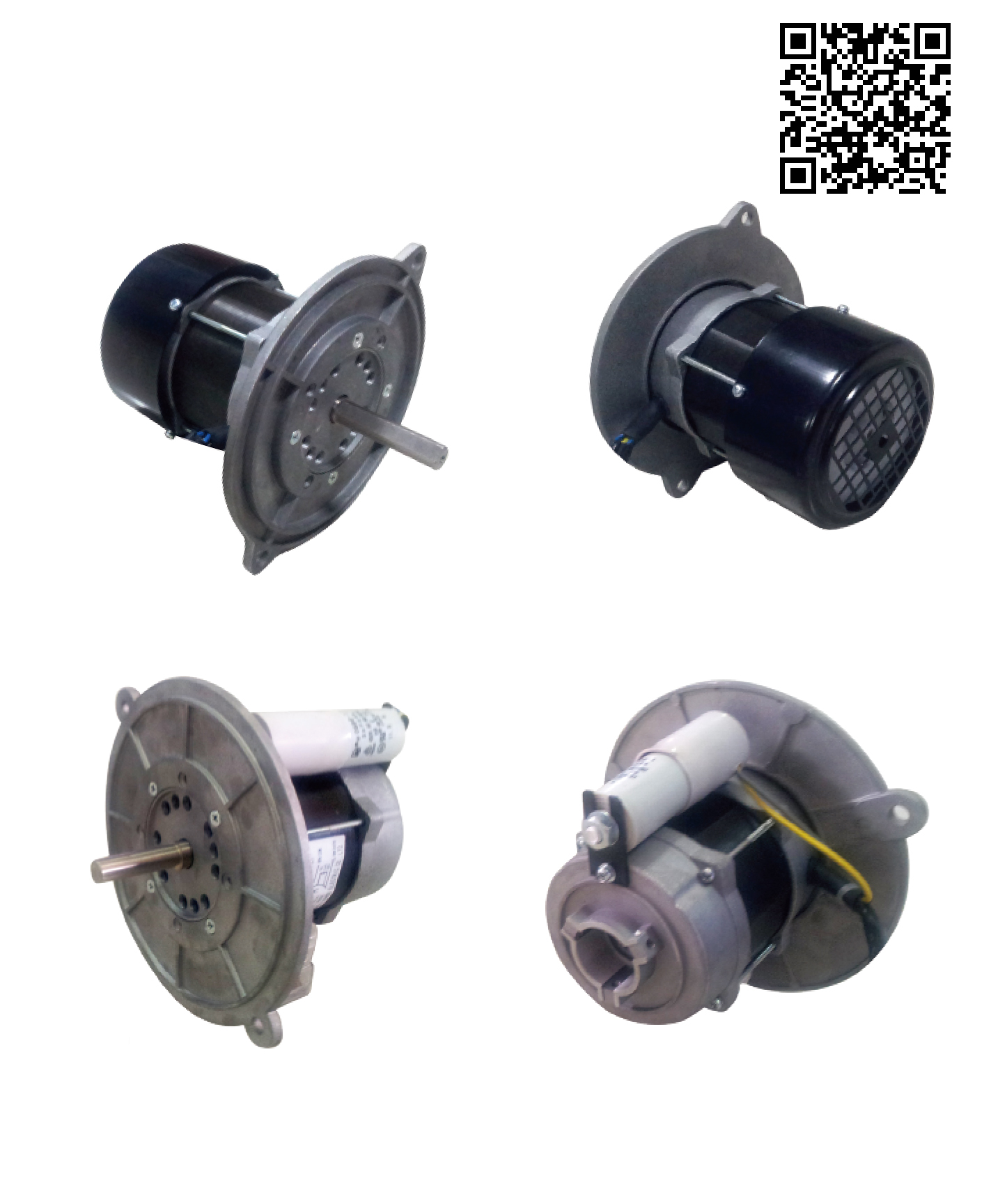

Industrial AC Motor Series
These high-performance single-phase AC motors are engineered for demanding industrial applications, including oil and gas burners, pumps, blenders, and various packing or welding machinery. Designed with durability in mind, they feature robust construction, ball bearings, and Class F insulation for reliable operation. Each unit includes an automatic reset thermal overload protector to ensure safety and longevity in continuous use environments.
Technical Specifications
Power Output Range
100 W
Minimum Power
370 W
Maximum Power
Electrical Properties
- Voltage: 220V
- Frequency: 50Hz
- Permanent Split Capacitor
- Insulation Class: F
- Key Features
- Single PhaseAutomatic Reset Thermal Overload ProtectorBall BearingQuiet OperationHigh Efficiency
Model Variants
Available Models
| Catalog No. | Power (W) | RPM | Capacitor |
|---|---|---|---|
| YDK90-100-2D1 | 100 | 2,750 | 4uF/450V |
| YDK90-150-2D1 | 150 | 2,750 | 5uF/450V |
| YDK90-200-2D | 200 | 3,400 | 5uF/450V |
| YDK90-250-2D | 250 | 2,750 | 8uF/450V |
| YDK90-250-2D1 | 250 | 2,800 | 8uF/450V |
| YDK90-370-2D | 370 | 2,800 | 15uF/450V |
