Industrial 8-Port PoE Ethernet Switch with Uplink
This industrial Ethernet switch features 8 100Base T(X) PoE ports and one 100Base TX uplink port. The PoE Ethernet ports are fully compliant with IEEE802.3af/at standards, providing up to 30W per port.
Technical Specifications
Overview
Industrial-Grade Connectivity

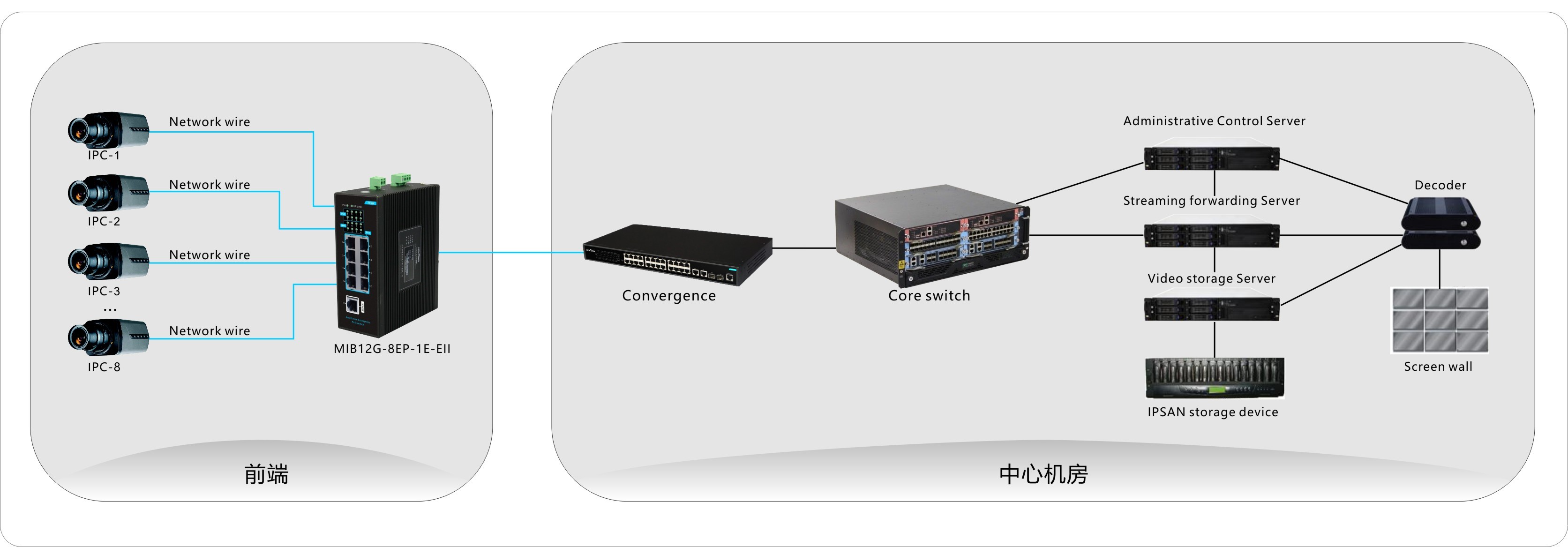

This unmanaged industrial PoE Ethernet switch is designed for high-reliability applications in demanding environments. Featuring 8 PoE-enabled ports compliant with IEEE802.3af/at standards, it delivers up to 30W per port for devices like IP cameras and wireless access points. Its fanless, corrugated metal design ensures efficient heat dissipation and IP40-rated protection, making it ideal for outdoor surveillance, rail traffic, and industrial automation.
Performance
- Switching Bandwidth
- 1.6 Gbps
- Packet Forwarding Speed
- 1.2 Mpps
- MAC Address Table
- 1 K
- Buffer Memory
- 512 KB
PoE Features
PoE Performance
8 ports
PoE Ports
30 W
Max Power Per Port
- Supported Standards
- IEEE 802.3afIEEE 802.3at
Physical & Environmental
Protection Grade
IP40
- Operating Temperature
- -40℃ to +85℃

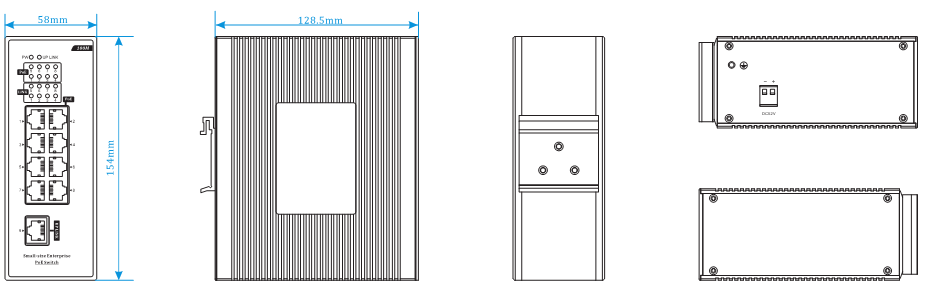

- Dimensions (L*W*H)
- 154 * 128.5 * 59 mm
- Weight
- 0.6 kg
Compliance
EMC Standards Table
| Standard | Type |
|---|---|
| EN61000-4-2 | ESD Level 4 |
| EN61000-4-3 | RS Level 3 |
| EN61000-4-4 | EFT Level 4 |
| EN61000-4-5 | Surge Level 4 |
| EN61000-4-6 | CS Level 3 |
- Certifications & Compliance
- CEFCCRoHSEMI Class A
