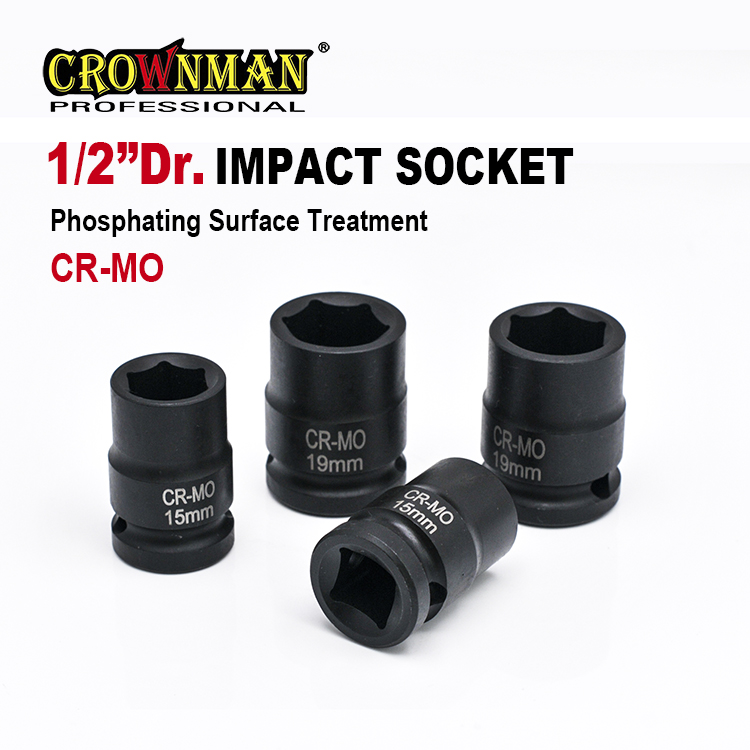

Impact Socket CR-MO
This impact socket is made from CR-MO steel for wear resistance and durability at higher working temperatures. Its 6-point opening and high-torque design is suitable for use with impact drivers.
Technical Specifications
Overview

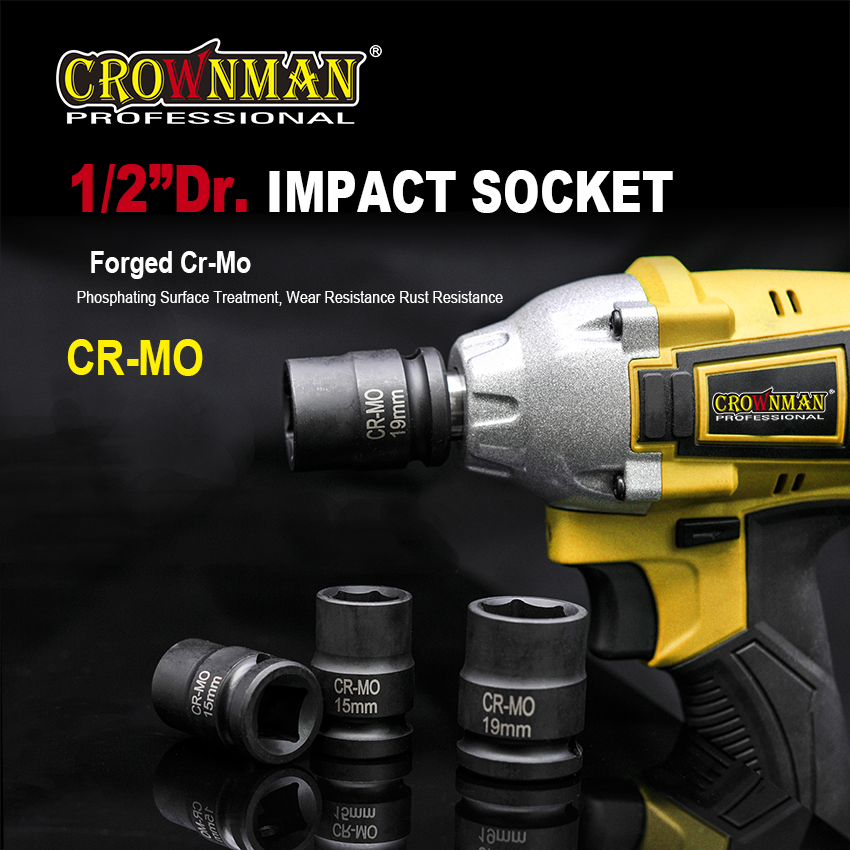

Professional Grade CR-MO Impact Sockets
These high-performance impact sockets are forged from Chromium-Molybdenum (CR-MO) steel, engineered specifically for heavy-duty use with impact drivers and pneumatic tools. The hexagonal driving design features an inner arc to increase tightening force while reducing resistance, ensuring fasteners are gripped securely on their flat sides to prevent rounding. With a black phosphating surface treatment for superior rust and wear resistance, these sockets are built for longevity in demanding mechanical environments.
Key Features
- Material & Build
- Forged CR-MO SteelHigh TorqueImpact ResistantWear ResistantRust Resistant
Technical Specifications
Drive Size
0.5 inch
Drive Size
Socket Design
- 6-Point opening
- Hexagonal driving design
- Inner arc driving for anti-resistance
- Streamlined torque delivery
- Surface Treatment
- Black Phosphating
Size Chart
Available Sizes and Dimensions
| Size (mm) | Length (mm) | D1 Max (mm) | D2 Max (mm) |
|---|---|---|---|
| 8 | 38.5 | 15 | 25 |
| 10 | 38.5 | 17.5 | 25 |
| 12 | 38.5 | 18 | 25 |
| 13 | 38.5 | 20 | 25 |
| 15 | 38.5 | 23 | 25 |
| 17 | 38.5 | 26 | 30 |
| 19 | 38.5 | 28 | 30 |
| 21 | 38.5 | 30 | 30 |
| 24 | 39.5 | 33.8 | 30 |
| 30 | 44 | 42 | 30.5 |
| 32 | 44 | 42 | 32.5 |
Applications
Compatible Tools
Impact DriversPneumatic ToolsPower ToolsHand Ratchet Spanners
Primary Use Cases
- Automotive Maintenance
- Bicycle Repair
- Mechanical Maintenance
- Industrial Fastening
