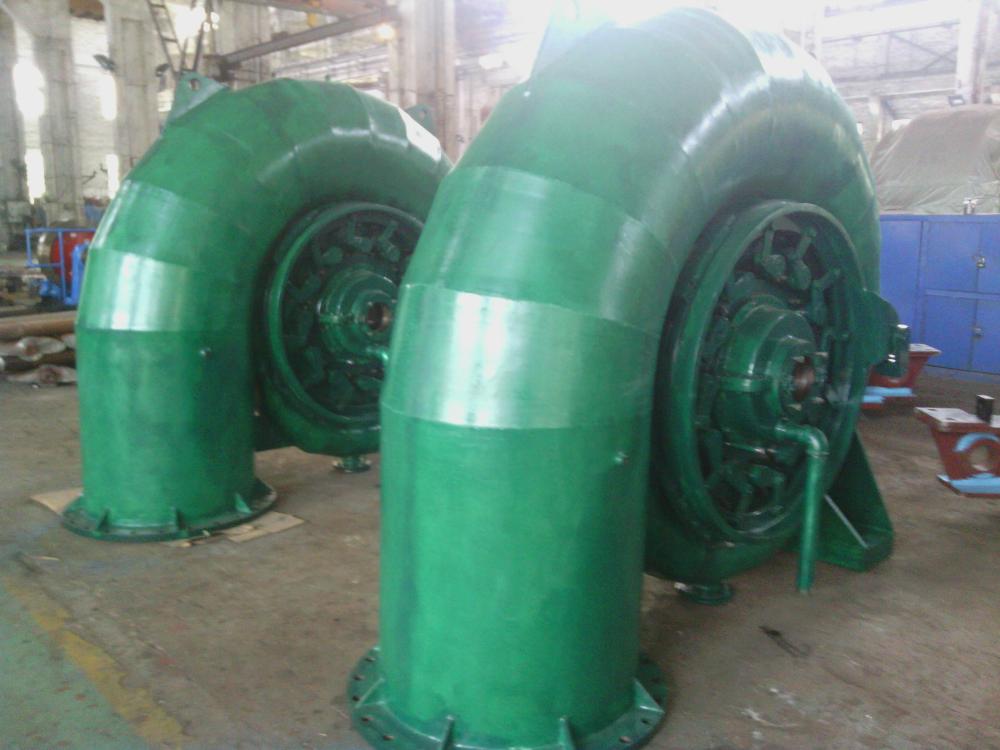

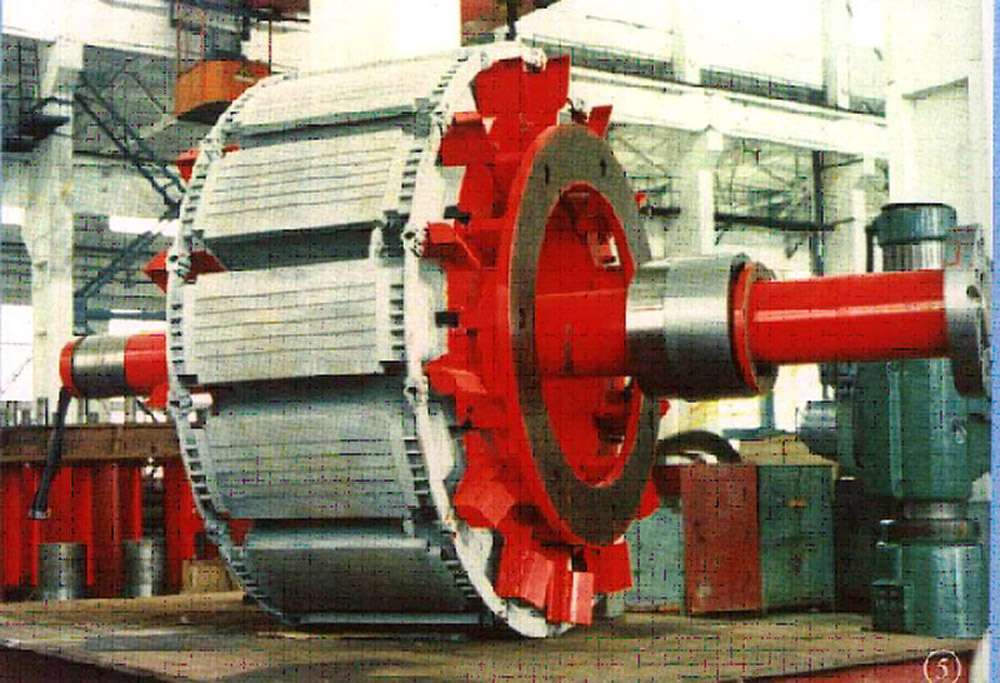

Hydroelectric Turbine Generator
This hydroelectric turbine generator converts water's kinetic energy into mechanical energy. It is designed for efficient and reliable power generation in hydroelectric power plants.
Technical Specifications
Product Overview
High-Performance Hydroelectric Power Solutions
These hydroelectric turbine generator units are engineered for reliable, high-capacity power generation in diverse hydropower station environments. The product line includes multiple turbine configurations, including Pelton, Francis, Axial, and Tubular designs, ensuring compatibility with varying water flow and head requirements. Each unit is supported by essential auxiliary equipment, such as valve units and excitation devices, to provide a complete, integrated power generation system.
Technical Specifications
Turbine Configuration Capabilities
| Turbine Type | Runner Diameter Range | Max Capacity |
|---|---|---|
| Pelton | 0.32m - 2.75m | Up to 30MW |
| Francis | 0.42m - 5.0m | Up to 100MW |
| Axial | 0.80m - 8.0m | Up to 50MW |
| Tubular | 1.80m - 8.0m | Up to 100MW |
- Available Turbine Types
- PeltonFrancisAxialTubular
Auxiliary Equipment
Included Auxiliary Systems
- Valve units
- Excitation devices
- Metal support structures
