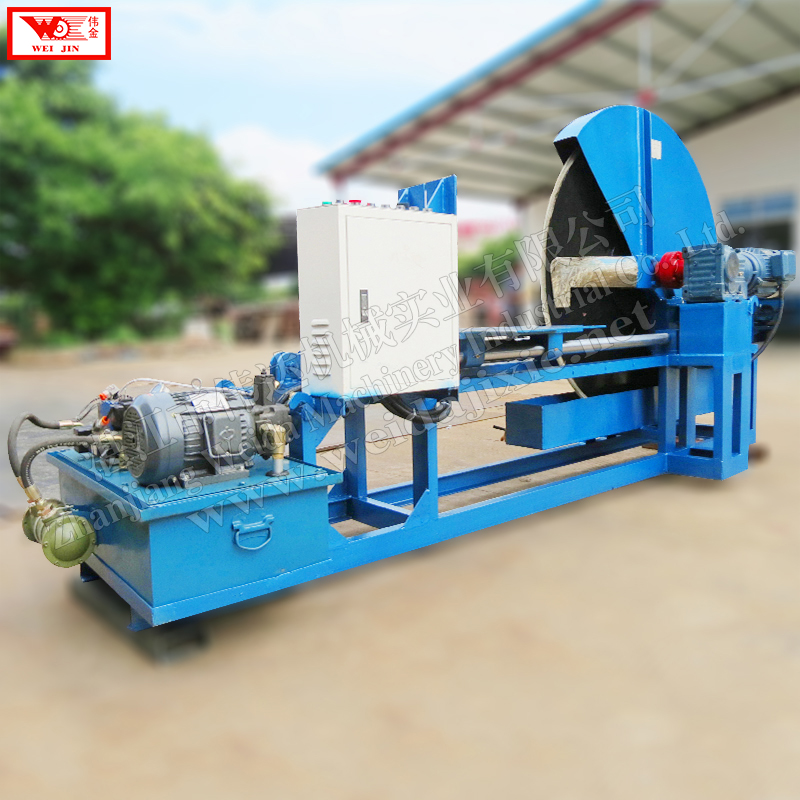

Hydraulic Rubber Block Cutter with Rotating Disc
This rotating-disc cutting machine is designed for processing various types of rubber, including natural, reclaimed, and synthetic. It efficiently cuts rubber blocks into smaller blocks, slices, granules, and bars.
Technical Specifications
Overview
High-Efficiency Rotating-Disc Rubber Cutter
This hydraulic rotating-disc cutting machine is a versatile solution designed for processing natural, compound, reclaimed, and synthetic rubber. It efficiently cuts large rubber blocks into smaller blocks, slices, granules, or bars, and is also suitable for various other materials. By utilizing a rotating blade and a reciprocating worktable, it ensures precise and consistent cutting performance for industrial rubber processing.
Key Features
Main Features
- Rotating-disc cutting mechanism for high efficiency
- Hydraulic system for powerful and consistent cutting action
- Reciprocating worktable for automated material movement
- Self-lubricating moving parts to reduce friction and extend service life
- Integrated water box for cooling and lubrication during operation
- Robust steel frame and rack for maximum stability
Performance Metrics
Performance Highlights
Technical Specifications
Model Comparison
| Model | Blade Diameter (mm) | Power (kw) | Production Capacity (t/h) |
|---|---|---|---|
| WQJ-1000 | 1,000 | 4+2.2 | 2 |
| WQJ-1300 | 1,300 | 4+2.2 | 3 |
Material Compatibility
- Compatible Materials
- Natural RubberCompound RubberReclaimed RubberSynthetic RubberPlastic Materials
Operational Components

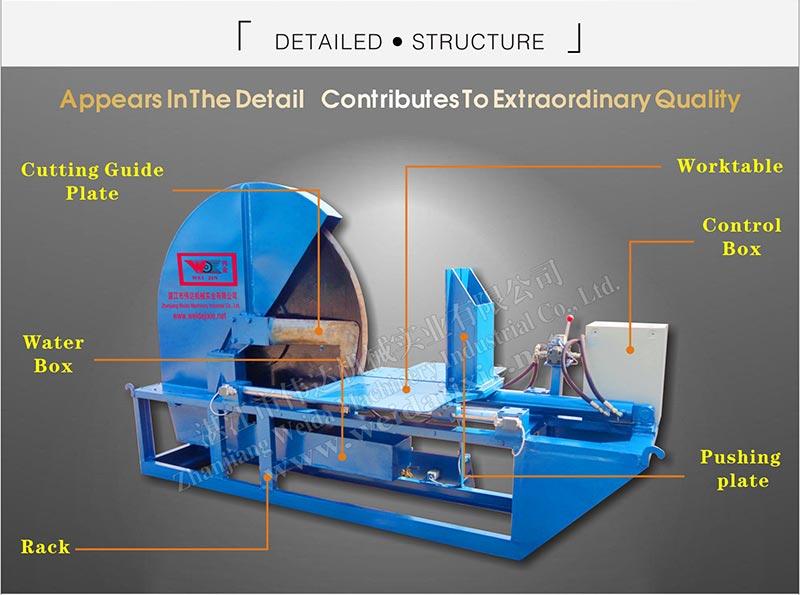

Machine Components
- Cutting Guide Plate
- Pushing Plate
- Worktable
- Water Box
- Control Box
- Heavy-duty Rack
Logistics & Support
Setup and Service
The machine is delivered as a complete unit and typically does not require a technician for installation; users simply need to fix the unit to the ground and connect it to power. The main structure and equipment are covered by a 1-year warranty (excluding fragile parts). Technical support and repair plans are provided within 12 hours of feedback.
