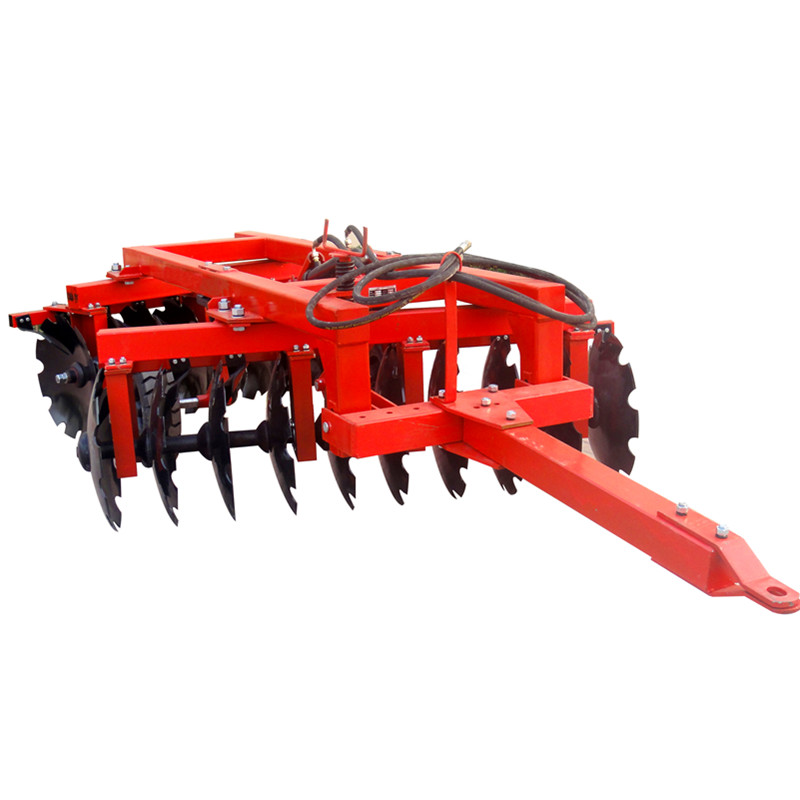

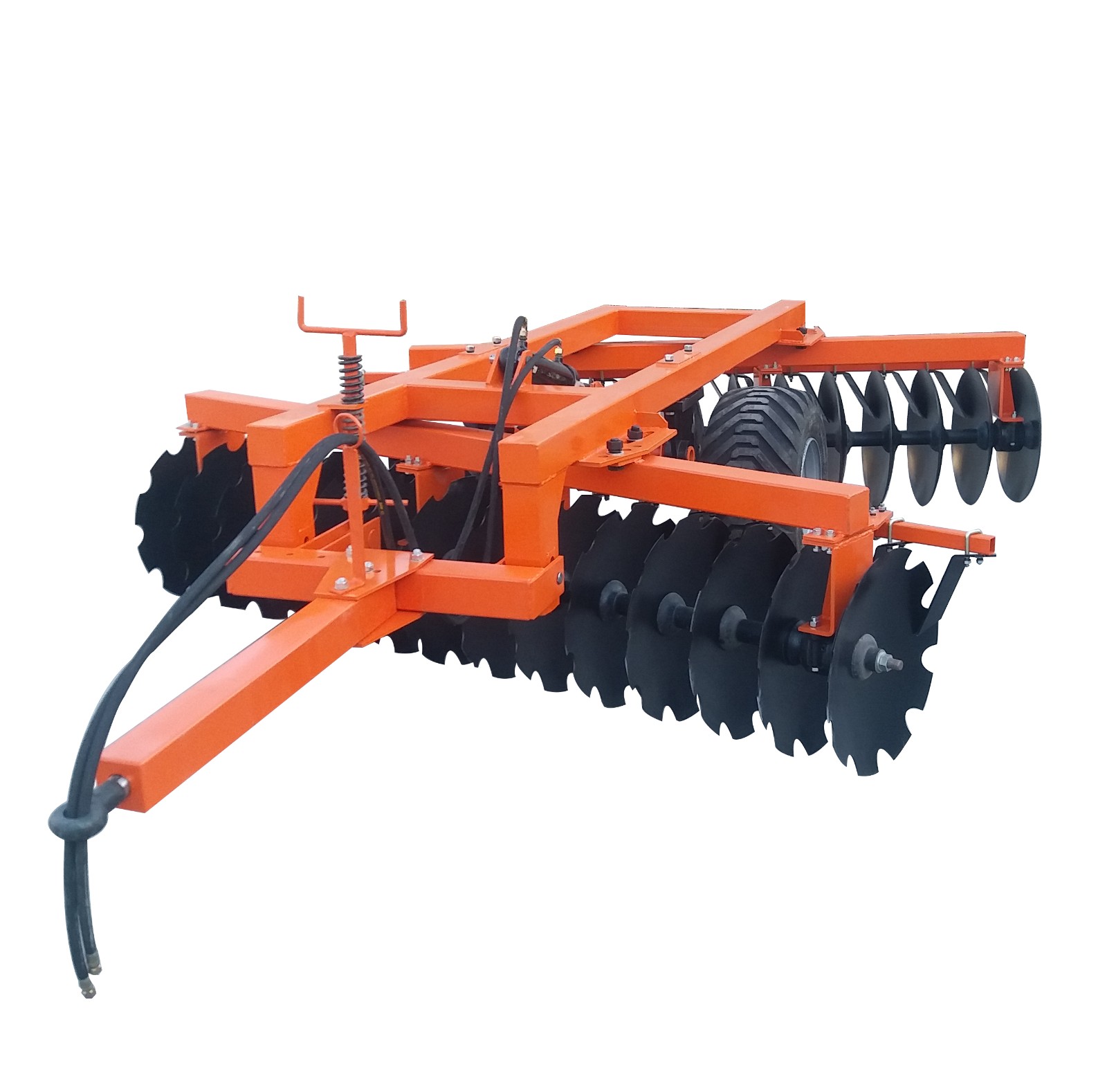

Hydraulic Offset Heavy Disc Harrow for Farm Tillage
This hydraulic offset heavy disc harrow is designed for efficient soil preparation and cultivation. It features heavy-duty discs arranged in an offset configuration, providing aggressive cutting and mixing of soil.
Technical Specifications
Overview
High-Performance Hydraulic Offset Disc Harrow
The 1BZ series heavy-duty hydraulic offset disc harrow is engineered for demanding agricultural tasks, including primary tillage, stubble cleaning, and soil leveling. Designed for heavy clay, waste land, and weedy fields, it effectively breaks hardened soil and incorporates crop residue for improved soil health. With its robust construction and versatile hydraulic system, this machine offers a durable solution for large-scale farming operations requiring precision and reliability.
Technical Specifications
Key Performance Metrics
1,800 mm
Min Working Width
5,300 mm
Max Working Width
200 mm
Working Depth
180 hp
Max Power Required
Model Specifications
| Model | Width (mm) | Discs (Qty) | Weight (kg) | Power (hp) |
|---|---|---|---|---|
| 1BZ-1.8 | 1,800 | 16 | 1,160 | 70 |
| 1BZ-2.2 | 2,200 | 20 | 1,250 | 80 |
| 1BZ-2.5 | 2,500 | 24 | 1,350 | 90 |
| 1BZ-3.0 | 3,000 | 28 | 1,430 | 100 |
| 1BZ-3.4 | 3,400 | 32 | 1,550 | 120 |
| 1BZ-4.0 | 4,000 | 36 | 1,900 | 150 |
| 1BZ-5.3 | 5,300 | 48 | 2,500 | 180 |
Design & Features
Core Features
- Hydraulic system for easy transport wheel operation
- Difunctional oil cylinder for precise control
- Trailed linkage system (38mm hole diameter)
- 1/2 inch thread oil connection
- Heavy-duty frame for long service life
- Suitable Applications
- Heavy clay soilWaste landWeedy fieldsStubble cleaningPrimary tillage
