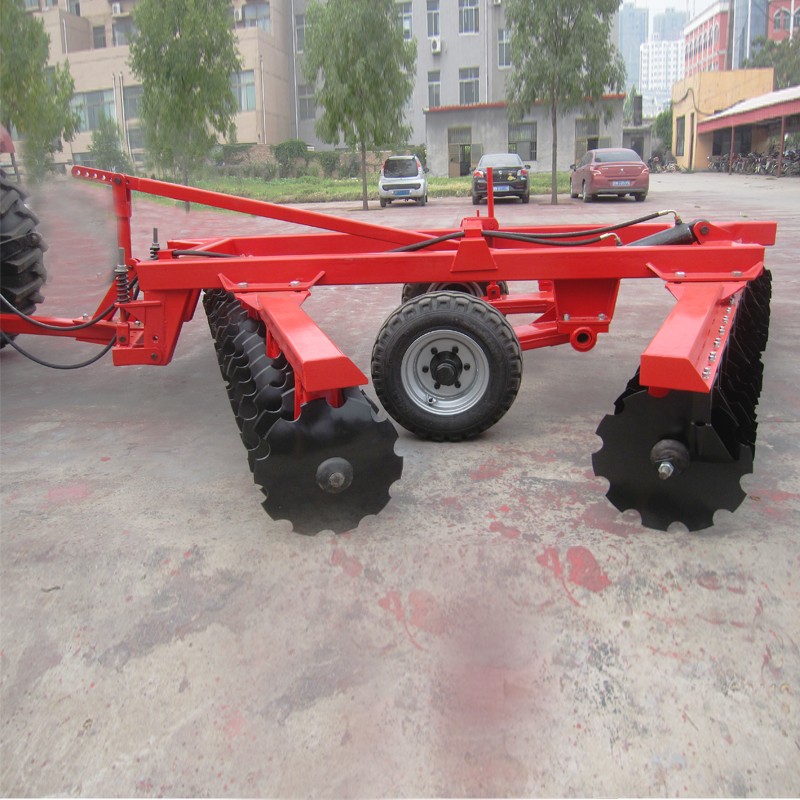

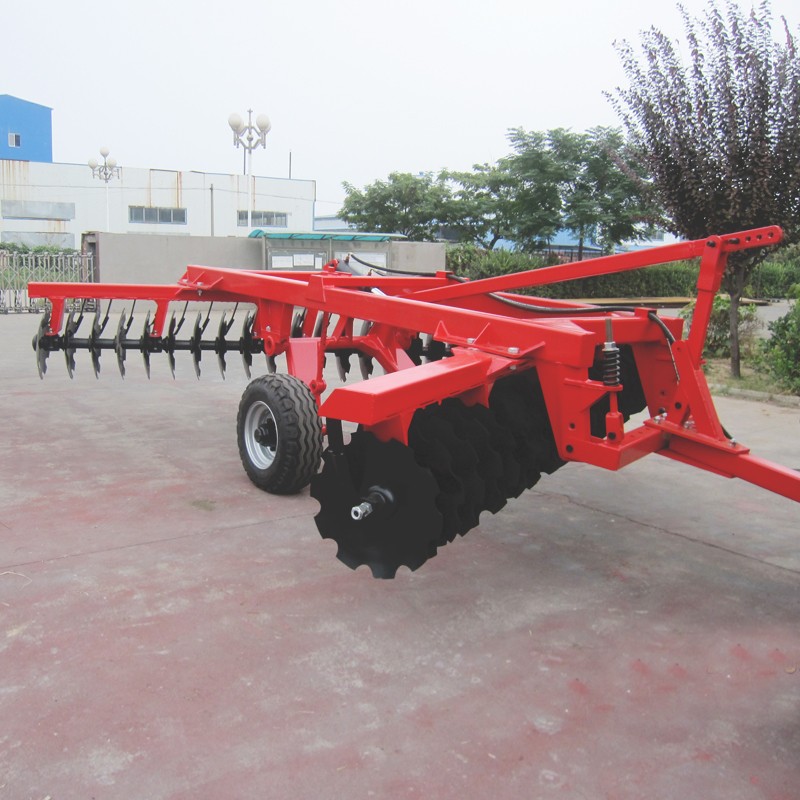

Hydraulic Offset Disc Harrow
This hydraulic offset disc harrow ensures a smooth surface and loose soil after operation. Its design provides strong adaptability in fields with heavy soil, wasteland, and weeds.
Technical Specifications
Product Overview
High-Efficiency Soil Preparation

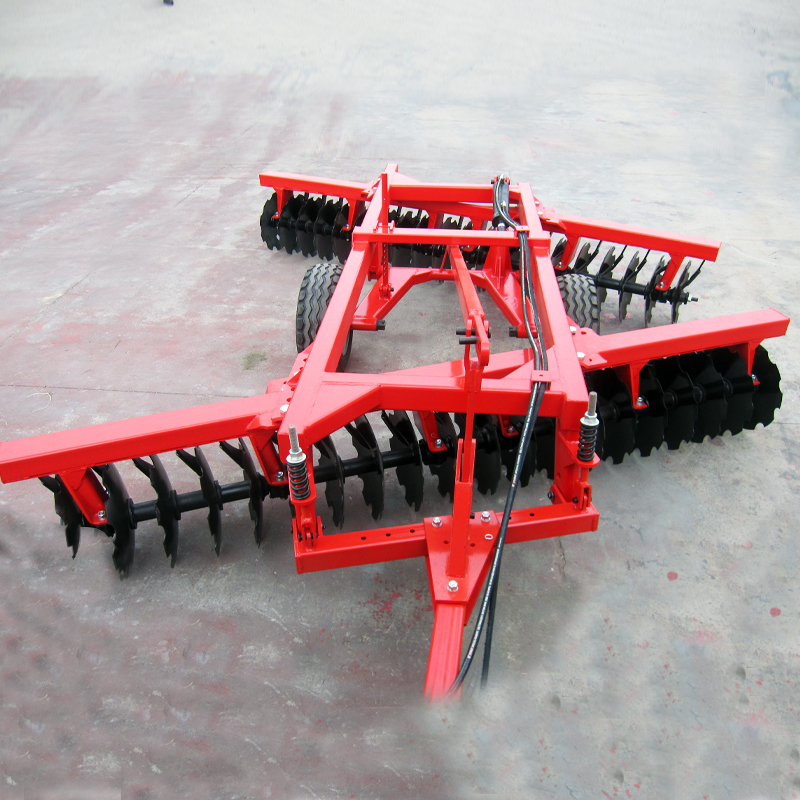

The 1BZY Hydraulic Offset Heavy Disc Harrow is a robust agricultural implement designed for superior soil breaking and leveling. It excels in challenging conditions including heavy soil, wasteland, and weed-heavy fields, ensuring a smooth surface and loose soil structure after operation. This traction-type harrow optimizes power utilization and work efficiency for professional farming applications.
Key Performance Metrics
Performance Highlights
1,800 mm
Min Working Width
2,500 mm
Max Working Width
220 mm
Max Working Depth
Technical Specifications
Model Specifications Comparison
| Model | Discs (Qty) | Disc Size (mm) | Width (mm) | Weight (kg) | Tractor (HP) |
|---|---|---|---|---|---|
| 1BZY-1.8 | 16 | 610x6 | 1,800 | 1,420 | 70-85 |
| 1BZY-2.0 | 18 | 660x6 | 2,000 | 1,580 | 85-100 |
| 1BZY-2.2 | 20 | 660x6 | 2,200 | 1,660 | 100-120 |
| 1BZY-2.5 | 24 | 660x6 | 2,500 | 2,100 | 125-150 |
Design & Construction
Core Features
- Hydraulic pressure offset system
- Heavy-duty steel frame construction
- Independently rotating discs
- Trailing wheel for depth control
- Adjustable disc angles
- Bearing Assembly Type
- Grease BathOil Bath
Applications
Primary Applications
Soil TillingBreaking ClodsCrop Residue IncorporationWasteland ReclamationSeedbed Preparation
Operational Requirements
- Matched Tractor Power Range
- 70 - 150 HP (depending on model)
