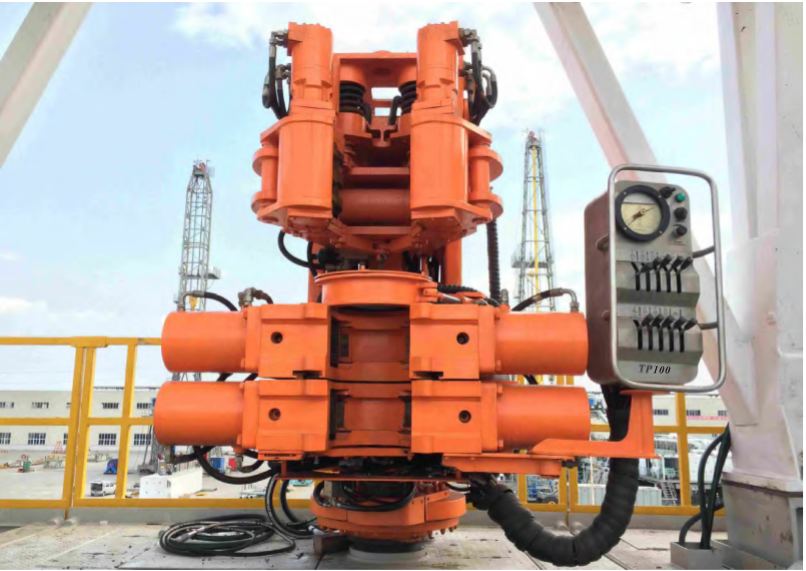

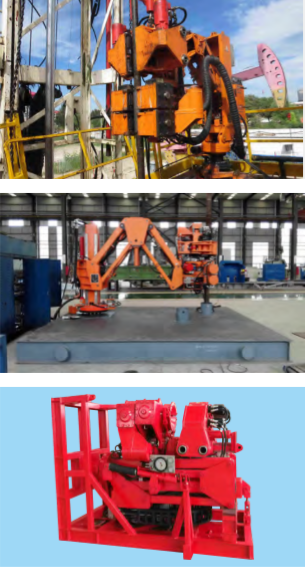

Hydraulic Iron Roughneck for Drilling Rigs
This hydraulic iron roughneck provides high accuracy positioning and smooth operation using a fuzzy control algorithm. The system dynamically adjusts the clamping force to reduce damage to tubular tools.
Technical Specifications
Overview
Automated Pipe Handling Solution
This hydraulic iron roughneck is designed for high-accuracy positioning and smooth operation on drilling rigs, utilizing a fuzzy control algorithm for precision. The system features a streamlined, multi-axis linkage design that enables one-key positioning and efficient make-up and break-out operations. With modular construction and remote operation capabilities, it enhances safety by keeping personnel away from hazardous zones while minimizing tool damage through dynamic clamping force adjustments.
Key Features
- Operational Capabilities
- One-key positioningOne-key make-up & break-outDynamic clamping force adjustmentParameter recordingRemote operationWireless remote controlUnmanned centralizingInterlock protection
Technical Specifications

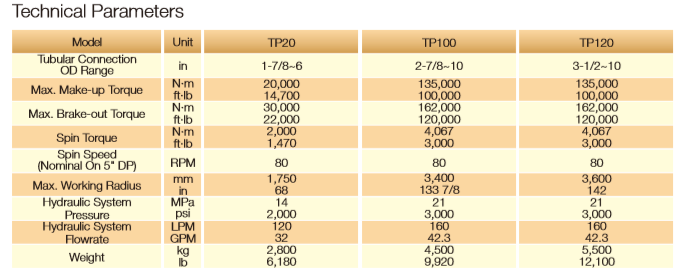

Technical Parameters by Model
| Parameter | TP20 | TP100 | TP120 |
|---|---|---|---|
| Tubular Connection OD Range (in) | 1-7/8~6 | 2-7/8~10 | 3-1/2~10 |
| Max. Make-up Torque (N-m) | 20,000 | 135,000 | 135,000 |
| Max. Brake-out Torque (N-m) | 30,000 | 162,000 | 162,000 |
| Spin Torque (N-m) | 2,000 | 4,067 | 4,067 |
| Spin Speed (RPM) | 80 | 80 | 80 |
| Max. Working Radius (mm) | 1,750 | 3,400 | 3,600 |
| Hydraulic Pressure (MPa) | 14 | 21 | 21 |
| Hydraulic Flowrate (LPM) | 120 | 160 | 160 |
| Weight (kg) | 2,800 | 4,500 | 5,500 |
Performance Metrics
Efficiency Highlights
60 degrees
Torque Wrench Rotation
1 time
Make-up & Break-out Cycle
